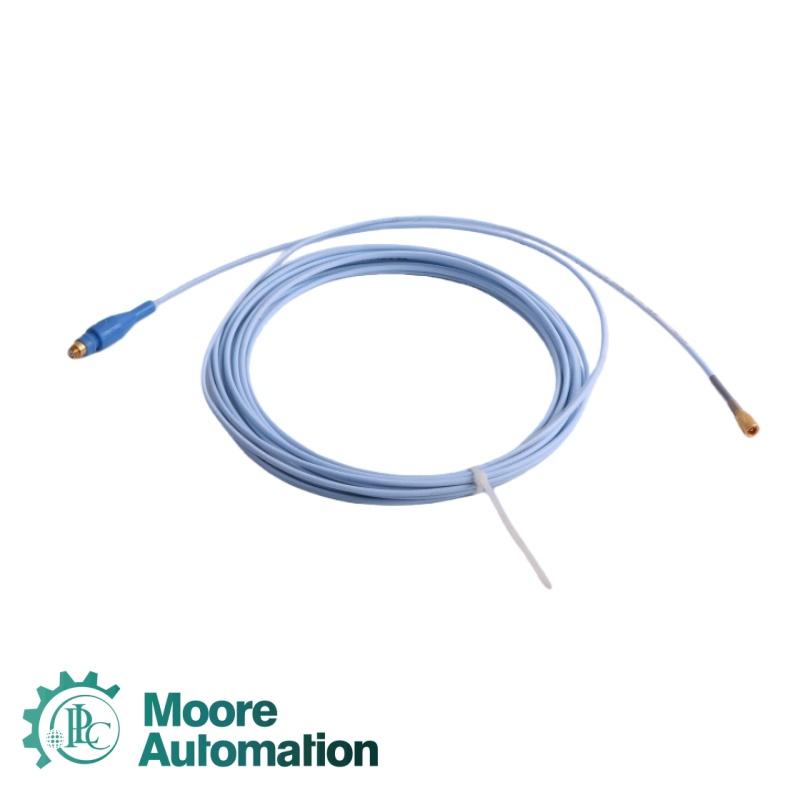

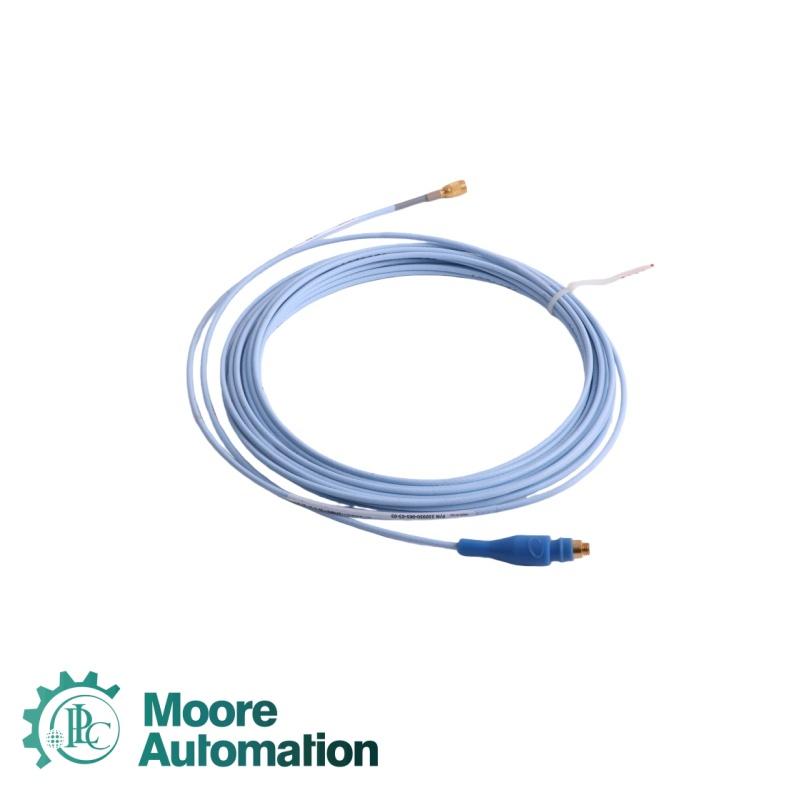

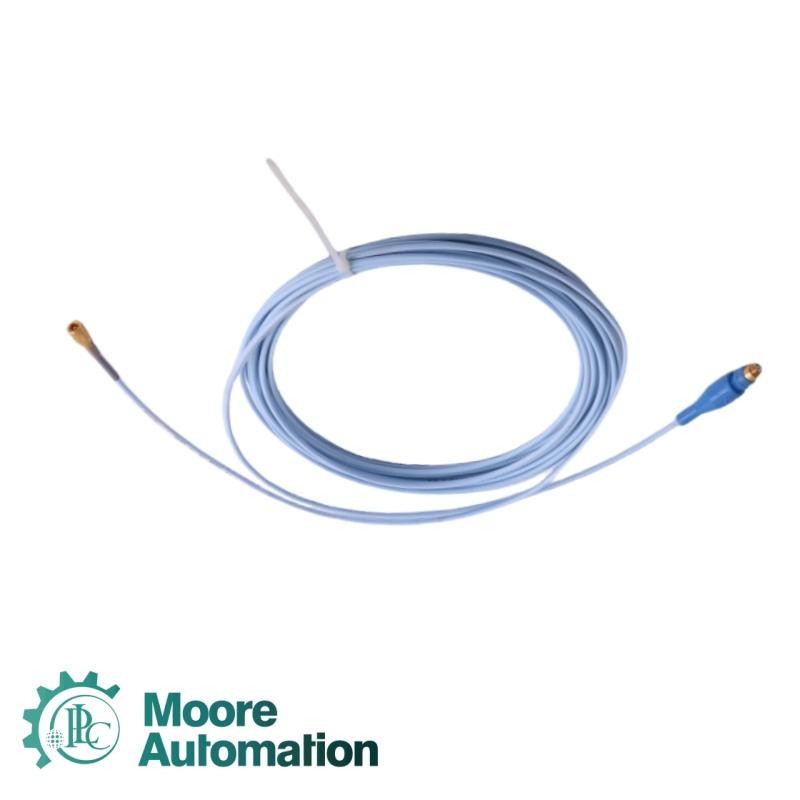

Bently Nevada 330930-065-03-00 Sensor Proximity Probe Cable

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Name: 330930-065-03-00

Product Origin:USA

Shipping Port: Xia men

Brand Name:Bently

Payment: T/T

Delivery time: 1-3 days

Cable Type: Coaxial signal cable for proximity transducer system
Compatible Series: Bently Nevada 3300 XL Proximity System
Cable Length: 6.5 meters (21.3 feet)
Connector Type: Male-to-female coaxial connectors with secure locking sleeves
Probe Connection Interface: Compatible with 3300 XL 5 mm or 8 mm proximity probes
Extension Cable Connection: Designed for direct connection to 3300 XL extension cables and drivers
Measurement Signal Type: Non-contact vibration and axial position signals
Frequency Response: DC to 10 kHz typical
System Accuracy: ±0.5% of full-scale measurement (system dependent)
Cable Construction:
Inner Conductor: Tinned copper
Insulation: PTFE high-dielectric material
Shield: Braided copper shielding for electromagnetic interference protection
Outer Jacket: Durable FEP insulation resistant to oil and chemicals
Bend Radius (Minimum): 25 mm
Temperature Range (Operating): −51 °C to +177 °C
Temperature Range (Storage): −51 °C to +200 °C
Humidity Resistance: 95% RH non-condensing
Insulation Resistance: > 10⁹ Ω at 500 VDC
Capacitance: 85 pF/m typical
Characteristic Impedance: 50 Ω ±2 Ω
Signal Attenuation: ≤ 1.2 dB per 10 m at 10 MHz
Vibration Resistance: 10 g, 10–2000 Hz (IEC 60068-2-6)
Shock Resistance: 30 g, 11 ms half-sine (IEC 60068-2-27)
EMI/RFI Protection: Fully shielded to meet industrial EMC standards
Connector Material: Nickel-plated brass
Cable Jacket Color: Blue (Bently Nevada standard color coding)
Flame Resistance: Meets UL94 V-0 rating
Ingress Protection (when mated): IP65
System Compatibility:
3300 XL 5 mm Proximity Probe
3300 XL 8 mm Proximity Probe
3300 XL Extension Cable
3300 XL Proximitor Sensor

·Condition: Brand new and factory sealed.

·Warranty: 12-month manufacturer coverage.

·Packaging: Original packaging with secure cartons.

·Delivery Time: Ships within 3 business days after payment.
