YASKAWA SGDC-CB30AJA / DF9202376-C0 Circuit Board

Product Name: SGDC-CB30AJA / DF9202376-C0

Brand Name:YASKAWA

Product Origin:JAPAN

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

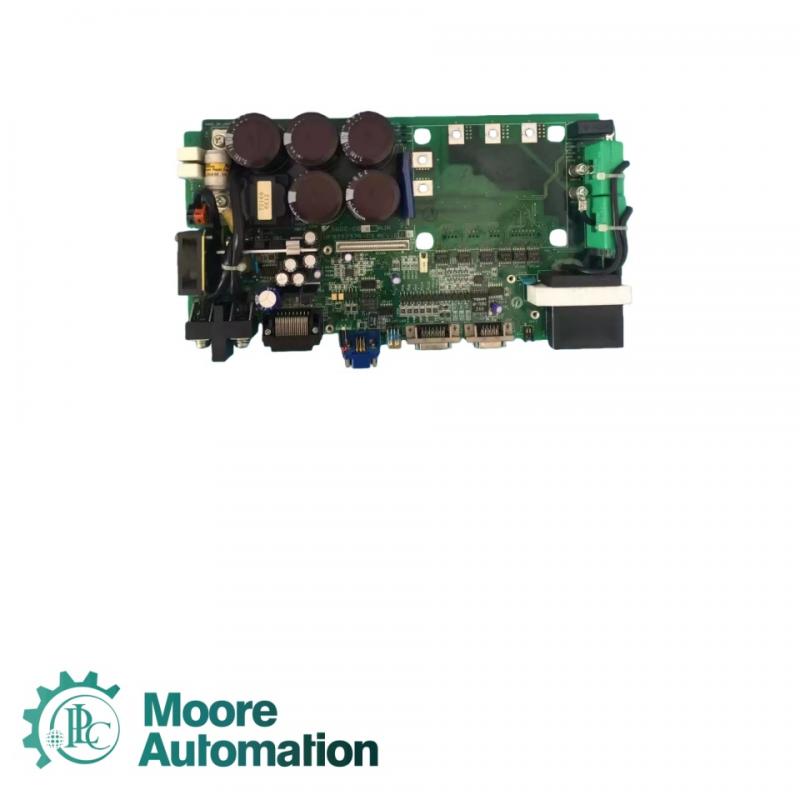

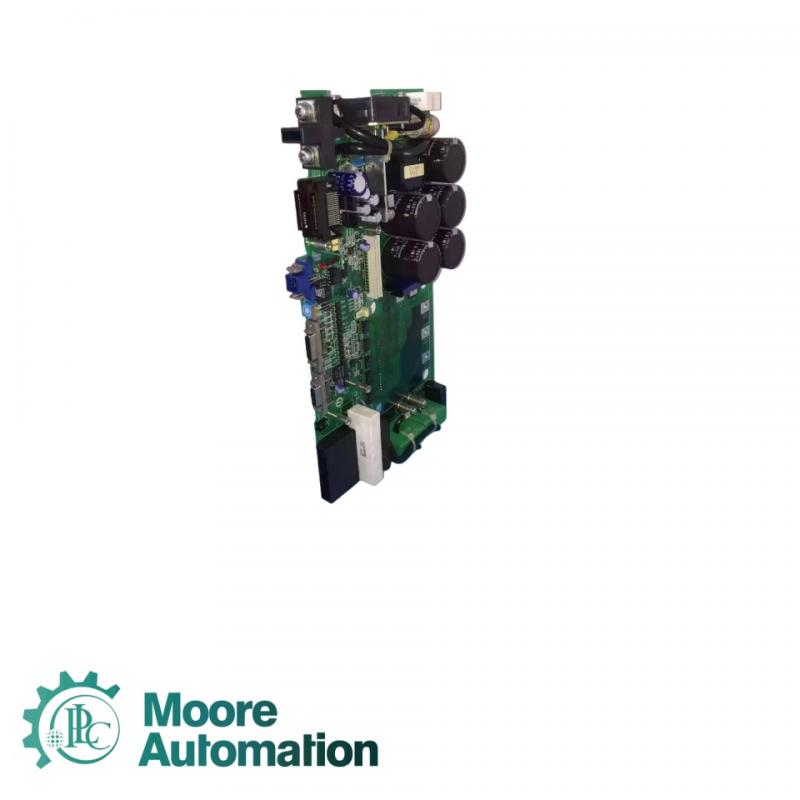

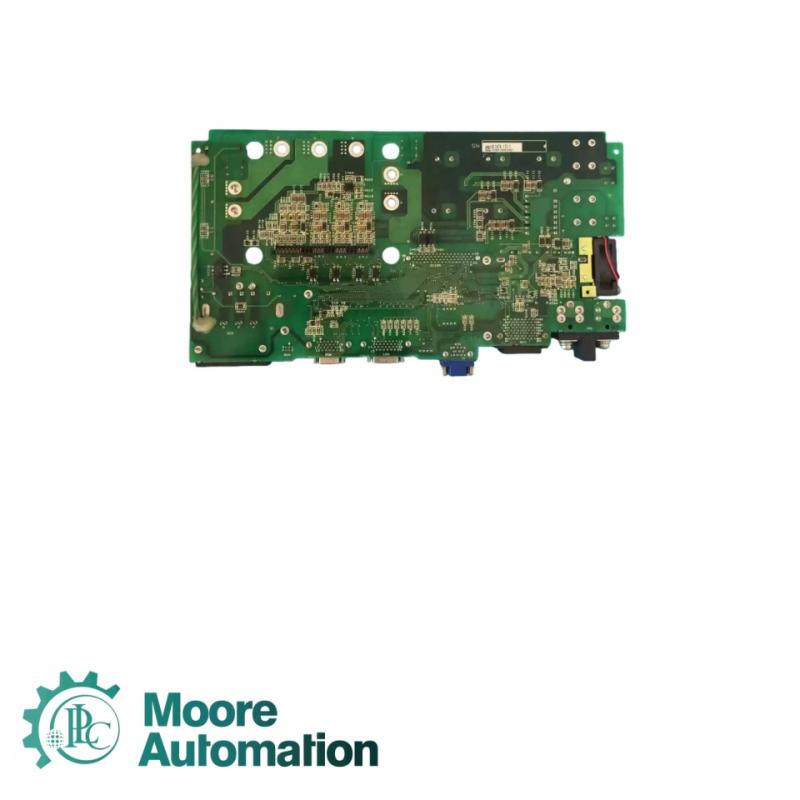

YASKAWA SGDC-CB30AJA/DF9202376-C0 is designed specifically for high-performance servo systems. This circuit board is used to control the operation of servo motors, providing precise speed and position control, and is widely used in industrial automation, robot control, and precision mechanical equipment.

Power input: AC 200-230   V ± 10%, three-phase input
Control voltage: DC 24V ± 5%
Maximum power consumption: approximately 60 W
Working temperature range: 0 ° C to 50 ° C
Storage temperature range: -20 ° C -70 ° C
Working humidity range: 0% -90% RH (non condensing)
Maximum control signal input frequency: 10 kHz -20 kHz
Pulse input type: TTL or 24V digital input, supports pulse/direction mode
Analog input: 0-10 V or 4-20 mA
Analog output: 0-10 V/4-20 mA, used for speed/torque feedback
Communication interface: RS-485/Modbus RTU optional
Control functions: speed loop control, position loop control, torque limitation, regeneration control
Protection functions: overcurrent protection, overvoltage/undervoltage protection, over temperature protection, short circuit protection
Installation method: fixed with screws, directly connected to the onboard interface and servo drive
Heat dissipation method: natural air cooling+driver heat sink
Dimensions:25.4 cm x 25.4 cm x 2.5 cm
Weight:0.4kg

Q1: Which servo drivers is this circuit board suitable for?
A1: SDCC-CB30AJA/DF9202376-C0 is mainly suitable for YASKAWA Sigma series servo drives, such as SGDC-30AJA.

Q2: What are the input power requirements?
A2: The onboard driver supports three-phase AC 200-230   V ± 10% input, and the logic control voltage is DC 24   V ± 5%.

Q3: What is the maximum power consumption?
A3: The typical power consumption of a circuit board is about 60   W, depending on the workload of the driver.

Q4: What is the working and storage temperature range?
A4: The working temperature ranges from 0 ° C to 50 ° C; the storage temperature ranges from -20 ° C to 70 ° C.

Moore Automation focuses on providing high-quality automation control system components for the global manufacturing industry, ensuring the continuous and stable operation of customer production lines with professional strength in all aspects. Relying on a strong internal inventory reserve and a trusted distribution cooperation network established with multiple suppliers, the company can accurately match customer needs and customize optimal solutions. In case of temporary shortage of products, customers can submit a quotation request at any time; In the vast majority of scenarios, companies rely on efficient supply chain response capabilities to quickly complete source allocation, ensure timely supply of required products, and safeguard customer production progress.
