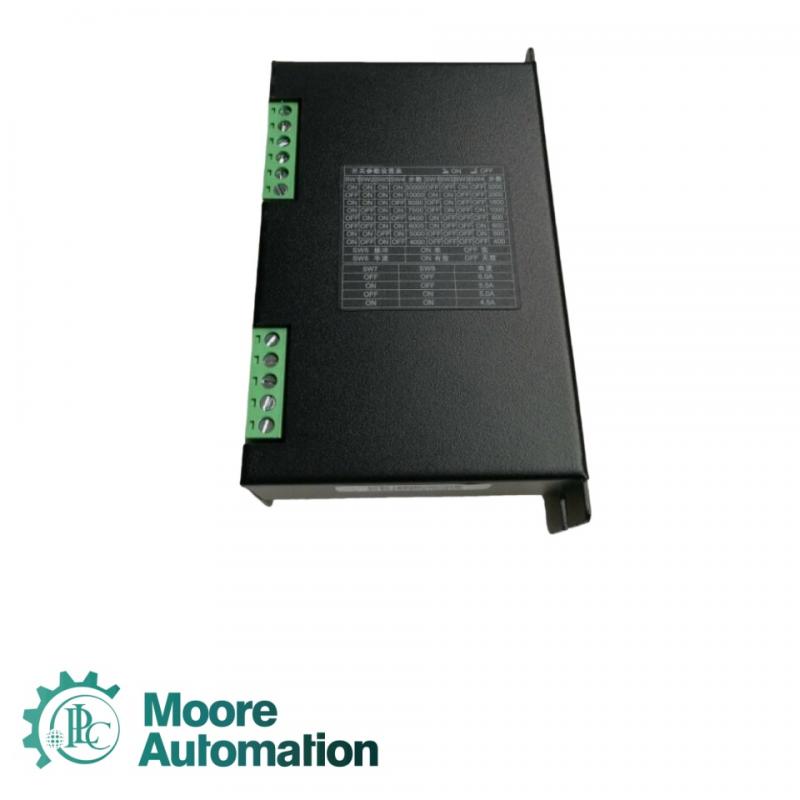

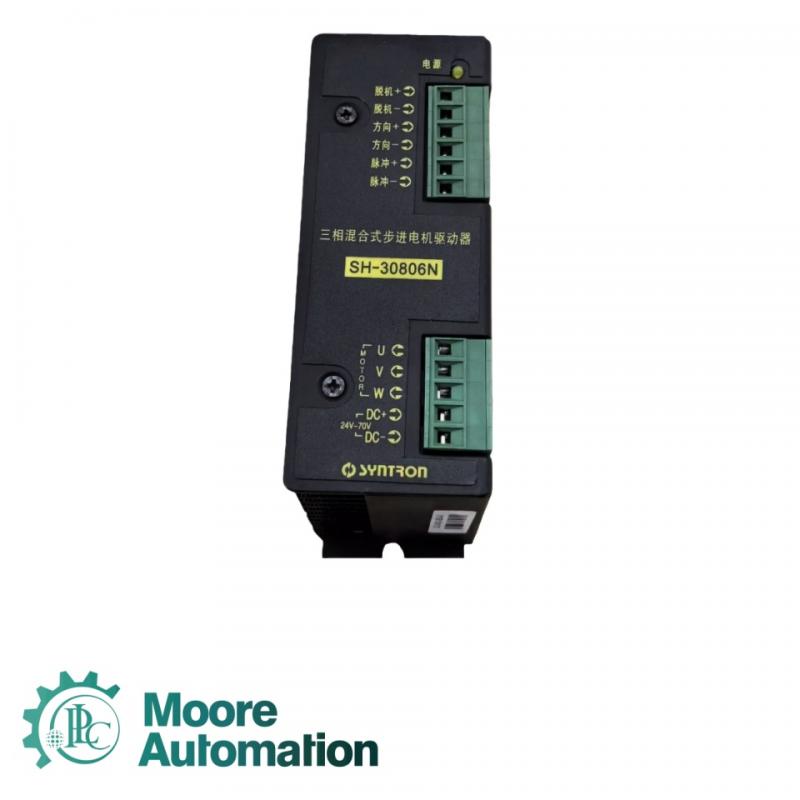

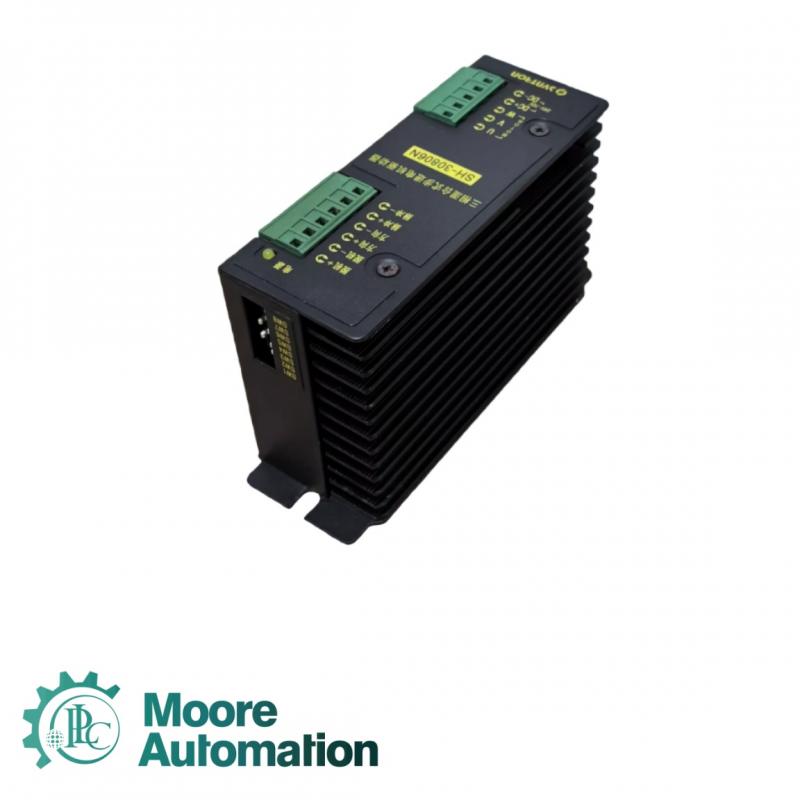

Senchuang SH-30806N stepper motor driver

The Senchuang SH-30806N three-phase stepper motor driver is a high-performance digital stepper motor driver that uses advanced micro step drive technology to effectively reduce the vibration and noise of the stepper motor, and improve the stability and accuracy of the system. This driver supports multiple types of motors, including 57, 60, and 86 stepper motors, and is widely used in fields such as CNC machine tools, automated production lines, and packaging equipment.

Input voltage: DC 24V ± 10%
Output current: adjustable from 1.0A to 6.0A
Microstep segmentation: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64
Control signals: Pulse, Direction, Enable
Maximum operating frequency: 200 kHz
Step resolution: up to 0.005625 °/step
Working temperature range: 0 ° C-50 ° C
Storage temperature range: -20 ° C -70 ° C
Humidity range: 0% -90% RH (non condensing)
Interface type: Standard 5-pin terminal block
Protection functions: overcurrent protection, overvoltage protection, undervoltage protection, over temperature protection, short circuit protection
Response time: Typical control signal response<10 μ s
Motor compatibility: 57, 60, 86 type three-phase stepper motors
Installation method: DIN rail installation
