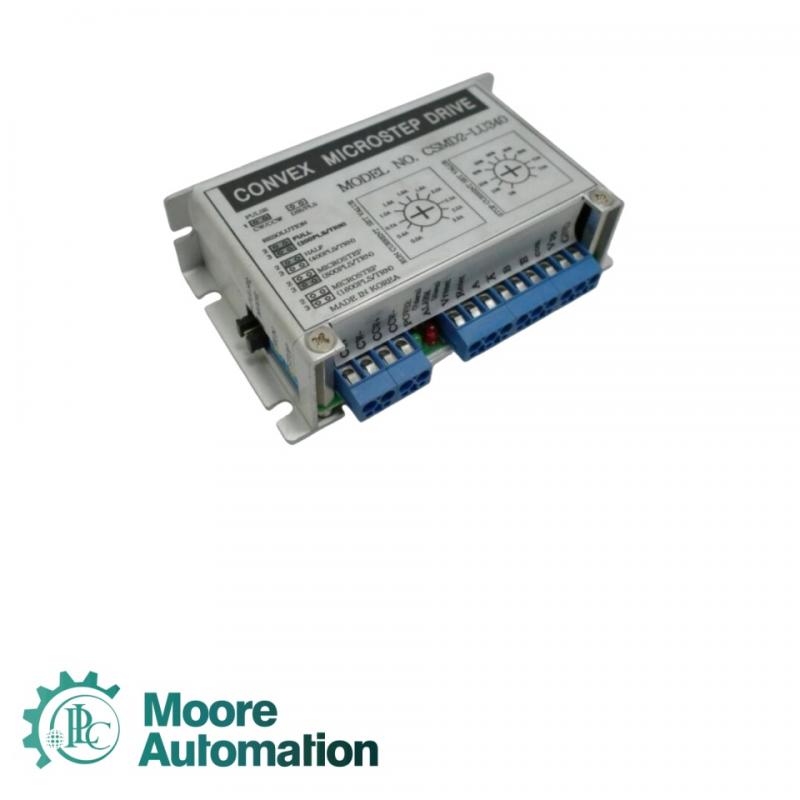

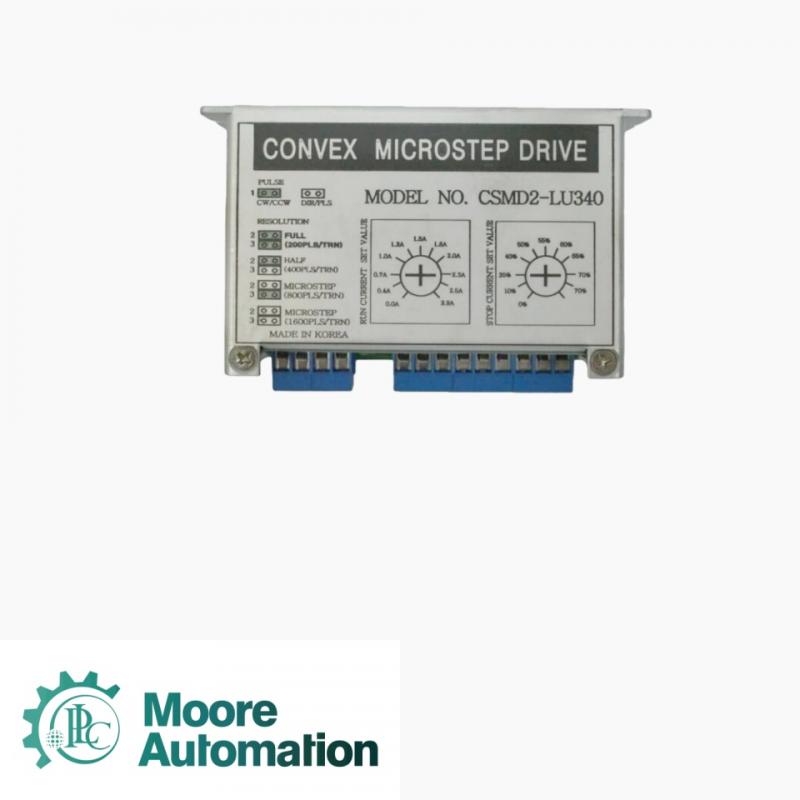

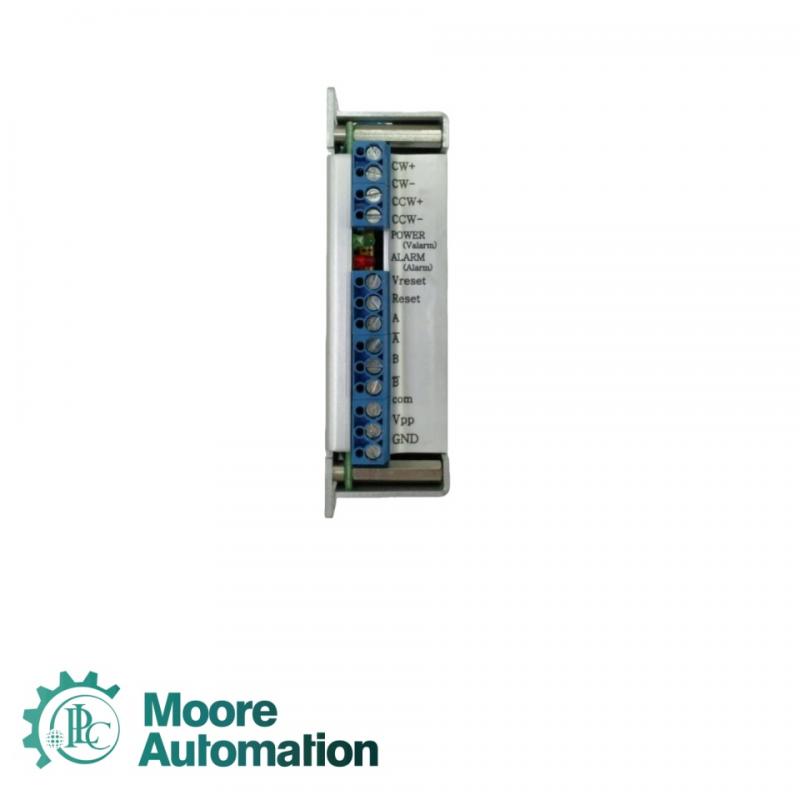

CONVEX CSMD2-LU340 MICROSTEP DRIVE

Product Name: CSMD2-LU340

Brand Name:CONVEX

Product Origin:Russia

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

CONVERX CSMD2-LU340 is a 2-phase micro stepper driver designed for high-precision stepper motor control, specifically for cost sensitive but still requiring stable performance industrial applications. This model belongs to the Low Cost Unipolar type in the CONVERX "2PH MICROSTEP DRIVE series", supporting an input voltage range of 15-36 VDC and an adjustable output current of 0.5-3 A/phase. It has several typical features: high resolution (up to 1600 microsteps/pulse, standard configuration), and a pulse input frequency of up to 80 kHz. The driver has a compact structure, equipped with status LED display, overcurrent protection, short circuit protection, regeneration protection functions, and supports energy-saving mode.

Input voltage range: 15V to 36V DC
Output current range: 0.5A to 3A/phase (adjustable)
Maximum pulse input frequency: 80kHz
Microstep resolution: supports 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200 steps/rev (BIN mode); 400, 500, 1000, 2000, 5000, 10000, 25000, 50000 steps per revolution (DEC mode)
Control mode: Pulse/Direction or CW/CCW input
Current control method: Constant Current Drive
PWM driving frequency: about 20kHz (typical value)
Output voltage range: approximately 0 to input voltage (depending on load)
Working temperature range: 0 ° C to 50 ° C
Storage temperature range: -20 ° C to 70 ° C
Humidity range: 0% to 90% relative humidity (no condensation)

Q1: What is the input voltage range supported by CMSD2-LU340?
A1: This driver supports an input voltage range of 15V to 36V DC.

Q2: What is the output current capability?
A2: The adjustable range of output current is 0.5   to 3   A/phase.

Q3: What is the maximum pulse input frequency?
A3: The maximum pulse input frequency is 80 kHz.

Q4: What are the options for microstep resolution?
A4: Supports 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200 steps/turn (BIN mode); And 400, 500, 1000, 2000, 5000, 10000, 25000, 50000 steps per revolution (DEC mode).
