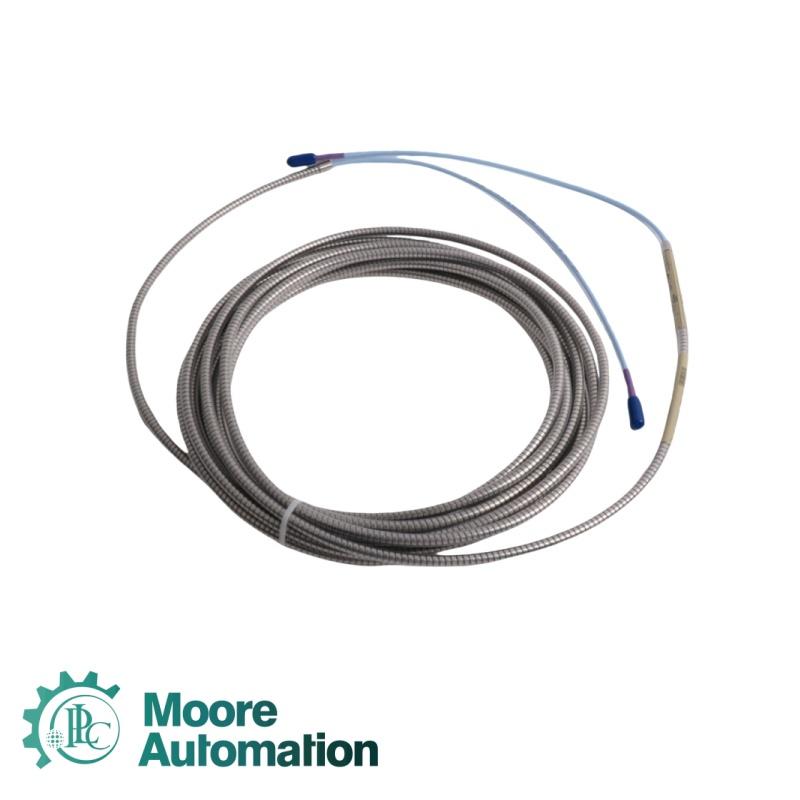

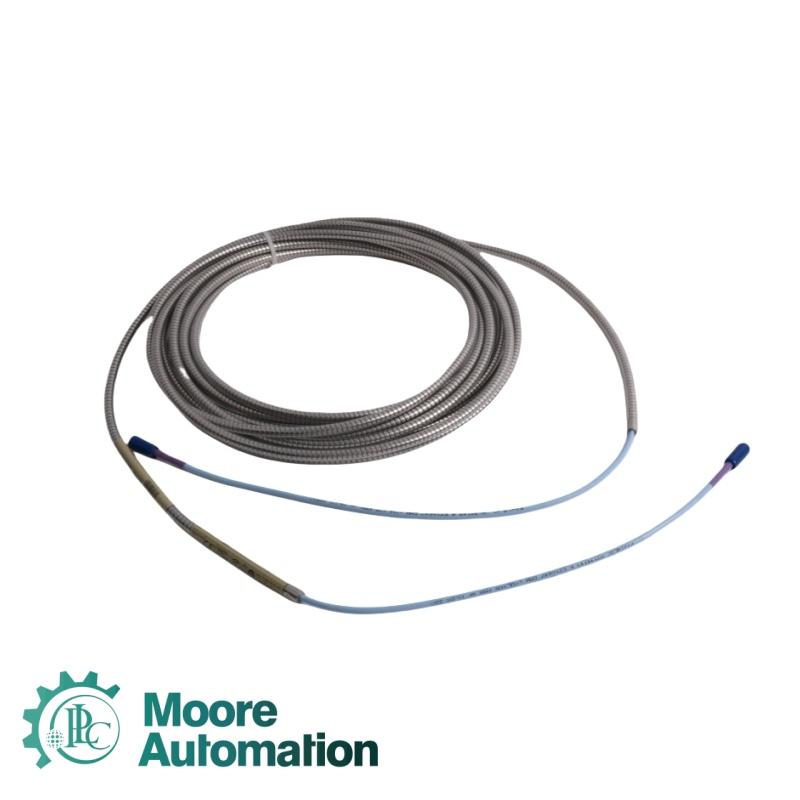

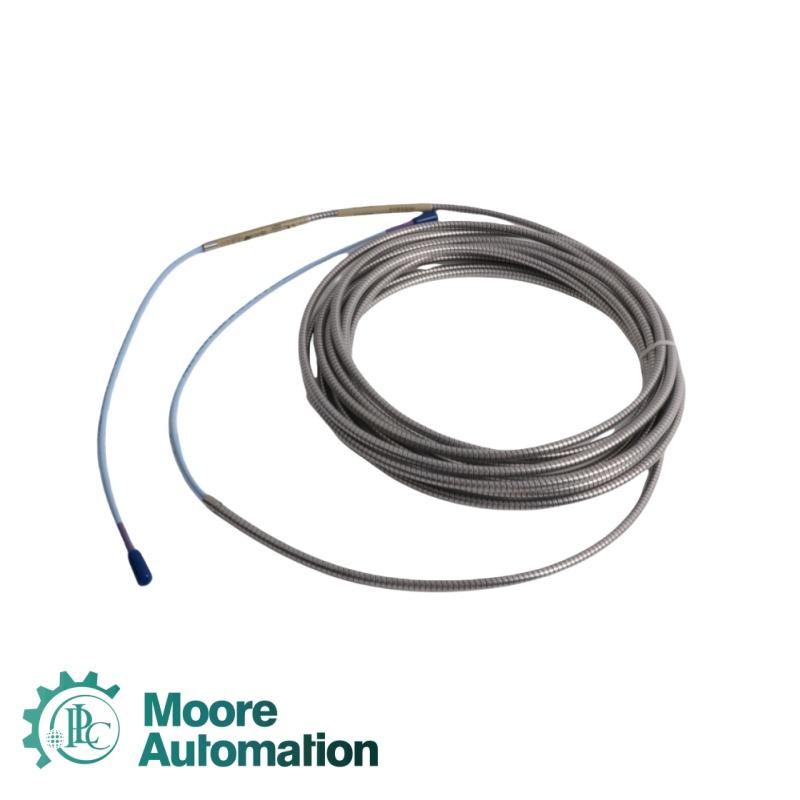

Bently Nevada 330730-080-10-05 Sensor Probe Extension Cable

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Name: 330730-080-10-05

Product Origin:USA

Shipping Port: Xia men

Brand Name:Bently Nevada

Payment: T/T

Delivery time: 1-3 days

Cable Function: Extension cable for proximity transducer systems
Compatible System: Bently Nevada 3300 XL Proximity System
Cable Length: 8.0 meters (26.2 feet)
Cable Type: Coaxial, double-shielded, low-noise transmission cable
Connector Type: Coaxial male-to-female connectors with threaded locking sleeves
Probe Compatibility: 3300 XL 5 mm, 8 mm, and 11 mm proximity probes
Sensor Interface: Compatible with 3300 XL Proximitor Sensor modules
Signal Transmission Type: Non-contact vibration and axial position measurement signals
Characteristic Impedance: 50 Ω ±2 Ω
Capacitance: Approx. 83 pF/m typical
Propagation Delay: 5 ns/m typical
Attenuation: ≤ 1.0 dB per 10 m at 10 MHz
Operating Frequency Range: DC to 12 kHz typical
System Accuracy: ±0.5% of full-scale measurement (within system calibration)
Cable Shielding: Braided copper shield with full-length coverage for EMI/RFI suppression
Inner Conductor Material: Silver-plated copper
Insulation Material: High-dielectric PTFE (Teflon)
Outer Jacket Material: FEP, oil-resistant and chemical-resistant
Outer Jacket Color: Blue (standard for Bently Nevada 3300 XL system cables)
Minimum Bend Radius: 30 mm
Temperature Range (Operating): −51 °C to +177 °C
Temperature Range (Storage): −51 °C to +200 °C
Humidity Resistance: Up to 95% RH (non-condensing)
Vibration Resistance: 10 g, 10–2000 Hz (IEC 60068-2-6 compliant)
Shock Resistance: 30 g, 11 ms half-sine (IEC 60068-2-27 compliant)
EMC Compliance: Meets EN61326 industrial EMC standards
Insulation Resistance: > 1×10⁹ Ω at 500 VDC
Connector Material: Nickel-plated brass with gold-plated contacts
Connector Retention: Threaded coupling for secure vibration-resistant connection
Flame Retardant Rating: UL94 V-0 compliant
Ingress Protection (mated condition): IP65
Electrical Safety Standards:
IEC/EN 61010-1
CE compliant
RoHS compliant
Mechanical Durability:
Plug/unplug endurance: > 500 cycles

·Condition: Brand new and factory sealed.

·Warranty: 12-month manufacturer coverage.

·Packaging: Original packaging with secure cartons.

·Delivery Time: Ships within 3 business days after payment.
