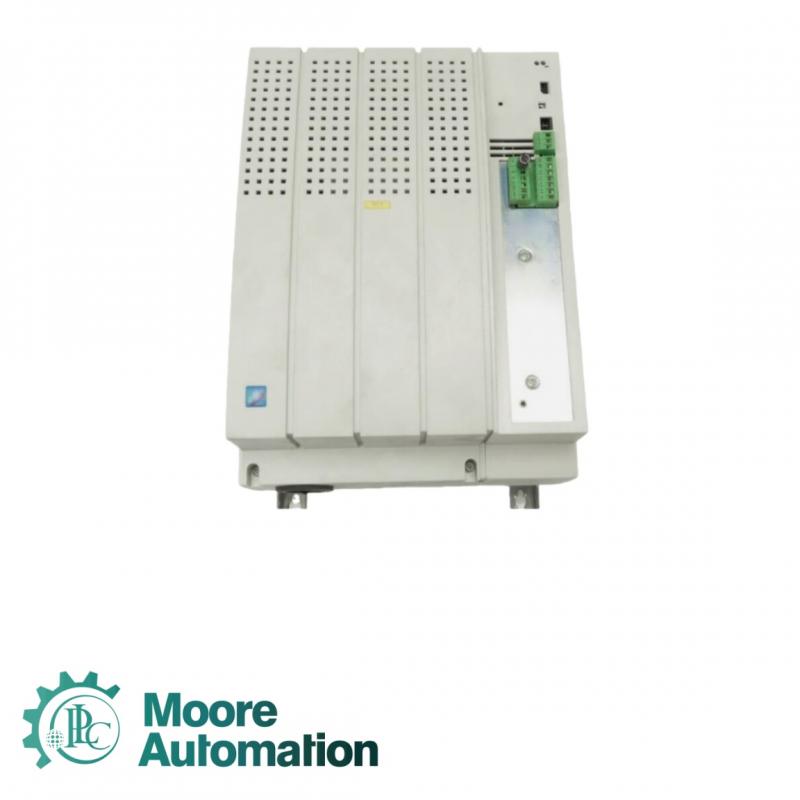

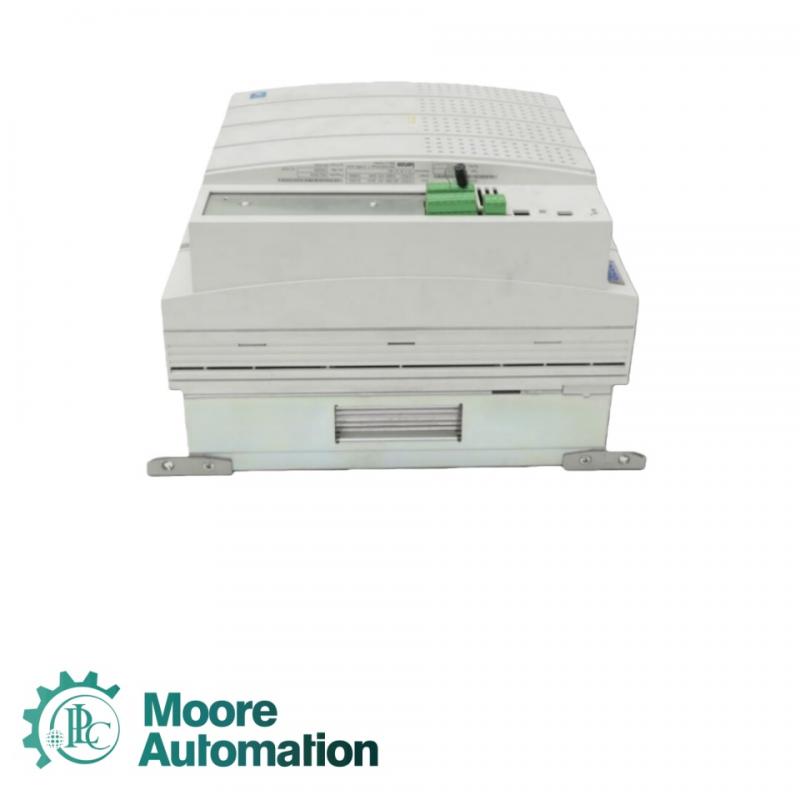

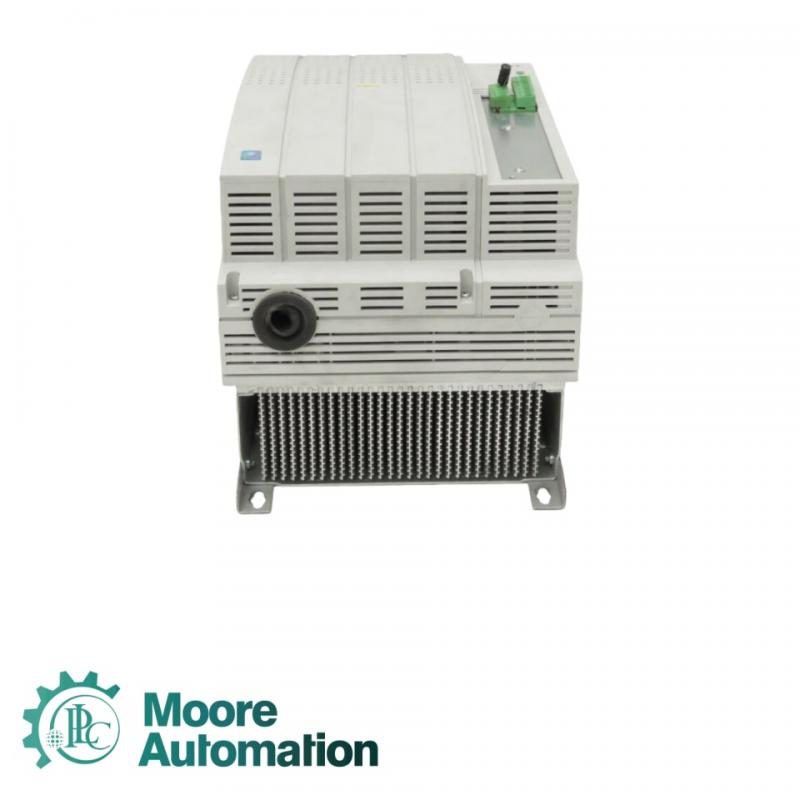

YASKAWA CIMR-MRXN2015 Converter

The YASKAWA CIMR-MRXN2015 converter is a servo system component produced by Yaskawa Electric (YASKAWA), mainly used to convert AC power into DC power to supply servo drives and servo motors. This model belongs to the MR5 series and is suitable for high-performance CNC systems, such as the YASKAWA Siemens 840D control system.

Control voltage: DC 24 V ±5%
Maximum power consumption: approximately 55 W
Working temperature range: 0 °C – 50 °C
Storage temperature range: -20 °C – 70 °C
Pulse input type: TTL or 24 V digital input, supports pulse/direction mode
Analog input: 0–10 V or 4–20 mA for speed or torque reference
Analog output: 0–10 V / 4–20 mA for speed or torque feedback
Communication interface: RS-485 / Modbus RTU (optional)
Control functions: speed control loop, position control loop, torque limiting, regenerative braking control
Protection functions: overcurrent, overvoltage / undervoltage, overtemperature, short-circuit
Installation method: screw mounting, directly connected to servo drive interface
Output voltage: DC 300 V
Output current: 50 A
Item weight:10,10 kg
Product dimensions ( Length × Width × Height ): 35,00 × 15,00 × 27,50 cm
