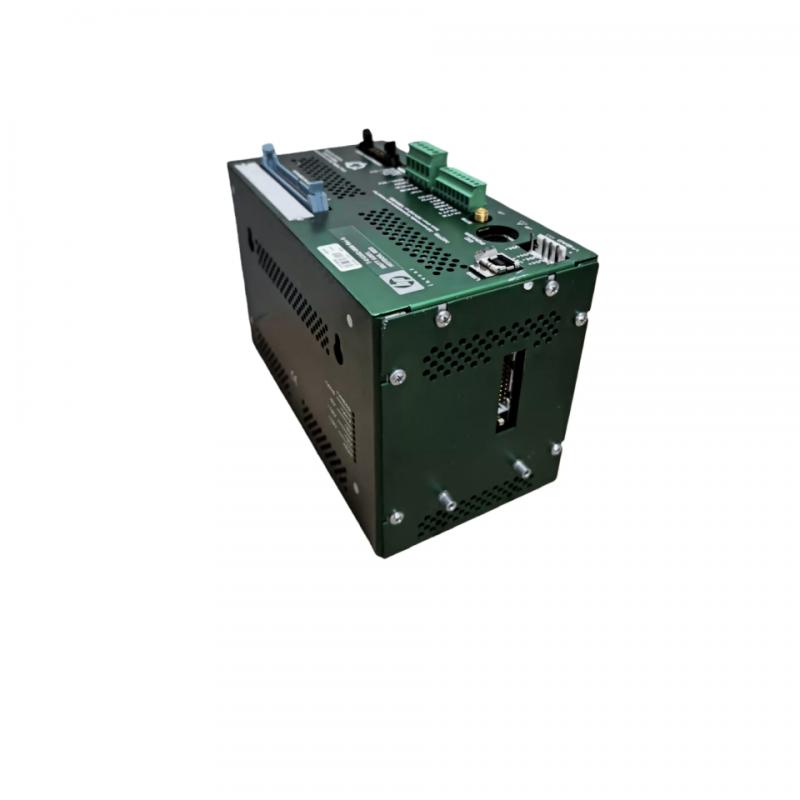

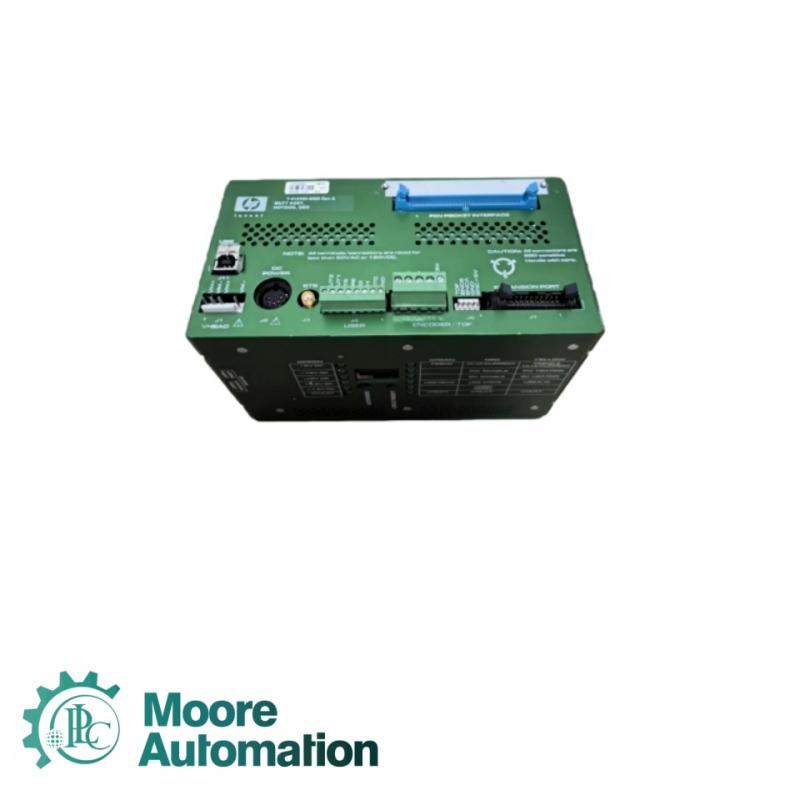

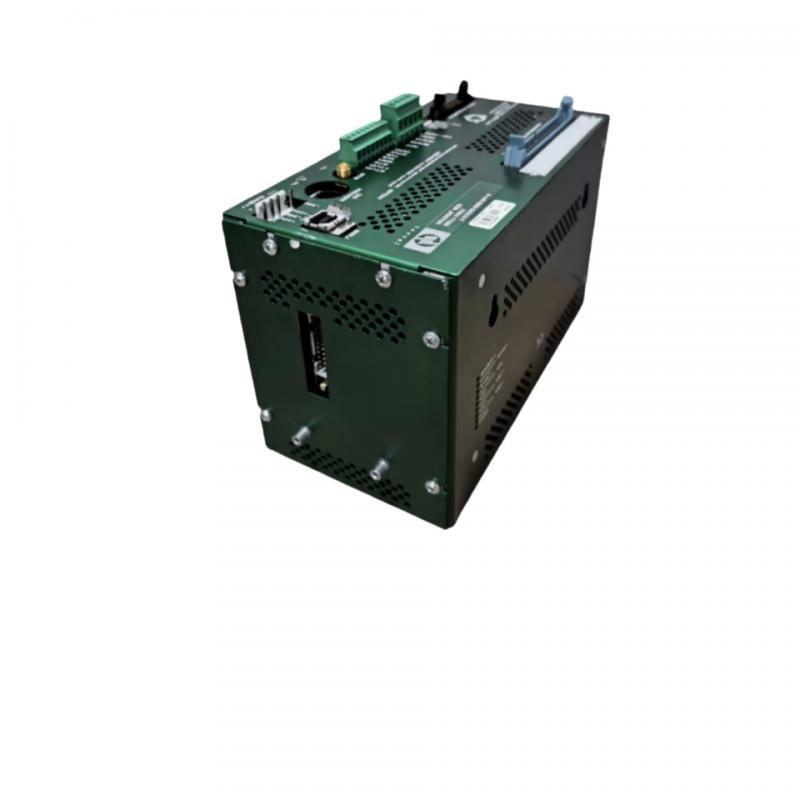

HP T612352-6000 Industrial CPU Model

Product Name: T612352-6000

Brand Name:HP

Product Origin:USA

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

The HP T-612352-6000 is a high-performance industrial CPU module designed specifically for industrial automation, embedded control, and complex computing tasks. This module adopts HP's MUTTY (modular unit) design concept, which combines flexibility and reliability to meet the stringent requirements of various industrial environments. The HP T-612352-6000 is equipped with advanced processor architecture and high bandwidth memory support, enabling it to perform excellently in data processing, real-time control, and multitasking operations.

Processor type Intel Core 2 Duo or Core 2 Quad
Motherboard chipset Intel Q43 Express chipset
Memory type DDR3 SDRAM
Maximum memory capacity of 16 GB (1066 MHz)
Storage interface SATA 2.0 interface, supporting SSD or HDD
Expansion slots PCI, PCIe x1, PCIe x16
Display output VGA, DisplayPort dual display output
Network interface: Dual Gigabit Ethernet (Intel 82567LM)
Integrated high fidelity audio interface, front microphone and headphone jack
Power supply voltage DC 24V/AC 100-240V optional
Working current is about 2.7A (at DC 24V)
Power consumption 65W-95W depends on configuration
Working temperature -20 ° C~60 ° C
Storage temperature -40 ° C~85 ° C
Anti vibration 5 Hz~500 Hz, 0.5 g RMS
Resistance to impact 10 g/11 ms
Compliant with CE, FCC, RoHS, and industrial grade EMI/EMC standards

Q : What is the operating temperature range of HP T-612352-6000?
A : This module supports an industrial working temperature range of -20 ° C to 60 ° C and can operate stably in high and low temperature environments.

Q : What is the storage temperature range?
A : The storage temperature range is -40 ° C to 85 ° C, suitable for long-term storage or transportation.

Q : What are the supported power supply voltages and power consumption?
A : This module supports DC 24V or AC 100-240V power input, with a typical power consumption between 65W-95W. The operating current at DC 24V is approximately 2.7A.

Q : What are the memory and processor specifications of the module?
A : Supports DDR3 SDRAM memory, expandable up to 16GB, with optional Intel Core 2 Duo or Core 2 Quad processors to meet industrial grade multitasking requirements.
