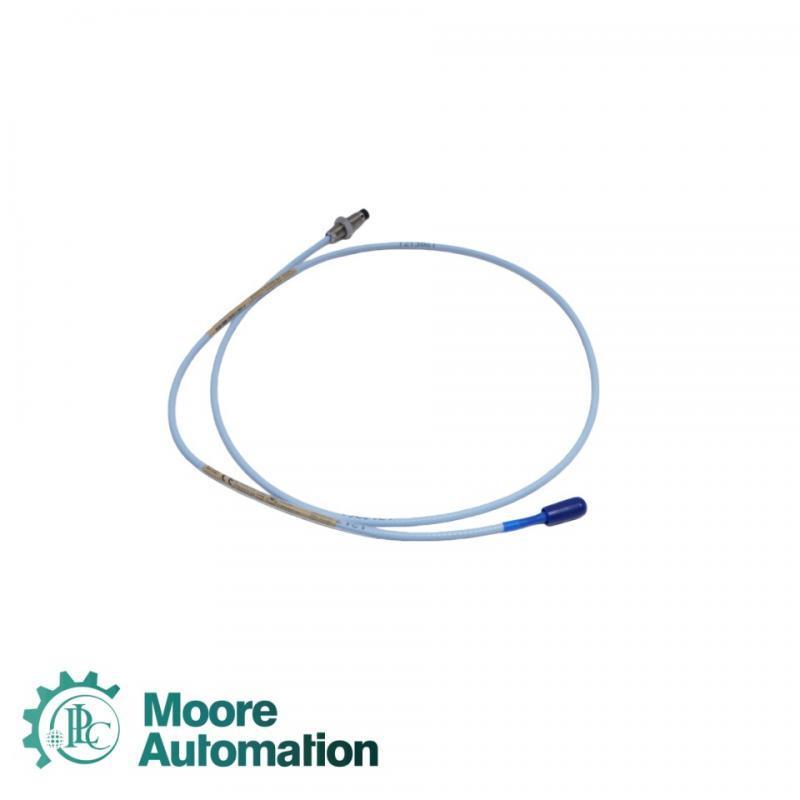

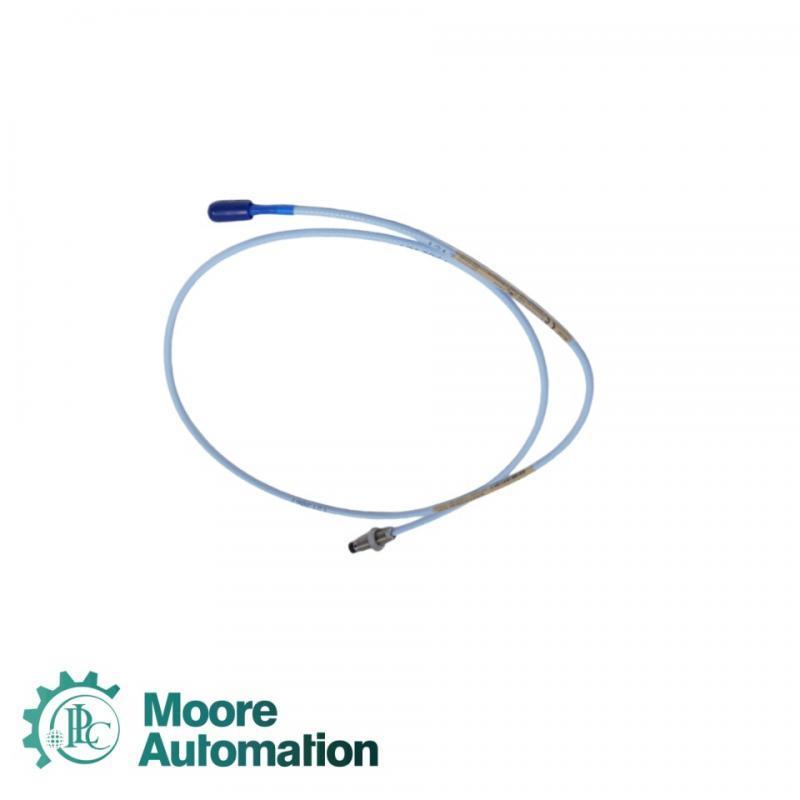

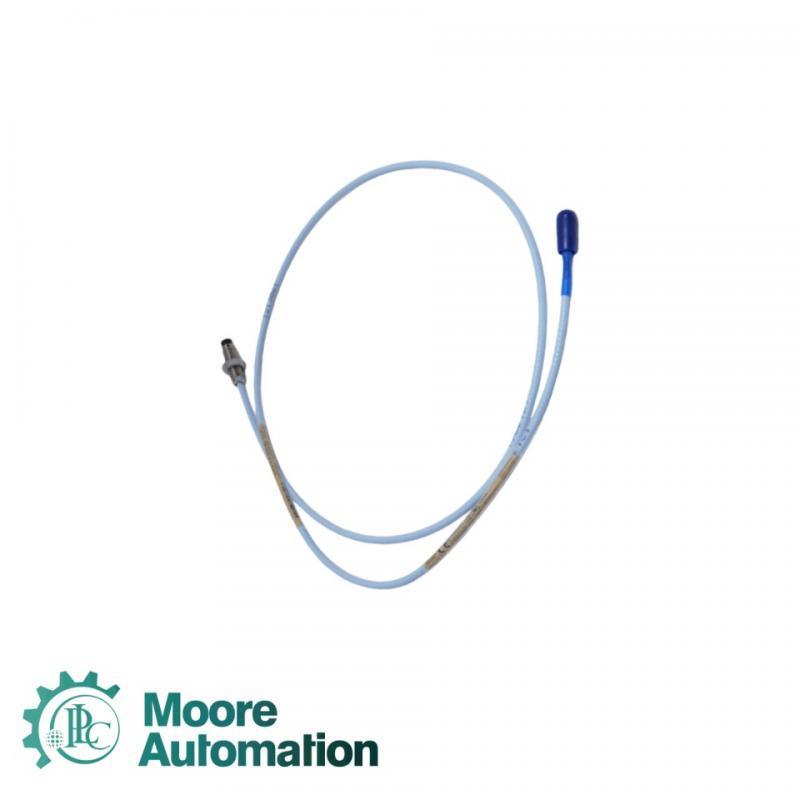

Bently Nevada  330881-28-06-155-03-02 Proximity Transducer

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Name: 330701-00-25-10-11-05

Product Origin:USA

Shipping Port: Xia men

Brand Name:Bently Nevada

Payment: T/T

Delivery time: 1-3 days

Scale Factor: 7.87 V/mm (200 mV/mil) ±6%
Linearity: ±0.25% of full-scale output
System Sensitivity: 200 mV/mil typical
Probe Length: 25 mm (model 330701-00-25)
Cable Length: 10 m (part of total system length configuration)
Connector Type: Miniature coaxial connector, gold-plated center pin
Cable Type: Triaxial, low-noise, double-shielded cable
Cable Jacket Material: FEP (Fluorinated Ethylene Propylene), blue color
Characteristic Impedance: 50 Ω ±2 Ω
Capacitance: 85 pF/m typical
Cable Bend Radius: Minimum 25 mm static / 50 mm dynamic
Probe Material: Stainless steel (AISI 303)
Tip Material: PEEK (Polyether ether ketone), non-conductive
Mounting Thread: M10 × 1.0
Locknut Material: Stainless steel 304
Locknut Torque: 1.8 N·m (16 in·lb)
Thread Length: 25 mm
Mounting Torque Tolerance: ±10%
Operating Voltage Range: −24 VDC (nominal, provided by proximitor driver)
Output Voltage Range: −24 VDC to −2 VDC proportional to distance
Frequency Response: DC to 10 kHz (−3 dB)
Resolution: < 1 µm (typical)
Hysteresis: ≤ 2 µm
Dynamic Range: 80 mils (2 mm)
Operating Temperature Range (Probe): −35 °C to +177 °C
Operating Temperature Range (Cable): −51 °C to +177 °C
Storage Temperature: −51 °C to +200 °C
Humidity: 95% RH non-condensing
Vibration Limit: 10 g, 10–2000 Hz
Shock Limit: 100 g peak, 11 ms half-sine
Pressure Rating: Up to 7 bar (sealed sensor body)
Environmental Protection: IP67 (probe and cable assembly)
Electrical Isolation: > 10⁸ Ω between probe body and signal ground
Dielectric Withstand Voltage: 500 V RMS for 1 minute
Electromagnetic Compatibility: Complies with EN 61326-1 and IEC 61000-4-2 standards
Temperature Coefficient: < 0.05%/°C of full-scale
Noise Level: < 20 mV peak-to-peak (typical at 10 kHz bandwidth)

·Condition: Brand new and factory sealed.

·Warranty: 12-month manufacturer coverage.

·Packaging: Original packaging with secure cartons.

·Delivery Time: Ships within 3 business days after payment.
