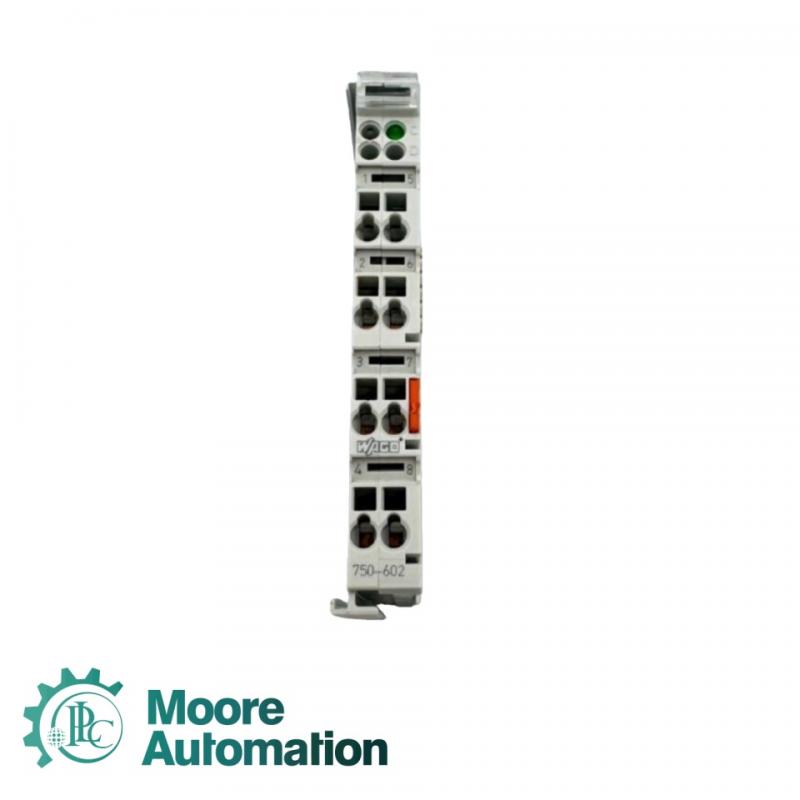

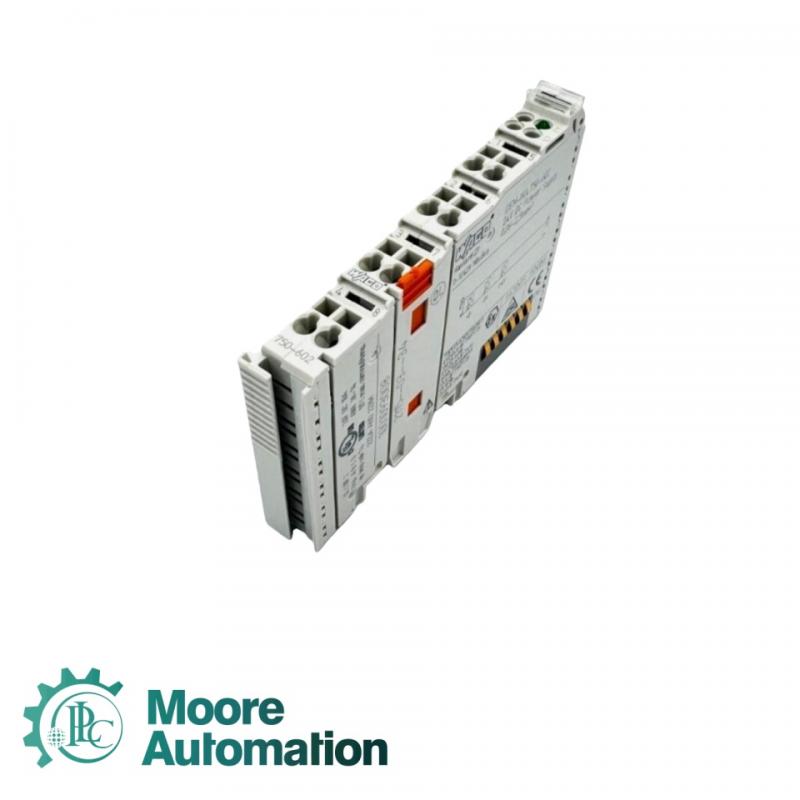

WAGO 750-602 Power Supply Module

WAGO 750-602 Power Supply Module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: 750-602 Payment: T/T

Brand Name:WAGO Shipping Port: Xia men

Product Origin: Germany Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

This WAGO 750-602 supply module provides the I/O modules with the corresponding supply potential.The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded.Should higher currents be necessary, an intermediate supply module must be added to the assembly.

Parameter Information

Signal type: Voltage
Signal type (voltage): 24 VDC
System power supply voltage: 5 VDC (powered through data contacts)
On site power supply voltage: 24 VDC (-25%...+30%), through power jumper contacts (CAGE CLAMP) ® Connect power supply, only transmit on-site voltage)
Current carrying capacity of power jumper contacts: 10A
Number of output power jumper contacts: 3
Indicator light: LED (green, indicating the working voltage status of the power jumper contact)
Connectable conductor material: Copper
Connection type: Field Supply connection
Solid conductor cross-sectional area: 0.08... 2.5 mm ²/28... 14 AWG
Multi strand conductor cross-sectional area: 0.08... 2.5 mm ²/28... 14 AWG
Stripping length: 8... 9 mm/0.31... 0.35 inches
On site power connection technology: 6 × CAGE CLAMP ®
Width: 12 mm/0.472 inches
Height: 100 mm/3.937 inches
Depth: 69.8 mm/2.748 inches
Surface installation depth on DIN rail: 62.6 mm/2.465 inches
Color: Light Gray
Shell material: Polycarbonate, Nylon PA 6.6 (Polyamide 6.6)
Fire Load: 0.979 MJ
Weight: 42.8 g
Compliance Mark: CE
Working environment temperature: 0...+55 ° C
Storage temperature: -40...+85 ° C
Protection level: IP20
Pollution level: 2 (compliant with IEC 61131-2)
Working altitude: 0... 2000 m/0... 6562 ft
Installation position: Both horizontal (left, right, up, down) and vertical (up, down) are acceptable
Relative humidity (no condensation): ≤ 95%
Vibration resistance: 4 g (compliant with IEC 60068-2-6)
Impact resistance: 15 g (compliant with IEC 60068-2-27)
EMC Immunity: Compliant with EN 61000-6-2 (Maritime Applications)
Electromagnetic Radiation Standard (EMC Emission): Complies with EN 61000-6-4 (Maritime Applications)
Pollution exposure test: compliant with IEC 60068-2-42 and IEC 60068-2-43
Allowable H ₂ S pollution concentration (relative humidity 75%): 10 ppm
Allowable concentration of SO ₂ pollution (relative humidity 75%): 25 ppm

FAQ

Q:What is the input signal type of this module?
A: The module supports voltage type input signals, with a rated signal voltage of 24 VDC, suitable for low-voltage signal transmission in standard industrial control systems.

Q: What are the system and on-site power supply voltages for the module?
A: The system power supply voltage is 5 VDC (supplied through data contacts), and the on-site power supply voltage is 24 VDC (allowed voltage fluctuation range -25% to+30%), through CAGE CLAMP ® The power jumper contacts achieve power supply.

Q: What is the current carrying capacity of this module?
A: The maximum current carrying capacity of the power jumper contacts is 10A, which is sufficient to meet the power supply needs of multi-point modules.

Q: Does the module have power status indication function?
A: Yes. The module is equipped with a green LED indicator light to display the working voltage status of the power jumper contacts.
