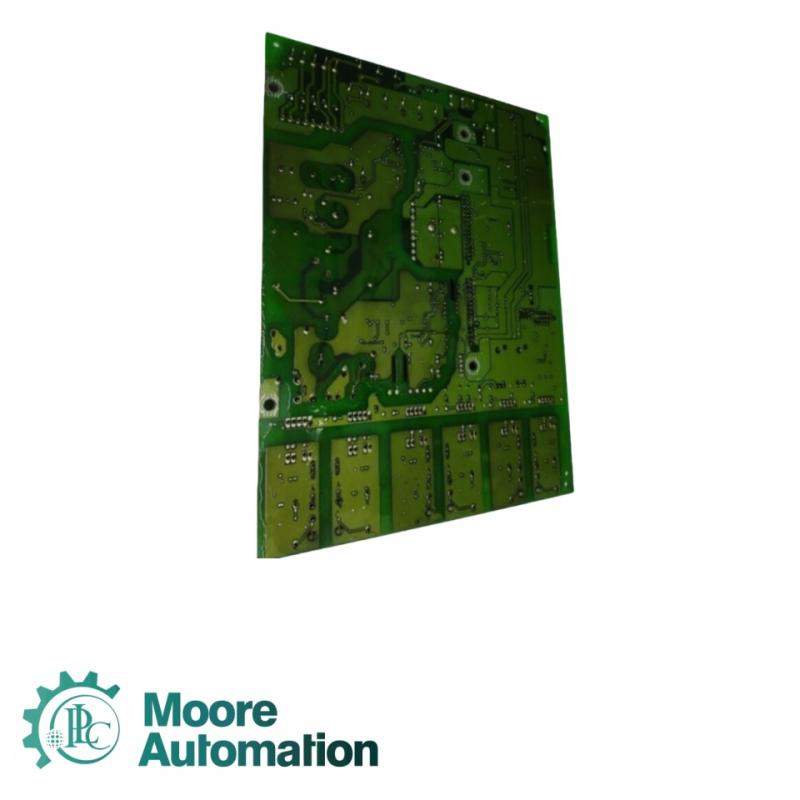

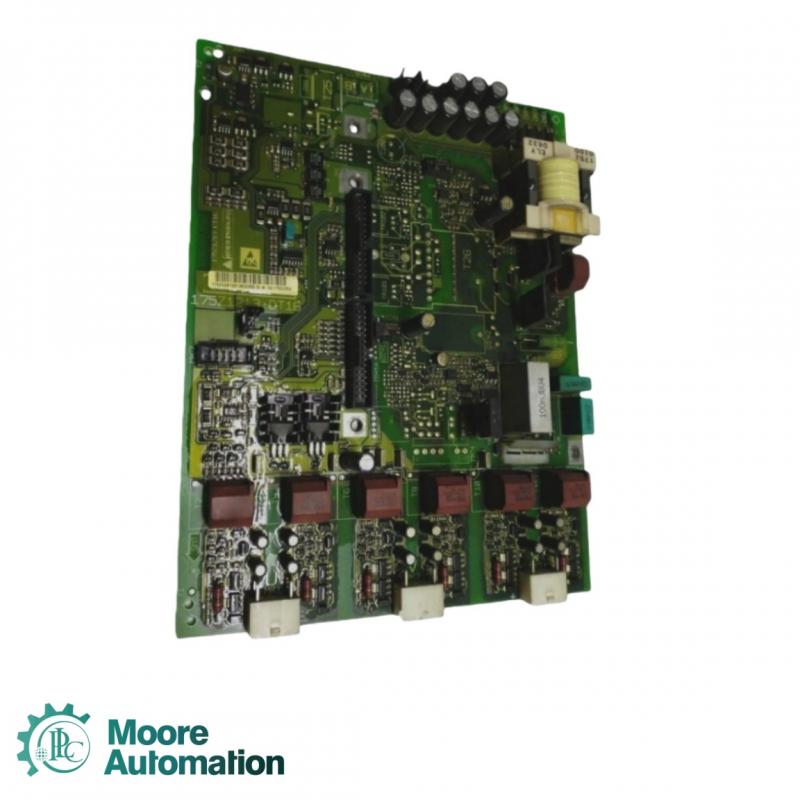

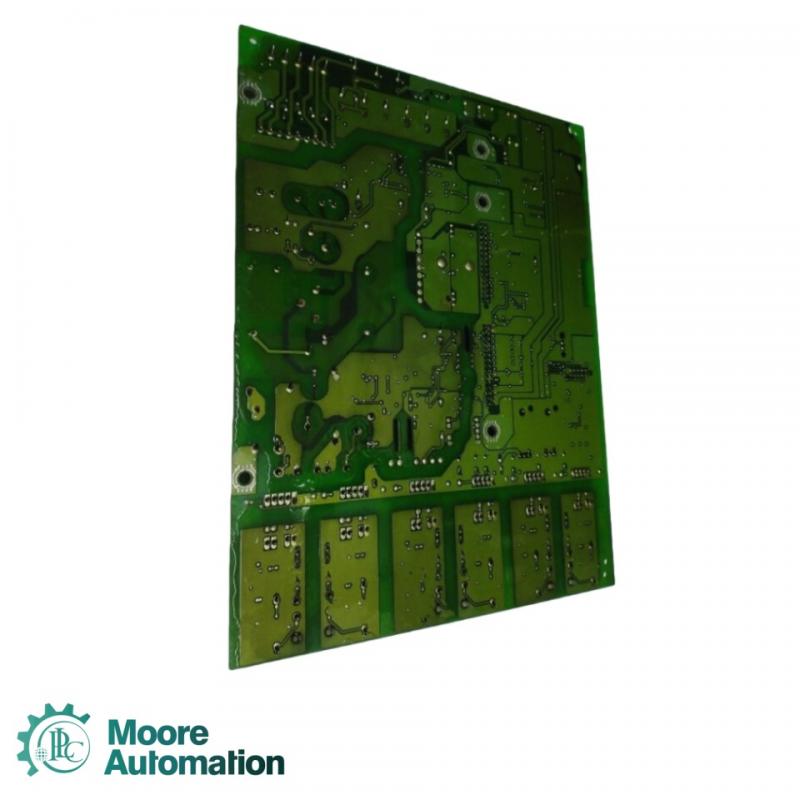

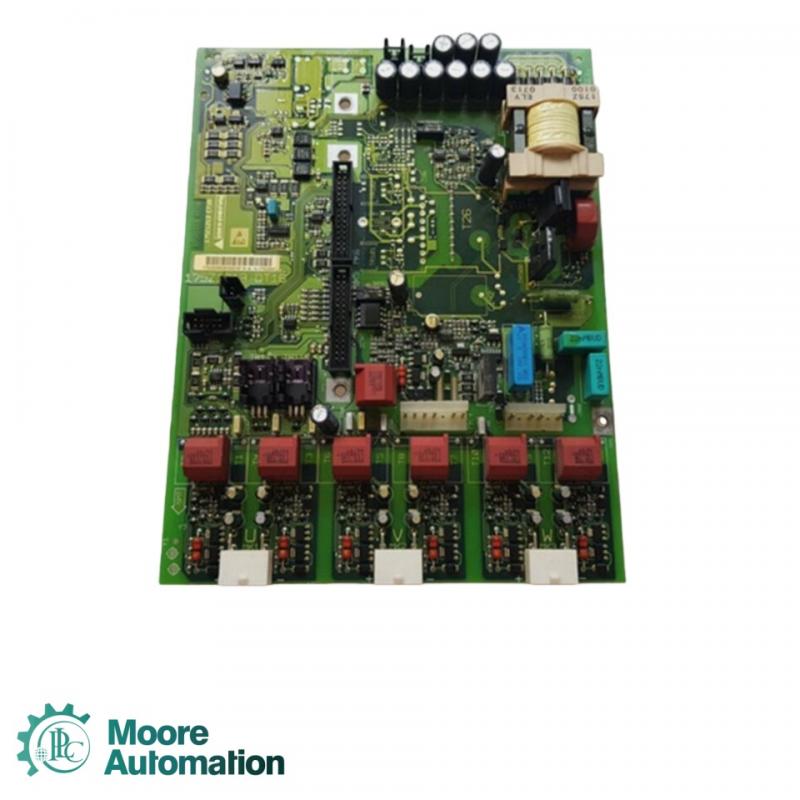

Danfoss 175Z1213 DT16 Inverter Drive Board

Danfoss 175Z1213 DT16 Inverter Drive Board

Danfoss 175Z1213 DT16 Inverter Drive Board

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Denmark
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: 175Z1213 DT16 Payment: T/T

Brand Name:Danfoss Shipping Port: Xia men

Product Origin: Denmark Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

The Danfoss 175Z1213 DT16 driver board is a critical control/drive module used to achieve motor speed control, power conversion, and circuit protection. This board card features high-performance power electronic devices and control logic, enabling frequency control, torque control, and protection functions for medium to low power AC motors. Due to its compact structure, reliable performance, and easy replacement, it is widely used in industrial automation, pumping systems, HVAC systems, marine and manufacturing equipment.

Parameter Information

Applicable series: Danfoss VLT ® 5000 series drive board
Installation form: Module board, inserted into the corresponding drive rack/control cabinet
Environmental working temperature: typically starting at 0 ° C; If the temperature is higher than about 45 ° C-55 ° C, it is necessary to reduce the rated operation
Storage/transportation temperature: up to approximately -25 ° C to+65/70 ° C System low voltage control power supply: external 24 V DC for low voltage control board use
Main power input: The associated frequency converter is three-phase 200-240 V or 380-460 V, depending on the model
Output or control current/voltage: The board is responsible for driving the circuit and is associated with the main power stage of the frequency converter. Typical frequency converter specifications include output current, efficiency, etc
Efficiency: up to approximately 95% -96% in the overall drive system

FAQ

Q: Which series of frequency converters is this board suitable for?
A: 175Z1213 DT16 is usually suitable for Danfoss VLT ® 5000 series frequency converter.

Q: What is the temperature range of the working environment?
A: According to the series manual, the starting operating temperature of this type of drive board is 0 ° C. If the long-term operating environment is higher than about 45 ° C-55 ° C, derating should be considered. The storage/transportation temperature is approximately -25 ° C to+65/70 ° C.

Q: What is the required low-voltage power supply for the control board?
A: The external control board can receive a 24V DC low voltage power supply as a control or tab power source.

Q: How much power and current does this board bear?
A: The board itself is a drive control module, and its power and current specifications are related to the main power level of the matched frequency converter. The VLT 5000 series has an output current range of 380-460 V; The board should be selected according to the specifications of the frequency converter.
