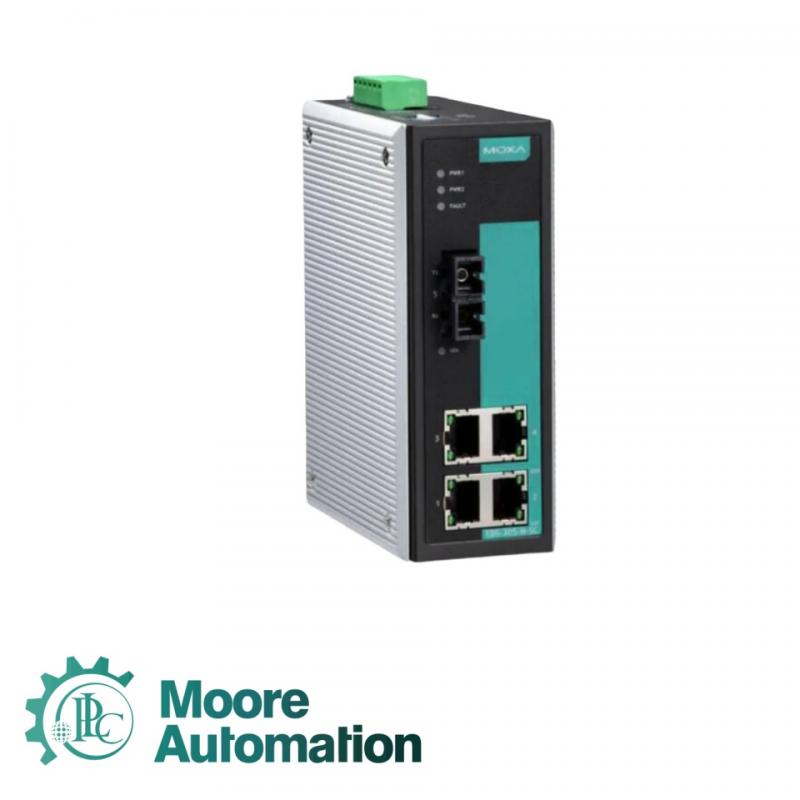

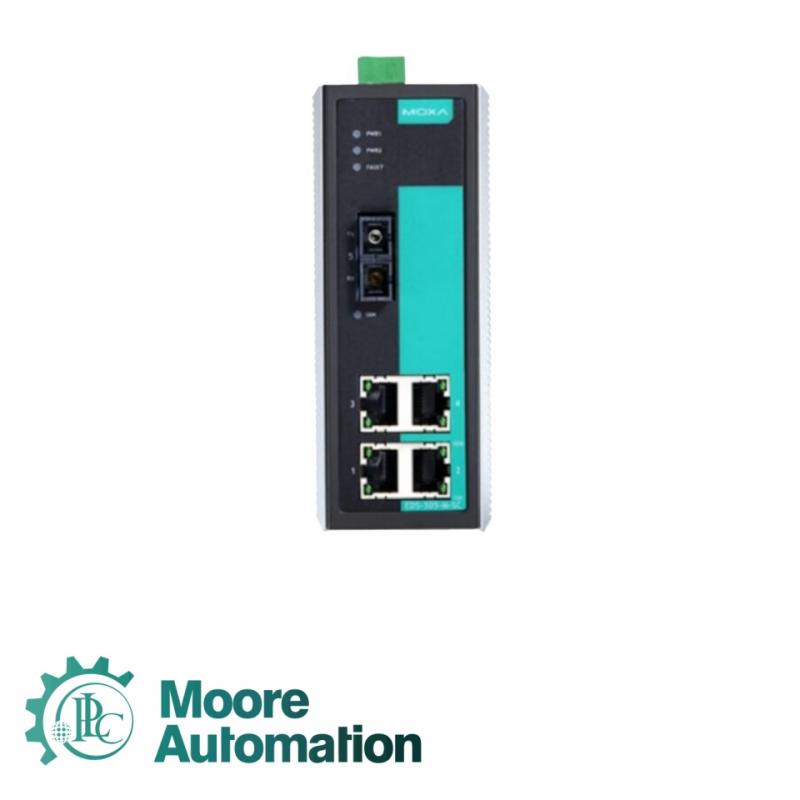

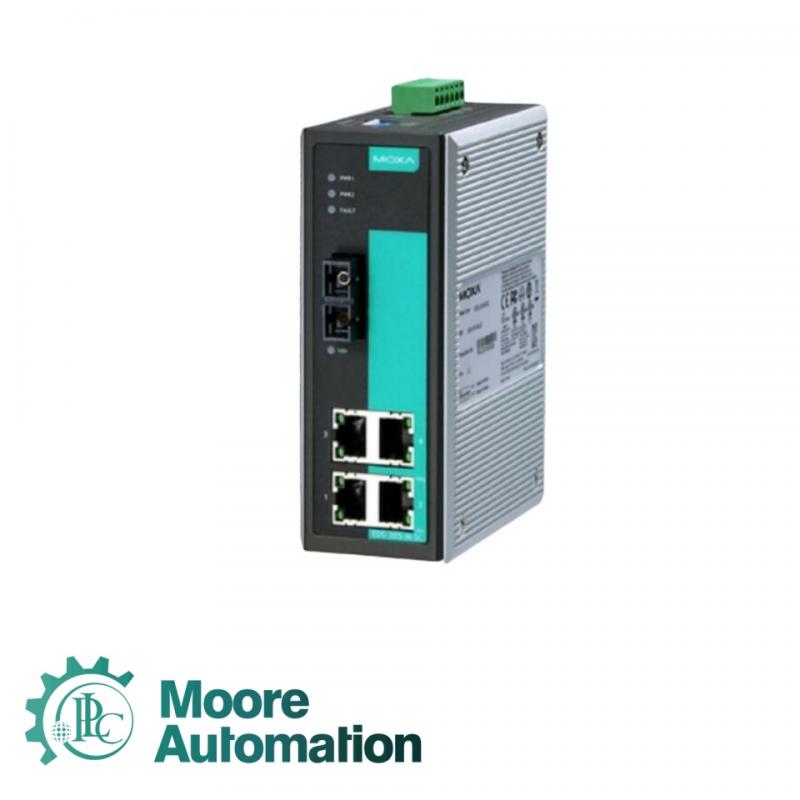

MOXA EDS-305-M-SC Unmanaged Ethernet switch

MOXA EDS-305-M-SC Unmanaged Ethernet switch

MOXA EDS-305-M-SC Unmanaged Ethernet switch

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Taiwan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: EDS-305-M-SC Payment: T/T

Brand Name: MOXA Shipping Port: Xia men

Product Origin: Taiwan Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

The MOXA EDS-305-M-SC is an industrial-grade unmanaged Ethernet switch designed for reliable network connections in harsh industrial environments. This switch features 5 10/100BaseT(X) ports, including 4 RJ45 electrical ports and 1 100BaseFX SC fiber optic port, enabling flexible network topology deployment and long-distance data transmission.

Parameter Information

10/100BaseT(X) Ports (RJ45 connector): 4
100BaseFX Ports (multi-mode SC connector): 1
Ethernet Interface port break alarm: Configurable
MAC Table Size: 1 K
Packet Buffer Size: 384 K
Processing Type: Store and Forward
Input Current: 0.15 A @ 24 VDC
Connection: 1 removable 6-contact terminal block(s)
Operating Voltage: 12 to 48 VDC
Input Voltage: 24 VDC, redundant dual inputs
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
Housing: Metal
IP Rating: IP30
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 790 g (1.75 lb)
Installation: DIN-rail mounting, wall mounting (with optional kit)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Hazardous Locations: ATEX, Class I Division 2
EMI: CISPR 32, FCC Part 15B Class A
Maritime: DNV-GL
EMC: EN 55032/24
Vibration: IEC 60068-2-6

FAQ

Q: How many Ethernet ports does this device support?
A: The device is equipped with 4 10/100BaseT (X) RJ45 ports and 1 100BaseFX multimode SC fiber port, which can meet the network connection needs of multiple devices.

Q: Does the Ethernet interface support port interrupt alarm?
A: Yes, Ethernet Interface supports port disconnection alarm, which can be configured through DIP switches to facilitate timely detection of network issues.

Q: What are the MAC table capacity and data cache size of the device?

A: The MAC table has a capacity of 1K and a packet buffer size of 384K, which can effectively handle network data streams and ensure stable transmission.

Q: What data processing method does the device use?
A: Using the 'Store and Forward' method to process data packets ensures data integrity and reliable transmission.
