Schneider MICROLOGIC 6.0 A Electronic Trip Unit

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
MICROLOGIC 6.0 A
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

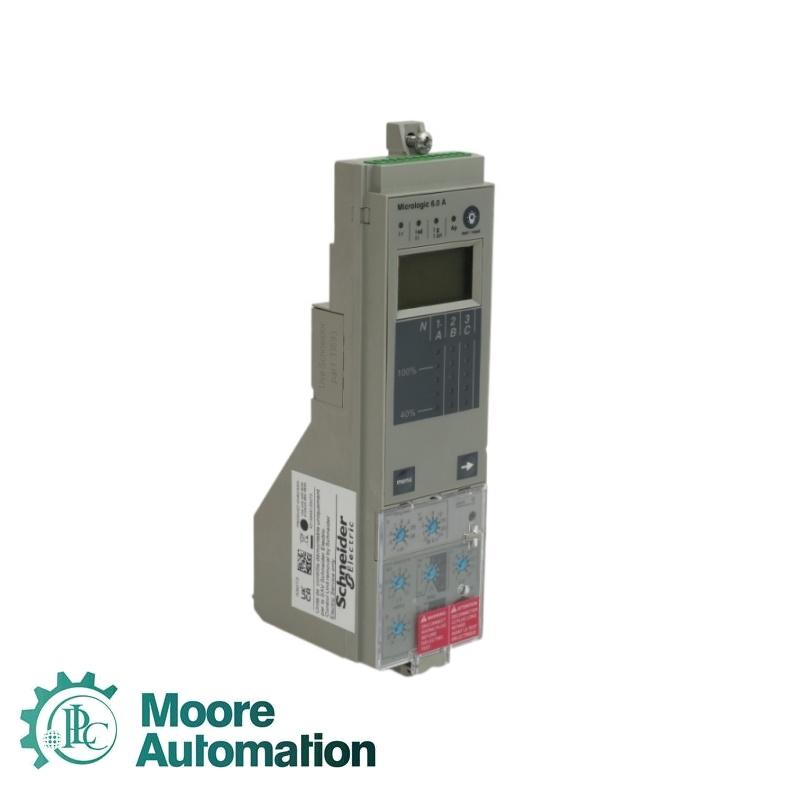

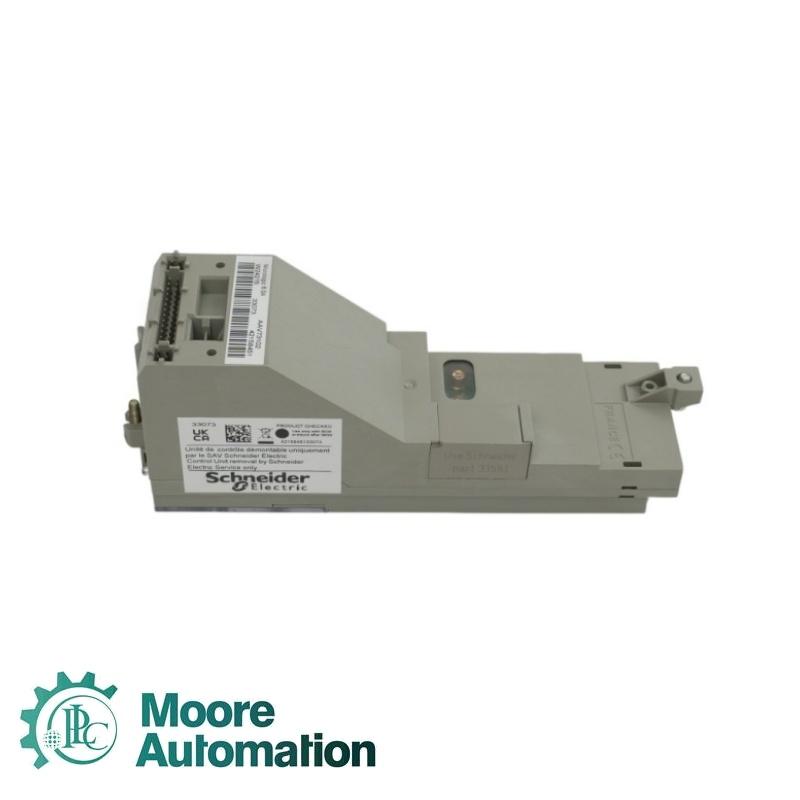

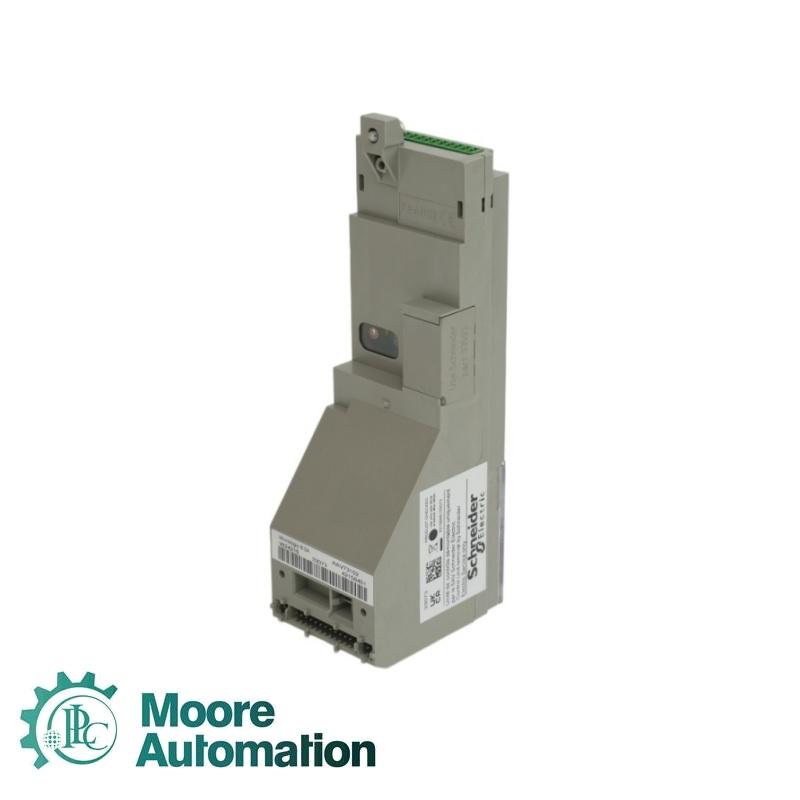

The Schneider MICROLOGIC 6.0 A is an electronic control and trip unit for the MasterPact NT and NW circuit-breaker range. It combines adjustable long-time, short-time, instantaneous and earth-fault protection with current measurement, a digital display, a three-phase bar graph and front test interfaces. Because the designation is used with more than one breaker configuration, the complete breaker type, sensor rating and mounting version should be verified before replacement.

Product typeElectronic control/trip unit

Trip unit designationMICROLOGIC 6.0 A

Circuit breaker rangeMasterPact NT and NW

Protection functionsLong-time, short-time, instantaneous and earth fault (LSIG)

Long-time pickup Ir0.4 to 1 × In

Short-time pickup Isd1.5 to 10 × Ir

Short-time delay tsd0 to 0.4 s

Instantaneous pickup Ii2 to 15 × In or Off

Earth-fault pickup IgSettings A to H and J

Earth-fault delay tg0 to 0.4 s

Current measurement range0.2 to 1.2 × In

Phase and neutral current accuracy±1.5%

Ground-fault current accuracy±10%

DisplayDigital display and three-phase bar graph

Test connectorFront test connector

Earth-fault testFront test button

Application Industry

Low-voltage switchboardsProvides LSIG protection functions for compatible MasterPact circuit-breaker installations.

Industrial feeder protectionSupports adjustable long-time, short-time and instantaneous protection for distribution feeders.

Earth-fault protected circuitsAdds adjustable ground-fault pickup and time-delay settings for coordinated protection.

Electrical distribution monitoringDisplays current information and phase loading for commissioning and routine checks.

FAQ

Which circuit breakers are compatible with MICROLOGIC 6.0 A?

This control unit belongs to the MasterPact NT and NW equipment range. Verify the complete breaker type, sensor rating and mounting version before selection or replacement.

What protection functions does MICROLOGIC 6.0 A provide?

It combines adjustable long-time, short-time, instantaneous and earth-fault protection for low-voltage distribution circuits.

What should be checked before commissioning MICROLOGIC 6.0 A?

Confirm the circuit-breaker type, current-sensor rating, pickup settings, time delays and earth-fault configuration, then complete the prescribed trip-unit tests.

How is earth-fault protection tested on MICROLOGIC 6.0 A?

Use the front earth-fault test button and approved test connection in accordance with the circuit-breaker maintenance procedure.

What current information can engineers view on MICROLOGIC 6.0 A?

The digital display and three-phase bar graph provide current information over the specified measurement range for loading and commissioning checks.
