Schneider ATV320U75N4B Altivar Machine ATV320 Variable Speed Drive

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
ATV320U75N4B
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

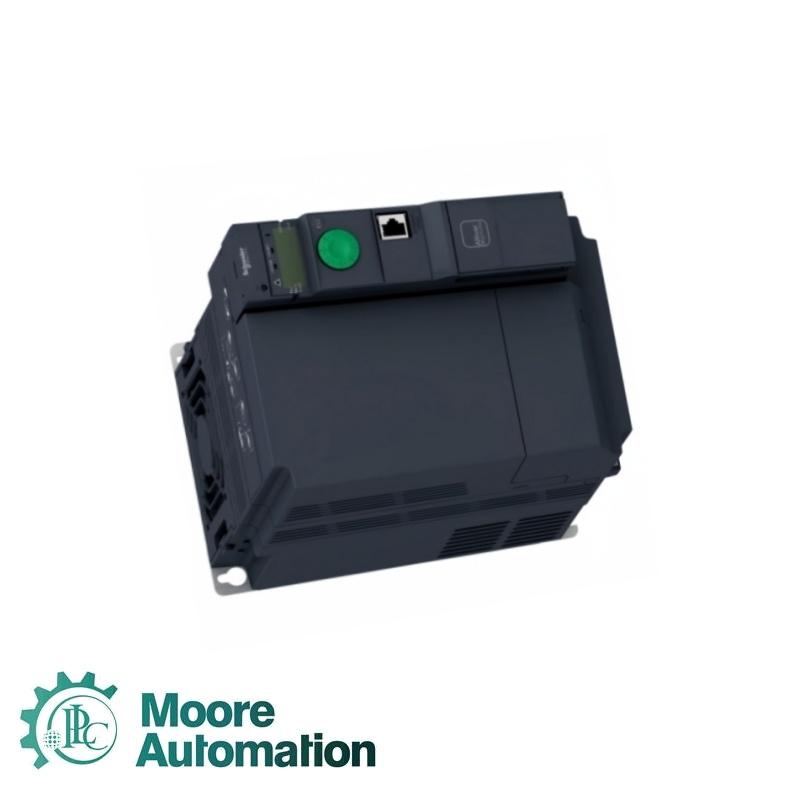

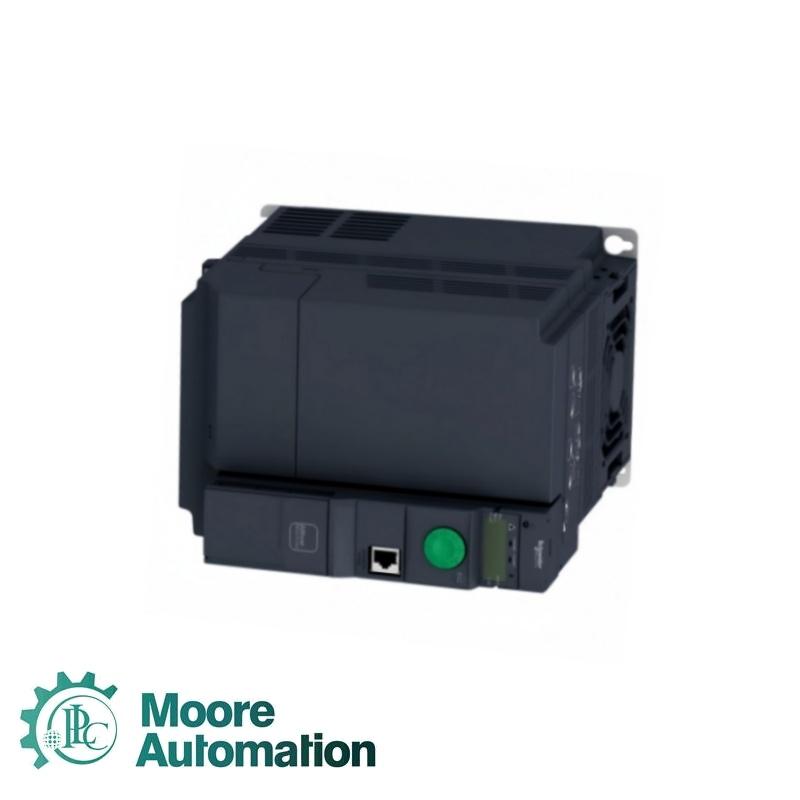

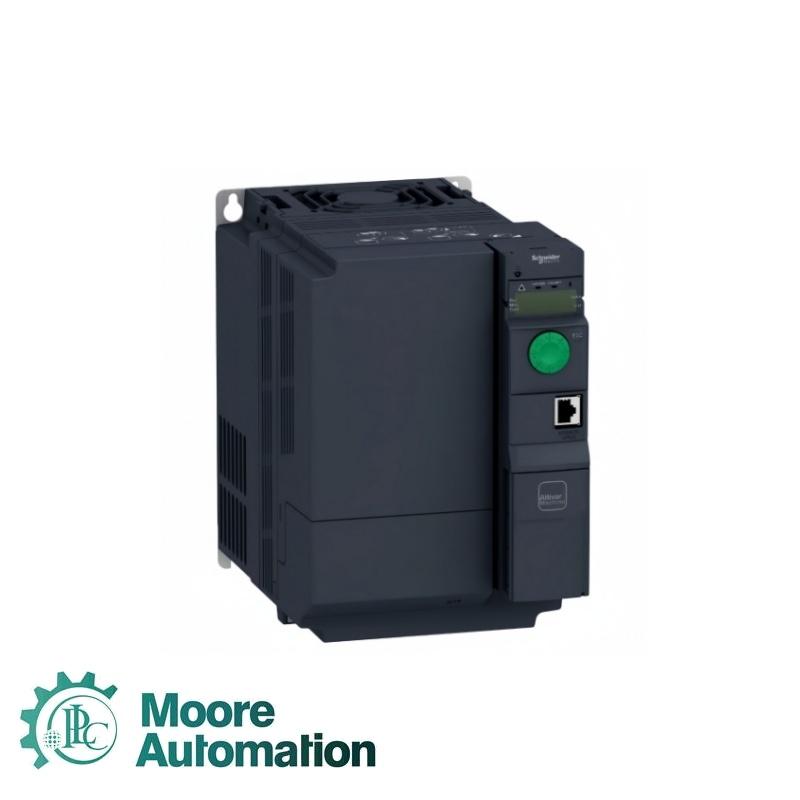

The Schneider ATV320U75N4B is a book-format Altivar Machine ATV320 variable speed drive for a 7.5 kW heavy-duty three-phase motor supplied at 380–500 V AC. It controls synchronous and asynchronous motors and provides built-in Modbus serial and CANopen communication.

Product codeATV320U75N4B

Product typeVariable speed drive

Product rangeAltivar Machine ATV320

VariantStandard version

Mounting modeWall mount

Rated supply voltage380–500 V AC, 3 phase, −15/+10%

Motor power7.5 kW, heavy duty

Nominal output current17.0 A

Network frequency50–60 Hz

Maximum output frequency599 Hz

Degree of protectionIP20

EMC filterClass C2 integrated

Dimensions150 × 308 × 232 mm (W × H × D)

Net weight4.4 kg

Operating temperature−10 to +50 °C without derating; +50 to +60 °C with derating

Built-in protocolsModbus serial; CANopen

Application Industry

Material handlingVariable-speed control for conveyors and other material-transfer mechanisms in complex machinery.

Packaging machineryMotor-speed and torque control for carton packers and automated packaging equipment.

Textile machineryAdjustable-speed control for continuous textile processes and winding functions.

Hoisting and material workingDrive control for lifting mechanisms, mechanical actuators and material-processing machines.

FAQ

What supply and motor rating should be matched before installing ATV320U75N4B?

Use a three-phase 380–500 V supply and verify that the motor is rated for a 7.5 kW heavy-duty application and the required output current.

How must ATV320U75N4B be mounted for normal cooling?

Mount the unit vertically within ±10° on a wall or panel and maintain the clearances specified in the installation instructions.

Which built-in communication interfaces are available on ATV320U75N4B?

Modbus serial and CANopen are built in; optional communication modules support additional industrial networks.

What ambient temperature can ATV320U75N4B operate in without derating?

The specified range is −10 to +50 °C without derating; operation from +50 to +60 °C requires derating.

Which safety-related functions are supported by ATV320U75N4B?

Safe Torque Off, Safe Stop 1 and Safely Limited Speed are supported; commissioning must follow the applicable safety manual and risk assessment.
