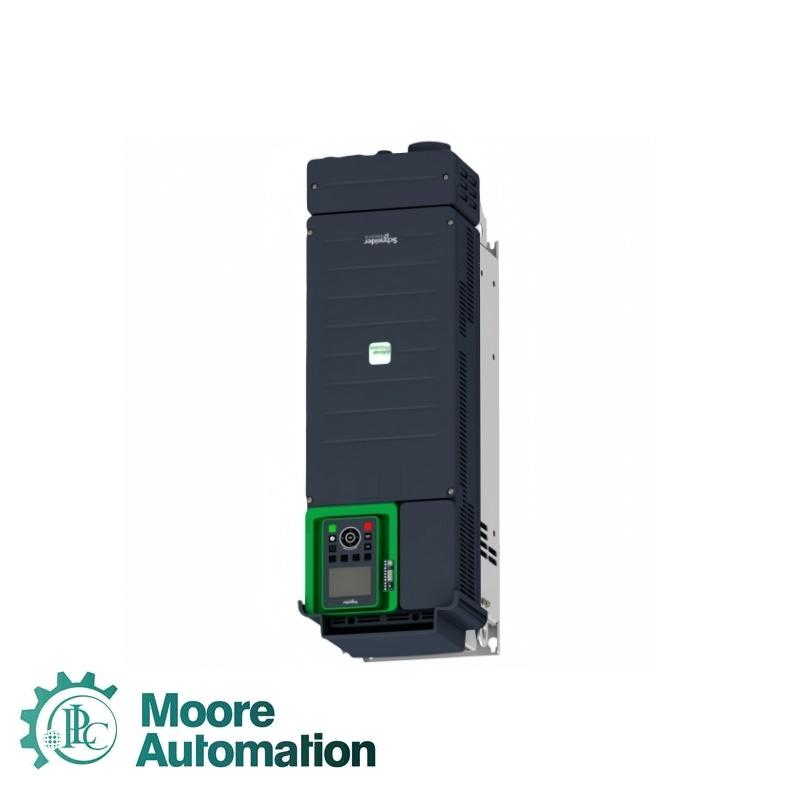

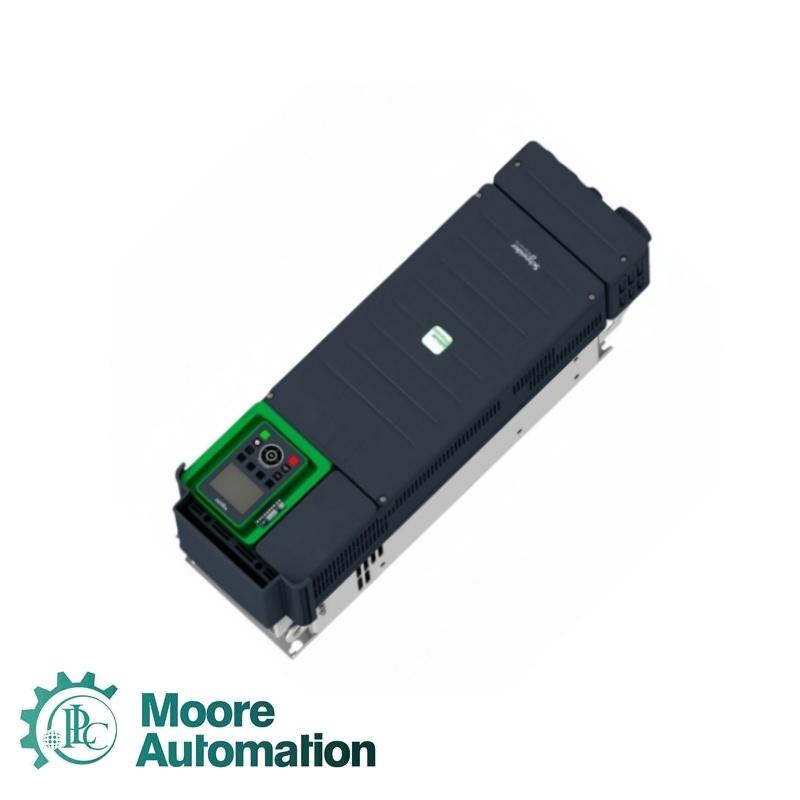

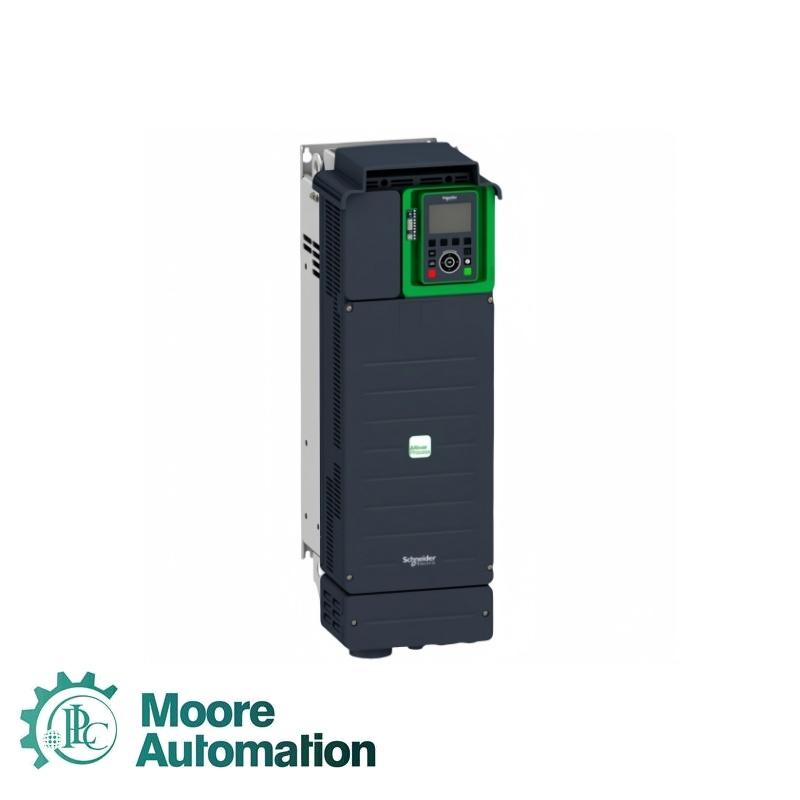

Schneider Electric ATV630C16N4 Altivar Process ATV630 Variable Speed Drive

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

Schneider Electric ATV630C16N4 is an Altivar Process ATV600 variable speed drive for process and utility applications. It is rated 160 kW / 250 hp for normal duty or 132 kW / 200 hp for heavy duty on a 380 to 480 V three-phase supply. The standard unit is IP00 and integrates process monitoring, power measurement, Ethernet and Modbus communications, and SIL 3 safe torque off.

Product rangeAltivar Process ATV600

Product typeVariable speed drive

Device short nameATV630

VariantStandard version

Product applicationProcess and utilities

Motor typeAsynchronous and synchronous motors

Mounting modeWall mount

Cooling methodForced convection

IP degree of protectionIP00

Optional protectionIP21 with kit VW3A9704

EMC filterIntegrated EN/IEC 61800-3 category C3, 150 m

Supply phases3 phases

Rated supply voltage380 to 480 V (-15% / +10%)

Supply frequency50 to 60 Hz (-5% / +5%)

Motor power, normal duty160 kW / 250 hp

Motor power, heavy duty132 kW / 200 hp

Line current, normal duty284 A at 380 V; 262 A at 480 V

Line current, heavy duty237 A at 380 V; 213 A at 480 V

Continuous output current302 A at 2.5 kHz normal duty; 250 A at 2.5 kHz heavy duty

Maximum transient current332.2 A for 60 s normal duty; 375 A for 60 s heavy duty

Output frequency0.0001 to 0.5 kHz

Nominal switching frequency2.5 kHz

Adjustable switching frequency2 to 8 kHz; derating above 2.5 kHz

Safety functionSTO, SIL 3

Communication protocolsEthernet, Modbus serial and Modbus TCP

Analogue inputs / outputs3 / 2

Discrete inputs / relay outputs8 / 3

Dimensions (W x H x D)320 x 852 x 390 mm

Product weight82 kg

Operating temperature-15 to 50 °C without derating; 50 to 60 °C with derating

Storage temperature-40 to 70 °C

Relative humidity5 to 95% without condensation

Application Industry

Process and utility motor controlControls high-power asynchronous or synchronous motors in process and utility installations.

Pumping systemsSupports process pumping duties, including embedded monitoring and multi-pump management functions.

Energy and asset monitoringProvides embedded power measurement, energy dashboards and drive-condition monitoring.

Protected cabinet installationsIP00 construction is intended for integration into a correctly ventilated electrical enclosure.

FAQ

What supply is compatible with ATV630C16N4?

Use a three-phase supply rated from 380 to 480 V and 50 to 60 Hz, within the specified voltage and frequency tolerances.

Which motors can ATV630C16N4 control?

It supports asynchronous motors and permanent-magnet synchronous motors, with separate normal-duty and heavy-duty power ratings.

How should ATV630C16N4 be installed when IP protection is required?

The standard unit is IP00 and should be mounted in a suitable protected enclosure; an approved kit can provide IP21 protection.

Which communication options are available for ATV630C16N4?

Built-in interfaces support Ethernet, Modbus serial and Modbus TCP, while option cards extend integration to additional industrial networks.

What checks are required before commissioning ATV630C16N4?

Verify supply voltage, motor nameplate data, duty selection, ventilation clearances, grounding, control wiring and the safe-torque-off circuit before energizing.
