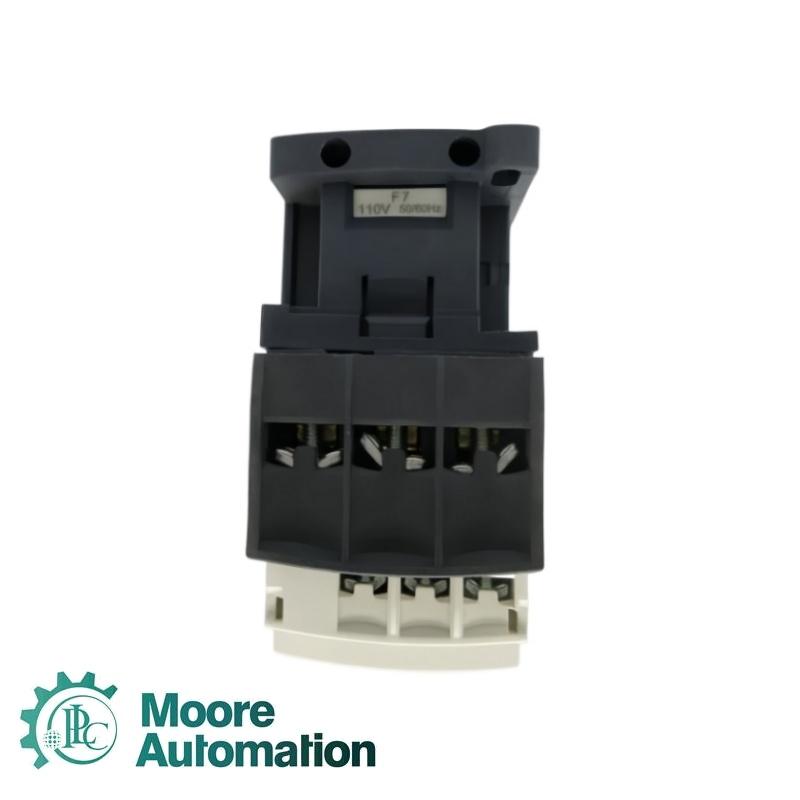

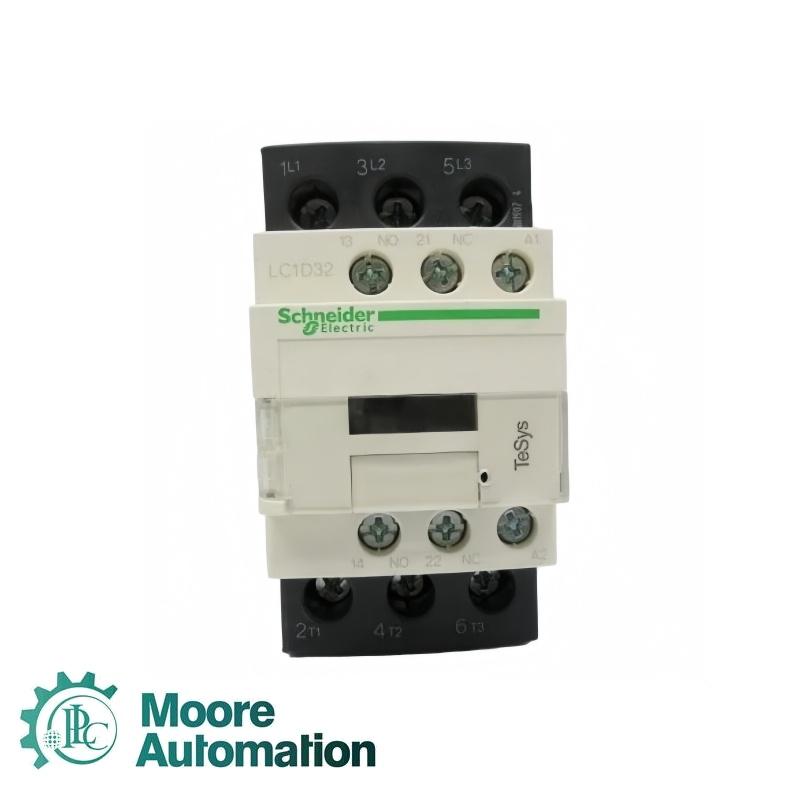

 Schneider Electric LC1D32F7C TeSys D Contactor
LC1D32F7C LC1D32F7C LC1D32F7C

Schneider Electric LC1D32F7C TeSys D Contactor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    France

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications

Schneider Electric LC1D32F7C is a TeSys D three-pole contactor based on the official LC1D32F7 reference, rated 32 A for AC-3 and AC-3e duty up to 440 V. The published configuration uses a 110 V AC 50/60 Hz coil, three normally open power poles and integrated one normally open plus one normally closed auxiliary contact. Screw-clamp terminals support standard panel wiring, and engineers should confirm the coil supply, motor rating, utilization category and terminal arrangement before installation or replacement.

Manufacturer
Schneider Electric
Requested designation
LC1D32F7C
Official base reference
LC1D32F7
Product range
TeSys D / TeSys Deca
Pole configuration
3P, 3 NO
Utilisation category
AC-3 / AC-3e
Rated operational current
32 A at up to 440 V
Motor power
15 kW at 400 V
Control circuit voltage
110 V AC, 50/60 Hz
Built-in auxiliary contacts
1 NO + 1 NC
Terminal type
Screw clamp terminals
Rated impulse voltage
6 kV
Overvoltage category
III
Pollution degree
3
Mechanical durability
15 million cycles
Rated breaking capacity
550 A at 440 V power circuit
Average impedance
2 mΩ at 50 A, 50 Hz
Coil technology
Without built-in suppressor module

Application Industry

01
Motor control centersSwitch three-phase motors in AC-3 duty within the published current and power ratings.
02
Industrial machineryProvide electrically controlled isolation and switching for machine power circuits.
03
HVAC equipmentControl compressors, pumps and fans when the selected motor rating matches the contactor data.
04
Panel replacementMatch the coil voltage, pole configuration, auxiliary contacts and terminal layout before installation.

FAQ

Which coil supply is required for LC1D32F7C?
Use a 110 V AC control supply at 50 or 60 Hz and verify the control-circuit protection before energizing.
What motor duty is suitable for LC1D32F7C?
It is intended for three-phase AC-3 or AC-3e motor switching up to the published 32 A rating at 440 V.
What auxiliary contacts are built into LC1D32F7C?
One normally open and one normally closed auxiliary contact are integrated for control and status logic.
How should LC1D32F7C be wired?
Connect the three power poles, coil terminals and auxiliary contacts according to the official terminal diagram, with power isolated during work.
What must be matched when replacing LC1D32F7C?
Confirm the official base reference, coil voltage and frequency, pole arrangement, utilization category, current rating and screw-terminal layout.

Company Service

✓ Model ValidationFull suffix and system compatibility review
⊖ Label InspectionClear identification and certification-label checks
▣ Secure PackingProtected packaging for electronic assemblies
↗ Global DeliveryTracked international shipping from stock
◇ Warranty SupportResponsive after-sales handling
▤ Document ServiceOfficial manuals and certificates when available
