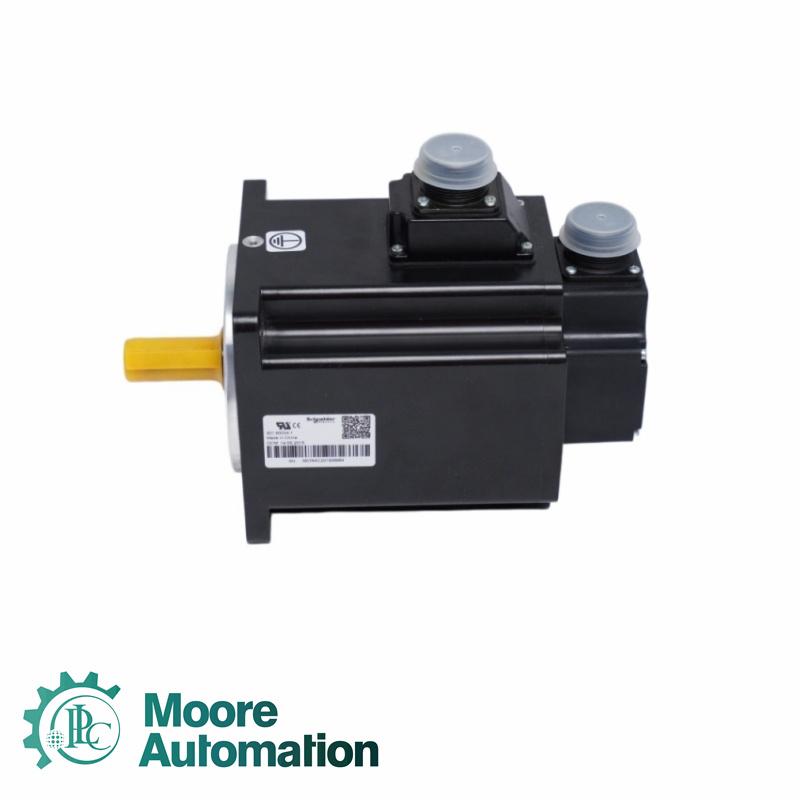

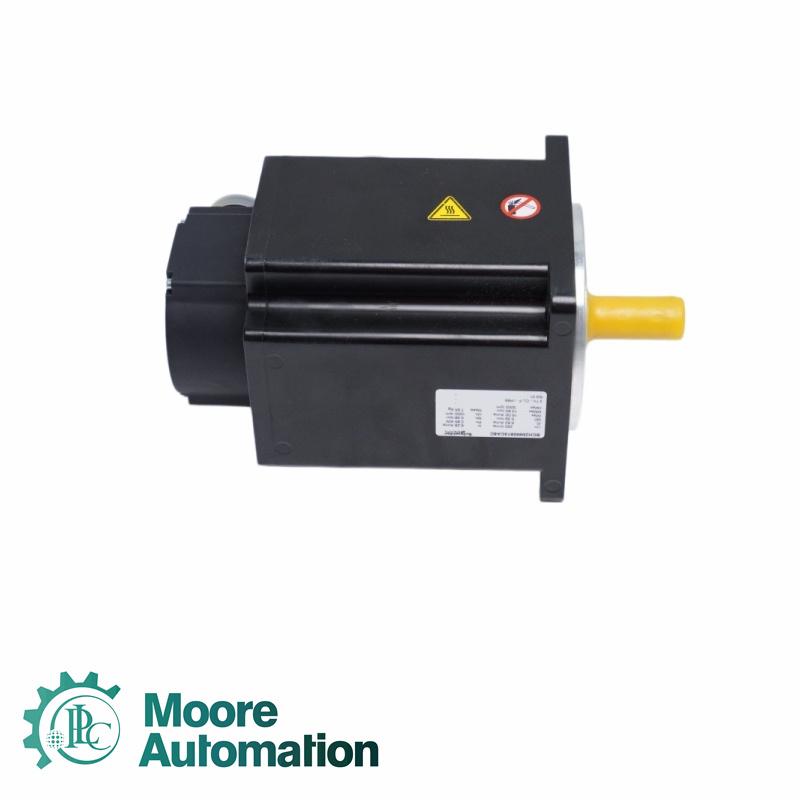

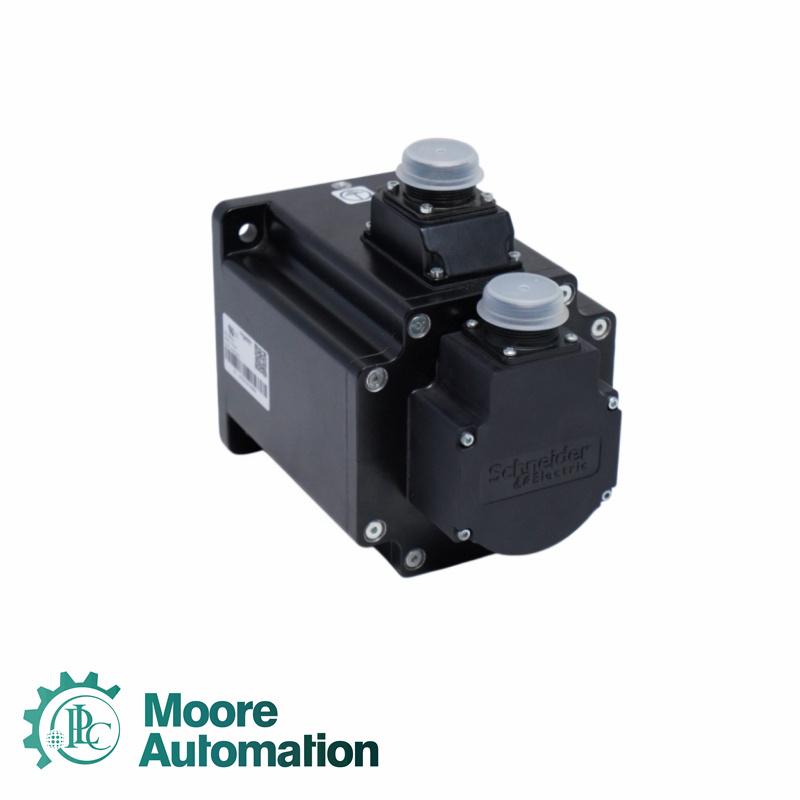

Schneider BSH1402P21A2A Servo motor

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Have a quick look

The Schneider Electric BSH1402P21A2A is a high-performance AC servo motor belonging to the Lexium motion control series. This motor features high power density and excellent dynamic acceleration performance, and is often used with servo drives such as the Lexium 05, Lexium 15, or Lexium 32. It is widely used in automation applications such as high-precision positioning and material handling.

Quick details
Brand name:	Schneider
Model:	BSH1402P21A2A
Warranty period:	1 year
Condition:	100% original brand
Transportation period:	DHL FEDEX EMS UPS TNT

Welcome to Inquiry John Yang for more information

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

Key Product Specifications

Sizing Reference	BSH1402P
Maximum Mechanical Speed	4000 rpm
Shaft End	Untapped
Shaft Diameter	24 mm
Shaft Length	50 mm
Second Shaft End	Without second shaft end
IP Degree of Protection	IP65 standard; IP67 with IP67 kit
Speed Feedback Resolution	131072 points/turn
Feedback Type	Single turn SinCos Hiperface
Holding Brake	Without
Mounting Support	International standard flange
Electrical Connection	Straight connectors
Range Compatibility	Lexium 15; Lexium 05
Maximum Supply Voltage	480 V
Network Number of Phases	Three phase
Motor Flange Size	140 mm
Number of Motor Stacks	2
Continuous Stall Current	13.2 A
Maximum Permanent Current	44.1 A
Maximum Continuous Power	4.2 W
Torque Constant	1.47 N·m/A at 120 °C
Back EMF Constant	101 V/krpm at 120 °C
Rotor Inertia	12.68 kg·cm²
Stator Resistance	0.6 Ω at 20 °C
Stator Inductance	7.4 mH / 7.71 mH at 20 °C
Stator Electrical Time Constant	12.33 ms / 12.85 ms at 20 °C
Maximum Radial Force Fr	1680 N at 3000 rpm; 1930 N at 2000 rpm; 2430 N at 1000 rpm
Maximum Axial Force Fa	0.2 × Fr
Cooling Type	Natural convection

Application

Packaging Plant: Drive shafts in palletizers, cartoners, and wrapping machines.

Machining Plant: Control CNC multi-axis motion and cutting positioning.

Textile Plant: Drive winding, weaving, and tension control systems.

Food Processing Plant: Control servo axes in mixing and sorting lines.

Printing Plant: Synchronize printing and roll handling systems.

Our service for you

Q: How about the warranty ?

A: Moore provide 12 months warranty for all the goods from us.

Q: Other supplier have a better price than yours.

A: "To create more benefit fir clients"is our belief, if you have a better price , please let we know , we will try best to meet your price and support you.

Q: We have not cooperation before , how we can believe you ?

A: For the in stock products, we can take pictures and videos before you process payment.

Q: What about shipment ?

A: We have DHL/FEDEX/UPS/CHIRLINE/Aramex,you can use your own freight forwarder for transportation.

Frequently Asked Questions (FAQ)

Q: What is the maximum mechanical speed of BSH1402P21A2A?
A: Its maximum mechanical speed is 4000 rpm.

Q: What is the shaft diameter of BSH1402P21A2A?
A: Its shaft diameter is 24 mm.

Q: What is the continuous stall current of BSH1402P21A2A?
A: Its continuous stall current is 13.2 A.

Q: What is the torque constant of BSH1402P21A2A at 120 °C?
A: Its torque constant is 1.47 N·m/A.

Q: What is the maximum supply voltage of BSH1402P21A2A?
A: Its maximum supply voltage is 480 V.
