Product Brief

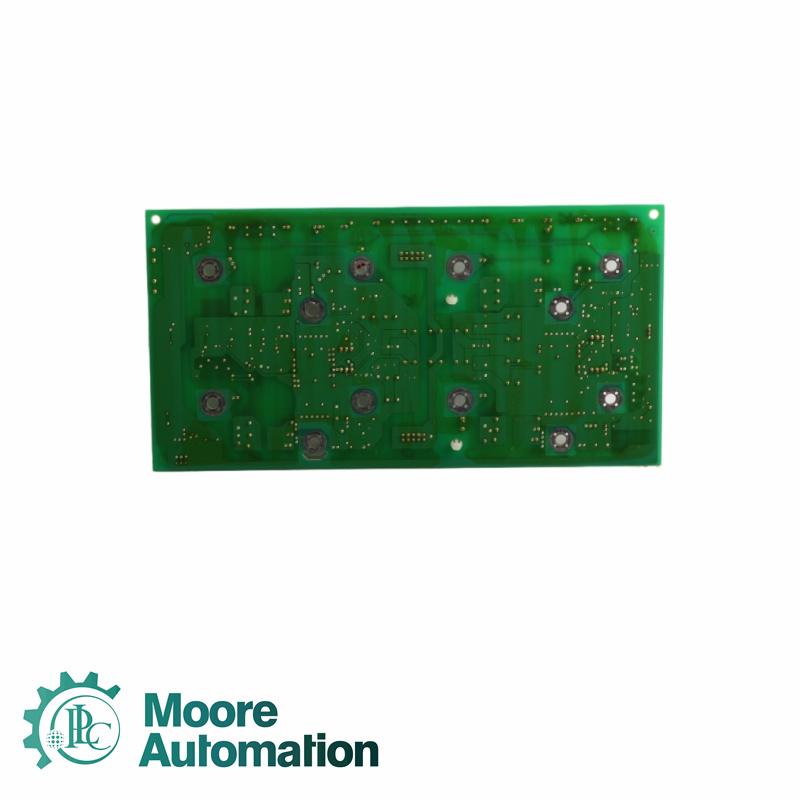

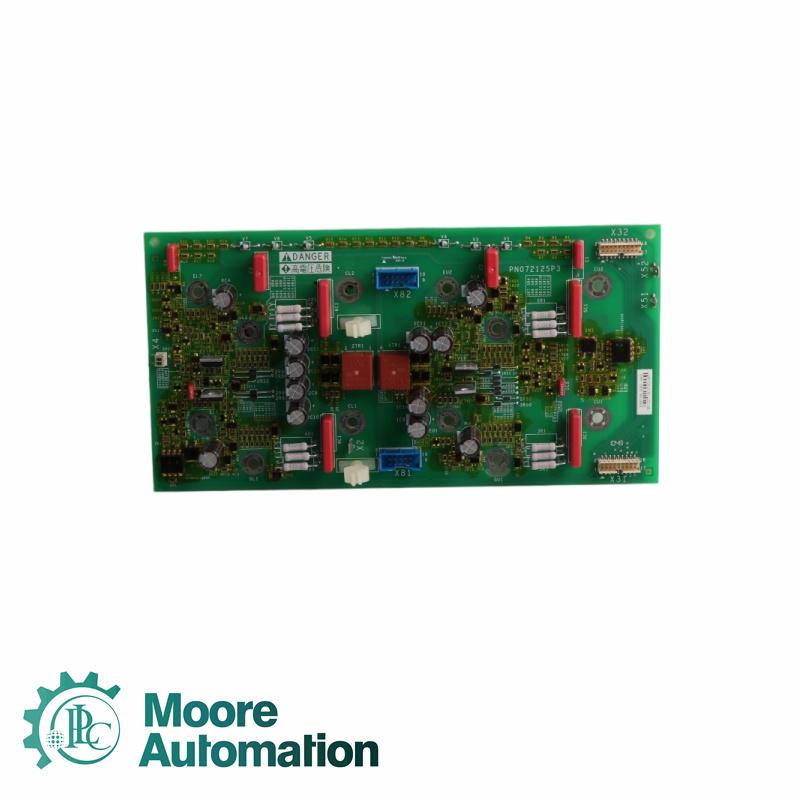

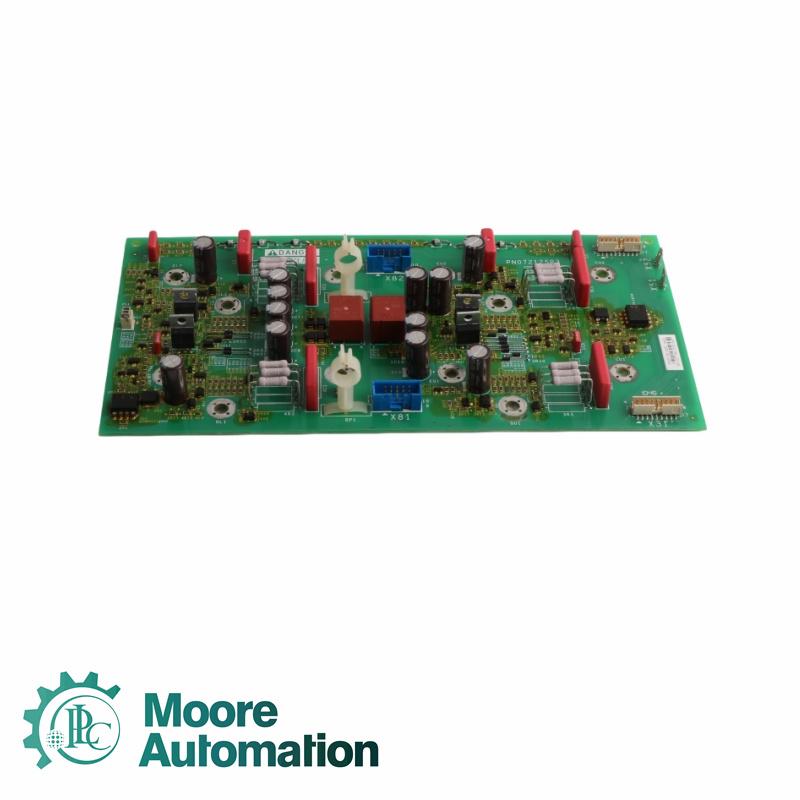

The Schneider NHA75769_02 is a power board for the Altivar Process frequency converter series. It is primarily used in high-power industrial frequency converters from the Schneider Altivar Process ATV600 series (such as the ATV630) and ATV900 series.
Main Parameters
|
Compatible Drive Power |
250 kW |
|
Rated Grid Voltage |
Three-phase 380–480 VAC, 50/60 Hz |
|
DC Bus Voltage |
540–680 VDC |
|
Safety Certifications |
Compatible with host system meeting CE, UL, and TÜV standards |
|
Operating Temperature |
-15°C to +50°C (without derating); up to +60°C (with derating) |
|
Safe Discharge Time |
Minimum 15 minutes |
What Moore can do for you?
1.100% original product, 100% quality assurance and the more competitive price.
We send you a new product asking zero cent!
2.Thoughful service
Professional after-sales service.
3.Quick Shipping
We have large quantities of inventories, can ship immediately.
FAQ
Q: What is the maximum motor power that NHA75769_02 can support?
A: The maximum applicable motor power is 250 kW.
Q: What is the rated three-phase AC grid voltage required for NHA75769_02 operation?
A: It requires a rated three-phase AC voltage of 380 to 480 VAC.
Q: What is the DC bus operating voltage range of NHA75769_02?
A: The DC bus operates in the range of 540 to 680 VDC.
Q: What is the maximum ambient temperature for NHA75769_02 without derating?
A: The maximum operating ambient temperature without derating is 50°C.
Q: What is the minimum safe discharge time after power-off for NHA75769_02?
A: The minimum required discharge time after shutdown is 15 minutes.
Application
Electronics plants: assemble electronic components and circuit boards
Machinery plants: supply power for automation equipment and control cabinets
Electrical control plants: build low- and high-voltage distribution and control cabinets
Home appliance plants: assemble core power modules for large appliances
Automotive plants: manufacture vehicle electronic systems and production line hardware
|
