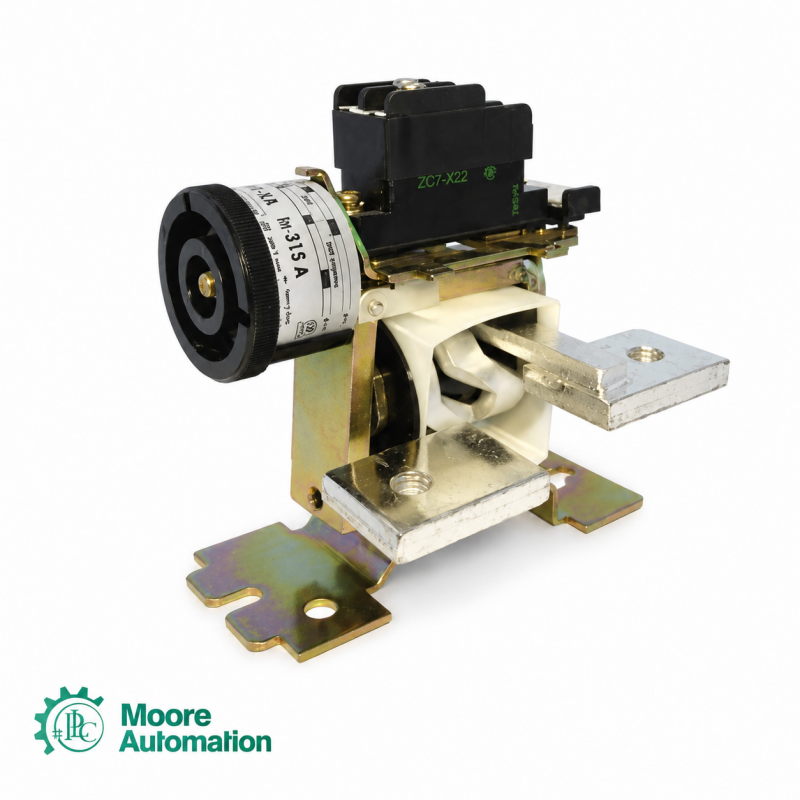

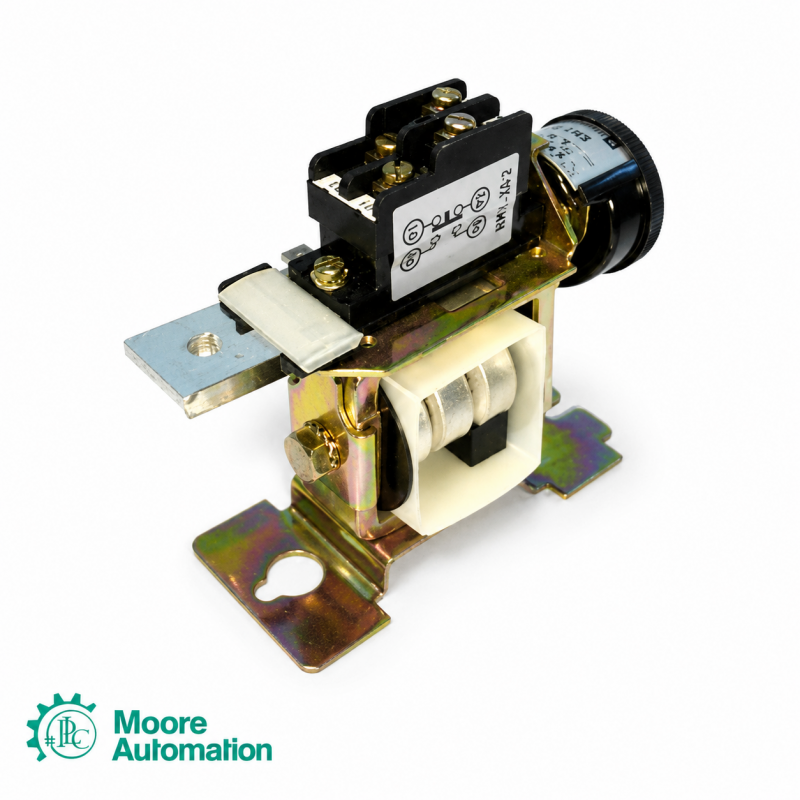

Schneider RM1-XA315 Single-Pole Magnetic Overcurrent Relay

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
FRANCE
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
FRANCE
Lead Time:
3-5 days

Product Detail

Specifications

The Schneider RM1-XA315 is a non-latching, single-pole magnetic overcurrent relay designed to detect current peaks that exceed a preset permissible level. It is intended for circuits that normally operate without substantial current peaks, including starter and resistor circuits, and for monitoring the starting-current peaks of slip-ring motors. The relay provides instantaneous operation rather than delayed thermal-overload protection. For the RM1-XA315, the recommended motor-current range is 146–230 A, while the adjustable magnetic trip range is 250–800 A. The device supports AC or DC power circuits and is intended for low-frequency switching duties rather than frequent cycling.

Recommended Motor
Operating-Current Range 146–230 A

Adjustable Trip-Current Range 250–800 A

Maximum Continuous Current 315 A

Maximum Rated Operational Voltage 600 V AC or DC

Operating Temperature −40 to +60°C

Storage Temperature −60 to +70°C

Application Industry

Industrial Motor-Control Systems Detects excessive current in motor circuits where the normal operating profile does not include large recurring current peaks.

Crane and Hoist Systems Provides overcurrent monitoring for slip-ring motors and resistor-based starting equipment used in lifting and material-handling installations.

Steel and Metal-Processing Plants Protects or supervises motor-starting and resistor circuits used in rolling mills, handling equipment and heavy-duty drives.

FAQ

What is the Schneider RM1-XA315 designed to detect?

It detects current peaks that exceed a preset permissible level in circuits without substantial recurring current peaks.

What is the adjustable trip-current range of the Schneider RM1-XA315?

The RM1-XA315 provides an adjustable magnetic trip-current range of 250–800 A.

Does the Schneider RM1-XA315 provide thermal-overload protection?

No. It is a magnetic overcurrent relay that operates instantaneously rather than using delayed thermal-overload protection.

Can the Schneider RM1-XA315 be used with AC and DC power circuits?

Yes. Its maximum rated operational voltage is 600 V AC or DC, subject to the application’s protection and coordination requirements.

Company Service

✓ Genuine Parts 100% original with full traceability

→ Fast Delivery Global shipping directly from stock

⚙ Tech Support Expert assistance available 24/7

+ Custom Solutions Tailored configurations for your project

◆ Warranty Comprehensive after-sales protection

▤ Documentation Complete technical resource library

Need Schneider RM1-XA315?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →

Email sales6@askplc.com

Phone / WhatsApp +86-17359287459

Address 32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
