Schneider AP4423 Rack Automatic Transfer Switch

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Item NO.:
AP4423
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 year
Product Origin:
France
Lead Time:
3-5 days

Product Detail

Specifications

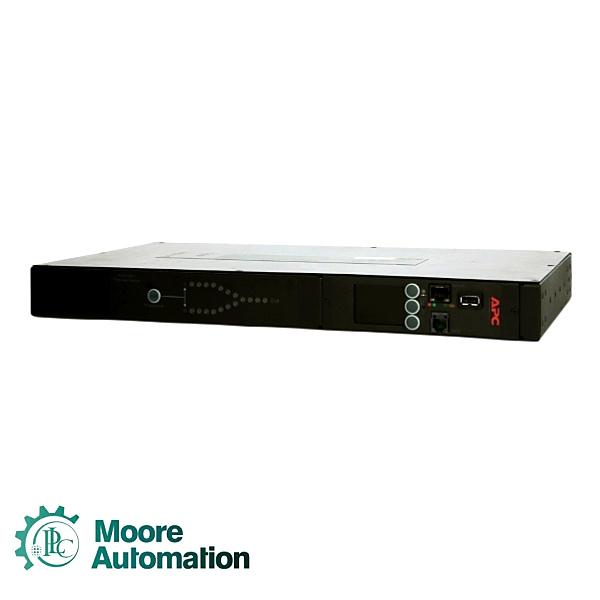

The Schneider AP4423 is a 1U rack-mount automatic transfer switch in the APC by Schneider Electric AP44xx Series. It supplies redundant power to single-corded IT equipment by monitoring two AC sources and transferring the load when the active source moves outside configured limits. The Schneider AP4423 is rated for 230 Vac and 16 A, with two IEC C20 inputs, eight IEC C13 outlets, one IEC C19 outlet, network management, and a maximum 10 ms switching process.

Product typeRack automatic transfer switch

Product seriesAPC by Schneider Electric AP44xx Series

Rated voltage230 Vac, single phase

Rated current16 A

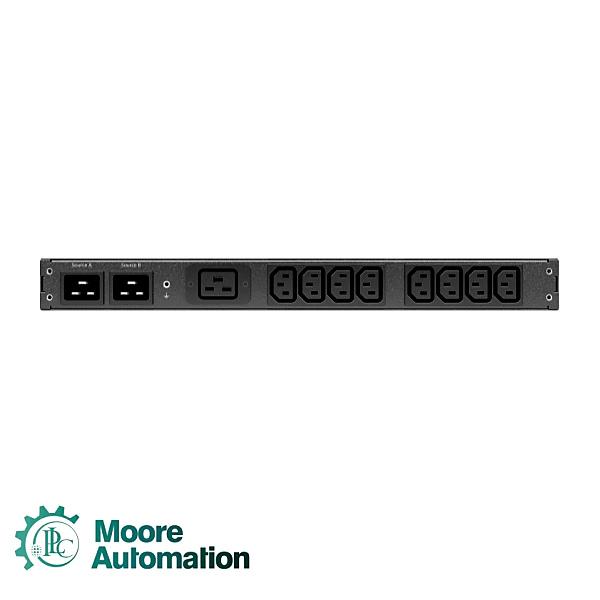

Input connections2 × IEC 60320 C20

Output connections8 × IEC C13; 1 × IEC C19

Network frequency50/60 Hz

Switching process10 ms maximum

Frequency-deviation settings±3, ±5, or ±10 Hz

Voltage transfer limit16–25 V configurable

Application Industry

Data-center server racksProvides redundant source transfer for single-corded servers and storage equipment.

Network and telecom cabinetsMaintains power continuity for switches, routers, and communications hardware.

Edge-computing installationsSupports compact 1U power-source redundancy at distributed IT sites.

Industrial IT enclosuresTransfers critical control and monitoring equipment between two AC sources.

FAQ

Is Schneider AP4423 still an active product?

Schneider Electric lists AP4423 as discontinued and identifies AP4423A as the recommended replacement; confirm replacement compatibility before ordering.

What input and outlet connections does AP4423 use?

It uses two IEC C20 source inputs and provides eight IEC C13 outlets plus one IEC C19 outlet.

Will it protect single-corded equipment from a source failure?

Yes. The Rack ATS monitors two sources and transfers the connected load when the active source is disqualified and the alternate source is available.

Can AP4423 be managed over a network?

Yes. The AP44xx Rack ATS platform includes network-management functions for configuration, alarms, status, and event information.

Can Moore Automation verify the unit before shipment?

Yes. Moore Automation can check the model and visible condition, provide label photographs, and confirm available manuals and shipment details.

Company Service

✓ Model VerificationPart-number and configuration review

◉ Quality InspectionLabel and condition checks before dispatch

↗ Global ShippingSecure export packing with tracking

⌘ Technical SupportCompatibility and installation assistance

◇ Warranty ServiceResponsive after-sales handling

▤ Document SupportOfficial manuals and datasheets when available

Need Schneider AP4423 Rack Automatic Transfer Switch?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →

Emailsales6@askplc.com

Phone / WhatsApp+86-17359287459

Address32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
