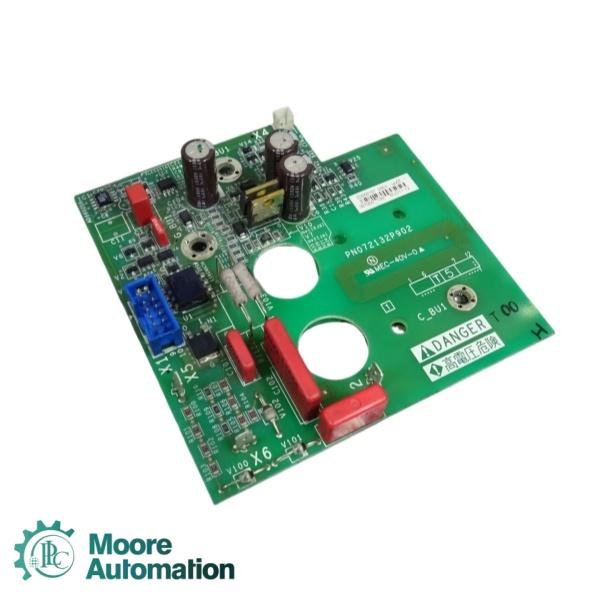

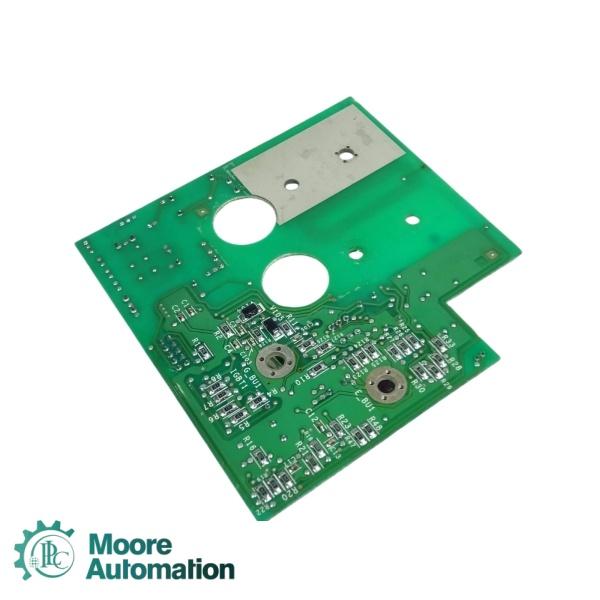

Schneider PN072132P902 3D658187G901 Component Board

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

The Schneider PN072132P902 3D658187G901 is a heavy-duty industrial frequency converter driver board and inverter brake unit drive board. This complex printed circuit board assembly handles internal gate firing signals, controls dynamic braking sequences, and balances internal logic rail power for high-capacity motor variable speed drive enclosures.

(1) Operating Voltage: Typically 400V to 690V AC mains rectifications

(2) Logic Bus Voltage: Inputs driven by nominal +5V, +15V, and +24V DC logic rails from master power boards

(3) Operational Temperatures: Built for internal drive cabinets from 0°C up to +50°C

(4) Cooling Profile: Built as a fanless, sink-interfaced logic board utilizing surrounding heat dissipation tracks

Application

❖ Variable Frequency Drive (VFD) Repair: Implemented as a drop-in replacement internal sub-board for large Schneider Electric speed control enclosures.

❖ Heavy Motor Braking Units: Deployed in mining hoists, industrial cranes, and material handling systems requiring coordinated brake chopper control loops.

❖ HVAC Fan & Pumping Backplanes: Installed inside large industrial water pumping networks or air-handling systems to manage stable continuous motor vector tracking.

Faq

Q1: What is Schneider Electric known for in the industrial automation and energy management sectors?

A1: Schneider Electric is a global leader in energy management and industrial automation, known for delivering integrated solutions that connect hardware, software, and services to optimize efficiency, reliability, and sustainability across industries such as manufacturing, infrastructure, data centers, and commercial buildings.

Q2: What are some of the major product families offered by Schneider Electric?

A2: Schneider Electric offers widely recognized product families including Modicon PLCs for industrial control, Altivar variable frequency drives, Telemecanique contactors and relays, Merlin Gerin circuit breakers and switchgear, Square D electrical distribution products, APC uninterruptible power supplies, and Clipsal wiring devices.

Q3: How does Schneider Electric help customers improve energy efficiency?

A3: Schneider Electric helps customers improve energy efficiency through its EcoStruxure platform, which uses IoT-enabled sensors, smart meters, variable speed drives, and analytics software to monitor, control, and reduce energy consumption by up to 30 percent, particularly in motor-driven applications like pumps, fans, and compressors.
