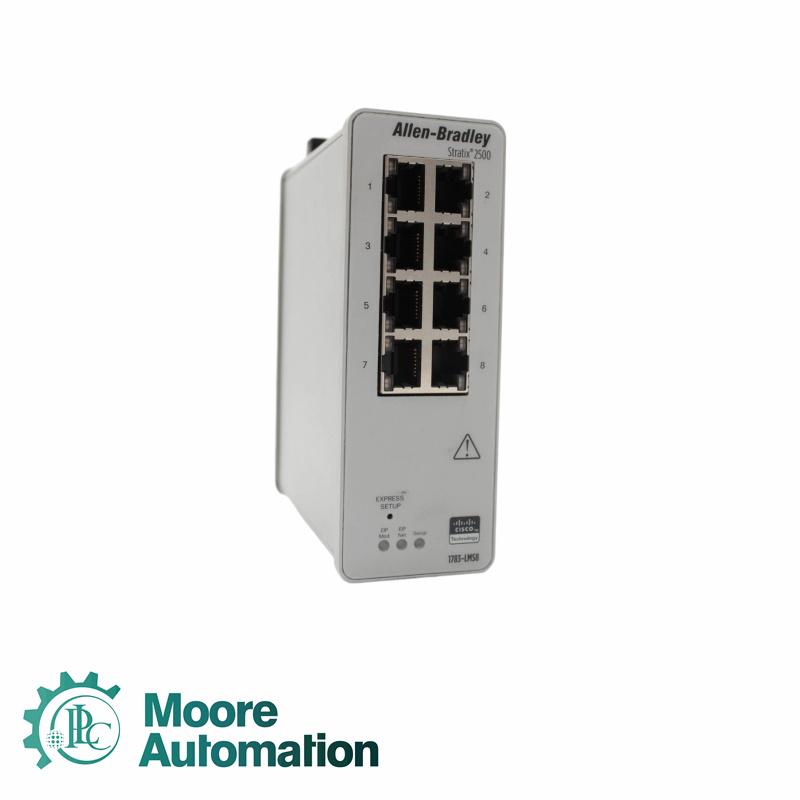

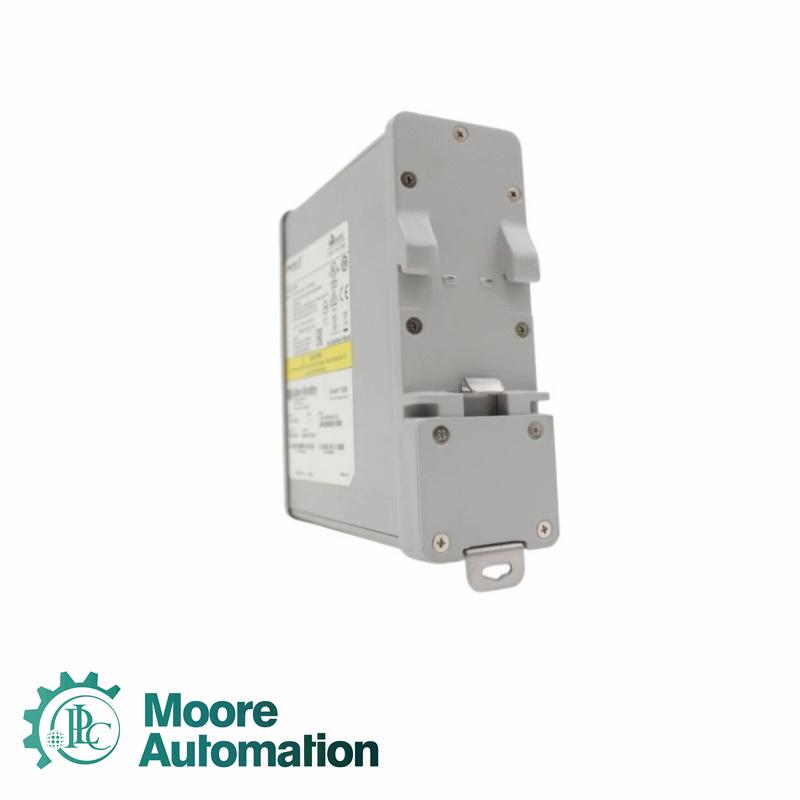

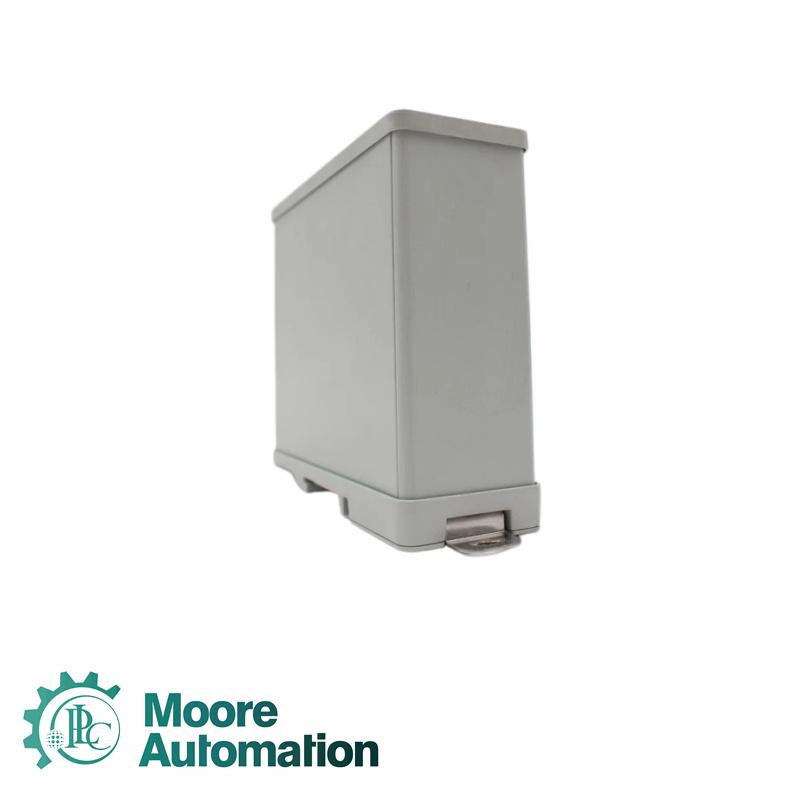

PLC 1783-LMS8 Stratix 2500 Lightly Managed Switch

PLC 1783-LMS8 Stratix 2500 Lightly Managed Switch

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

John Yang
Email: sales3@askplc.com	Mobile(WhatsApp): 86-18150117685

Product Brief

Stratix 2500 lightly managed switches provide a secure switching infrastructure for harsh environments. You can connect the switches to network devices such as servers, routers, and other switches. In industrial environments, you can connect Ethernet-enabled industrial communication devices, including programmable logic controllers (PLCs), human machine interfaces (HMIs), drives, sensors, and I/O.

Main Parameters

Power Input	12–24 V DC, 0.4–0.2 A (SELV)
Power Consumption	4.2 W
Power Dissipation	4.2 W
Ethernet Connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair Category 5e minimum cable (TIA 568-B.1) or Category 5 cable (ISO/IEC 24702)
DC Power Connection Wire Size	1.3–0.82 mm² (16–18 AWG) solid or stranded copper wire, rated at 30°C (86°F) or higher above ambient
Ground Connection Wire Size	5.2–3.3 mm² (10–12 AWG) solid or stranded copper wire
Power Terminal Screw Torque	0.19 N·m (1.7 in·lb)
Functional Ground Lug Screw Torque	0.51 N·m (4.5 in·lb)
Wiring Category	Category 2 (power ports); Category 2 (communication ports)
Enclosure Type	Open-style (no enclosure)
North American Temperature Code	T4
ATEX Temperature Code	T4
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Maximum Ambient Temperature	60°C (140°F)
Maximum Surrounding Air Temperature	60°C (140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5%–95% RH, non-condensing (IEC 60068-2-30)
Operating Shock	30 g
Non-operating Shock	30 g
Emissions Standard	IEC 61000-6-4
ESD Immunity	IEC 61000-4-2, 6 kV contact discharge, 8 kV air discharge
Radiated RF Immunity	10 V/m (80–2000 MHz); 10 V/m pulse at 900 MHz and 1890 MHz; 3 V/m (2000–2700 MHz)
EFT/B Immunity	IEC 61000-4-4, ±3 kV @ 5 kHz / 100 kHz on DC power and Ethernet ports
Surge Immunity	IEC 61000-4-5, ±1 kV line-line (DM), ±2 kV line-earth (CM) on DC power; ±2 kV line-earth (CM) on communication ports
Conducted RF Immunity	IEC 61000-4-6, 10 V rms, 150 kHz–80 MHz
Environmental Rating	IP30

What Moore can do for you?

1.100% original product, 100% quality assurance and the more competitive price.

We send you a new product asking zero cent!

2.Thoughful service

Professional after-sales service.

3.Quick Shipping

We have large quantities of inventories, can ship immediately.

FAQ

Q: What is the power consumption of 1783-LMS8 during normal operation?
A: The operating power consumption is 4.2 W.

Q: What wire size does the DC power terminal of 1783-LMS8 support?
A: It supports 1.3–0.82 mm² (16–18 AWG) solid or stranded copper wire.

Q: What is the tightening torque for the power terminal screws of 1783-LMS8?
A: The power terminal screw tightening torque is 0.19 N·m.

Q: What is the enclosure protection rating of 1783-LMS8?
A: The enclosure protection rating is IP30.

Q: What is the air discharge ESD immunity rating of 1783-LMS8 under IEC 61000-4-2?
A: The air discharge ESD immunity rating is 8 kV.

Application

Automotive Assembly Plants: Connect PLCs and HMIs in body shops.

Food & Beverage Plants: Aggregate network traffic from filling and labeling lines.

Pharmaceutical Plants: Build local monitoring networks for cleanrooms.

Water Treatment Plants: Connect remote dosing stations and valve controllers.

Warehouse Logistics Plants: Link I/O modules and barcode scanners on sorting lines.
