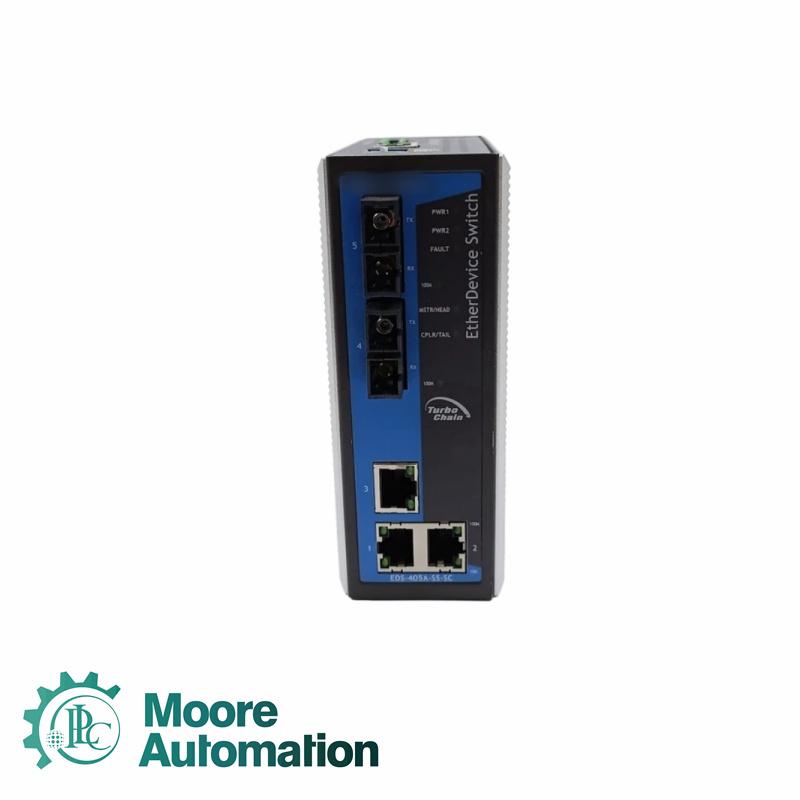

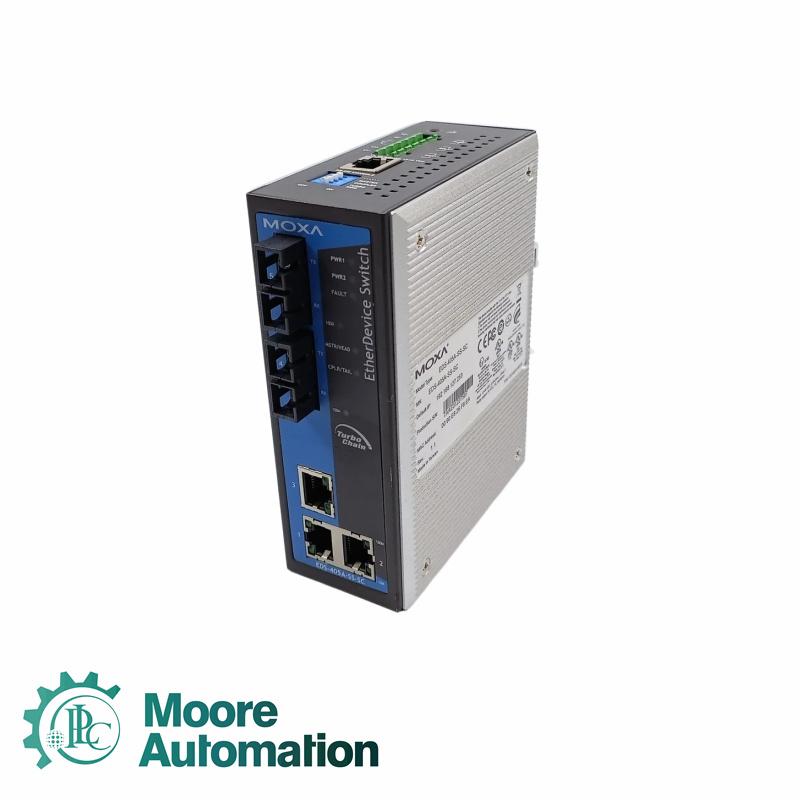

Moxa EDS-405A-SS-SC Layer 2 Managed Switch

Moxa EDS-405A-SS-SC Layer 2 Managed Switch

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Taiwan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

John Yang
Email: sales3@askplc.com	Mobile(WhatsApp): 86-18150117685

Product Brief

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

Main Parameters

Ethernet Ports (RJ45)	3 × 10/100BaseT(X), auto-negotiation, full/half duplex, Auto MDI/MDI-X
Fiber Ports	2 × 100BaseFX single-mode SC connectors
Ethernet Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D-2004, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w
Ethernet Software Features	802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols	EtherNet/IP, Modbus TCP
Management Features	Back Pressure Flow Control, BOOTP, DHCP Server/Client, DHCP Option 66/67/82, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP v1/v2c/v3, SNMP Inform, Syslog, Telnet, TFTP
Supported MIBs	Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1/2/3/9, RSTP MIB
Redundancy Protocols	RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security Features	Broadcast storm protection, HTTPS/SSL, NTP authentication, Port Lock, SNMPv3, SSH, Trust access control
Time Management	NTP Server/Client, SNTP
IGMP Groups	256
MAC Address Table	2 K entries
Maximum VLANs	64
VLAN ID Range	VID 1–4094
Packet Buffer Size	1 Mbit
Priority Queues	4
Console Port	RS-232 (TxD, RxD, GND), 10-pin RJ45, 115200 bps, 8N1
DIP Switch Functions	Turbo Ring, Master, Coupler, Reserve
Alarm Output	Relay output, 1 A @ 24 VDC
Input Voltage	12/24/48 V DC, redundant dual inputs
Operating Voltage	9.6…60 V DC
Input Current	0.594 A @ 12 VDC; 0.286 A @ 24 VDC; 0.154 A @ 48 VDC
Overload Protection	Supported
Reverse Polarity Protection	Supported
Power Connection	1 removable 6-contact terminal block
Housing Material	Metal
IP Rating	IP30
Dimensions	53.6 × 135 × 105 mm
Weight	650 g (0.65 kg)

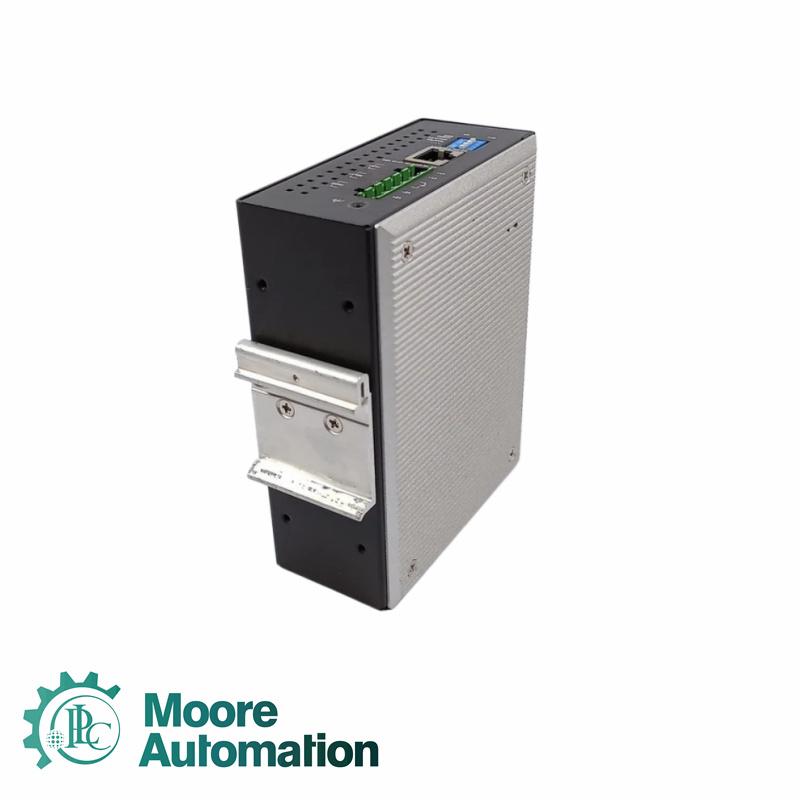

Mounting	DIN-rail mounting; Wall mounting (optional kit)
Operating Temperature	-10…60 °C
Storage Temperature	-40…85 °C

What Moore can do for you?

1.100% original product, 100% quality assurance and the more competitive price.

We send you a new product asking zero cent!

2.Thoughful service

Professional after-sales service.

3.Quick Shipping

We have large quantities of inventories, can ship immediately.

FAQ

Q: How many fiber optic ports does EDS-405A-SS-SC include?
A: The model is equipped with 2 × 100BaseFX single-mode SC fiber optic ports.

Q: What is the enclosure material of EDS-405A-SS-SC?
A: The switch features a metal enclosure.

Q: What is the minimum operating voltage supported by EDS-405A-SS-SC?
A: The minimum operating voltage is 9.6 VDC.

Q: What is the MAC address table capacity of EDS-405A-SS-SC?
A: The device has a MAC address table capacity of 2K entries.

Q: What is the minimum operating temperature of EDS-405A-SS-SC?
A: The minimum operating temperature is -10°C.

Application

Cement Plant: Provides highly reliable network communication in harsh industrial environments.

Steel Plant: Resists strong electromagnetic interference and withstands extreme operating temperatures.

Chemical Plant: Meets stringent explosion-proof requirements and resists corrosive gas environments.

Paper Mill: Adapts to high-humidity and dust-intensive production environments.

Semiconductor Fab: Ensures high-speed and stable data transmission for automated production lines.
