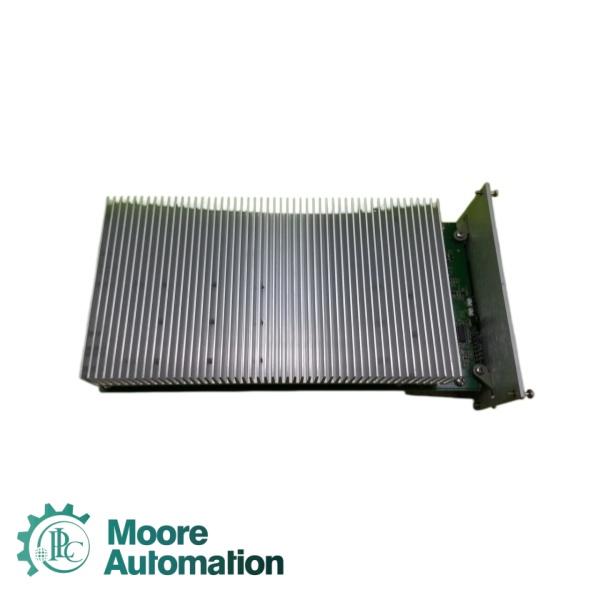

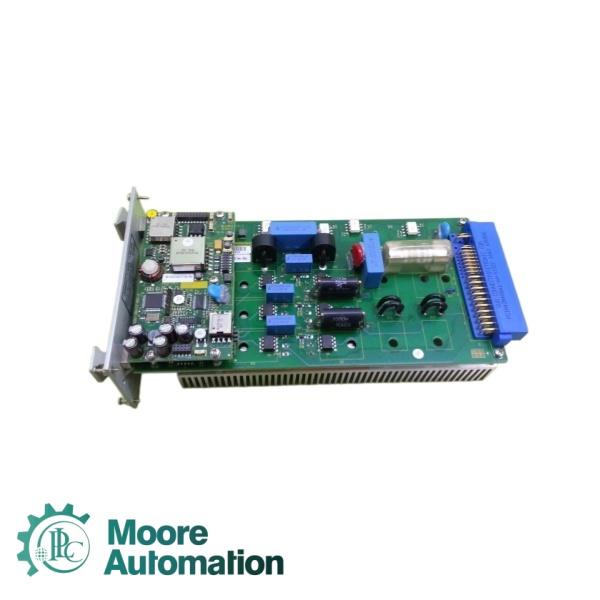

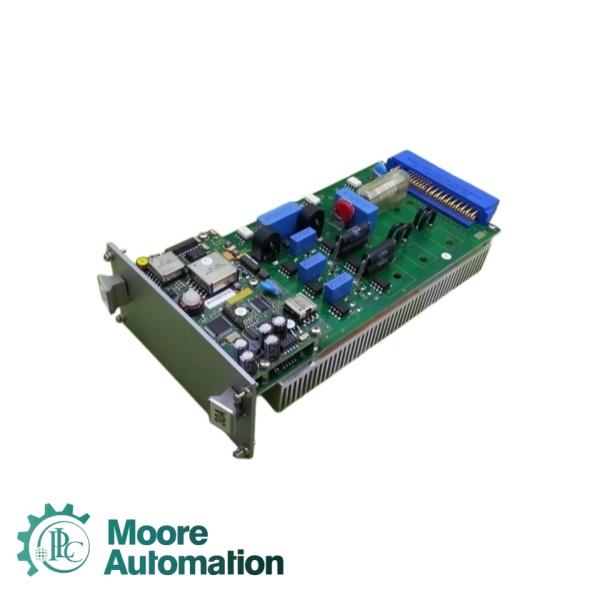

ACS DDM3U-1-320V-30-SR Motion Control

The ACS DDM3U-1-320V-30-SR is a high-performance, digitally controlled PWM universal drive module belonging to the universal drive family designed for integration into the ACS MC4U Control Module multi-axis chassis. This single-axis (-1) slot-in card operates via advanced digital current loops and field-oriented control algorithms to provide exceptionally low noise, which minimizes position jitter and maximizes velocity smoothness. As a universal drive layer, it gives system designers the unique flexibility to drive linear or rotary motors of various topologies seamlessly through setup software diagnostics, bypassing the need for dedicated, hardware-restricted sub-modules.

Bus Input Voltage: 24 VDC to 320 VDC

Control Input Voltage: 24 VDC ± 10%

Continuous Output Current: 30 Amperes

Peak Output Current: 60 Amperes

Maximum Output Power: Peak delivery capacity up to 19.1 kW

Operating Ambient Temperature: 0 °C to +40 °C

Q1. What is ACS Motion Control’s core technological architecture?

A1: ACS Motion Control is a pioneer in EtherCAT-based master-slave control architectures. Their entire system is centered around the EtherCAT network protocol, utilizing a high-performance central controller (the Master) that manages synchronized real-time networks. This architecture allows ACS to distribute control intelligence across a network of universal drive modules, enabling sub-millisecond synchronization of up to 64 axes while keeping complex wiring to an absolute minimum.

Q2. What distinguishes ACS in the high-precision motion control market?

A2: ACS specializes in sub-nanometer and tracking-error minimization technology, positioning them at the absolute high-end of industrial automation. Their proprietary control algorithms, such as advanced dual-loop control, frequency-domain analysis tools, and look-ahead trajectory planning are specifically designed to eliminate mechanical resonance, reduce settling times, and maintain steady-state positioning at the atomic scale. This makes them a dominant choice where traditional PID loops fail.

Q3. What is the ACS "Universal Drive" philosophy?

A3: Unlike many automation brands that require specific hardware variants for different types of motors, ACS utilizes a Universal Drive Philosophy. Their drive modules are designed with flexible hardware output layers that can be entirely configured via software. A single ACS drive slot can operate an AC Brushless Servo, a DC Brush motor, a Linear motor, or an AC Induction motor simply by altering configuration scripts in the setup wizard, significantly reducing spare part inventories for system builders.
