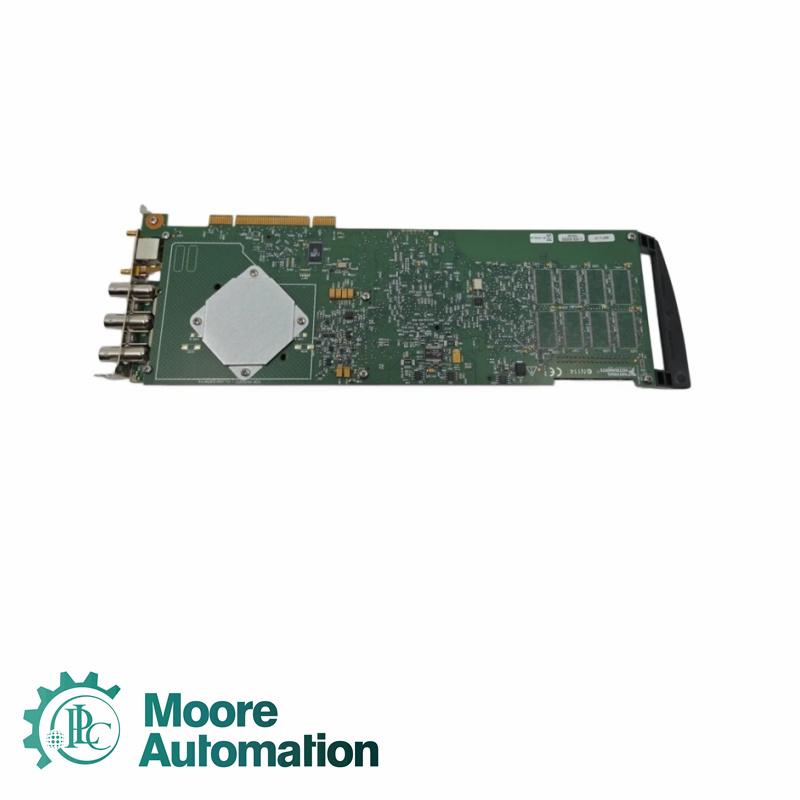

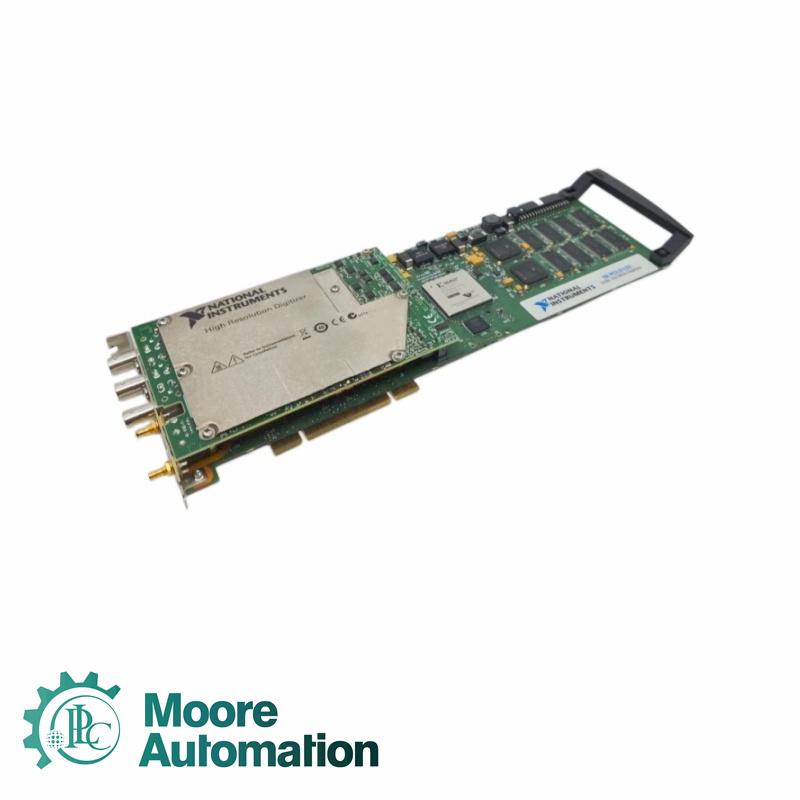

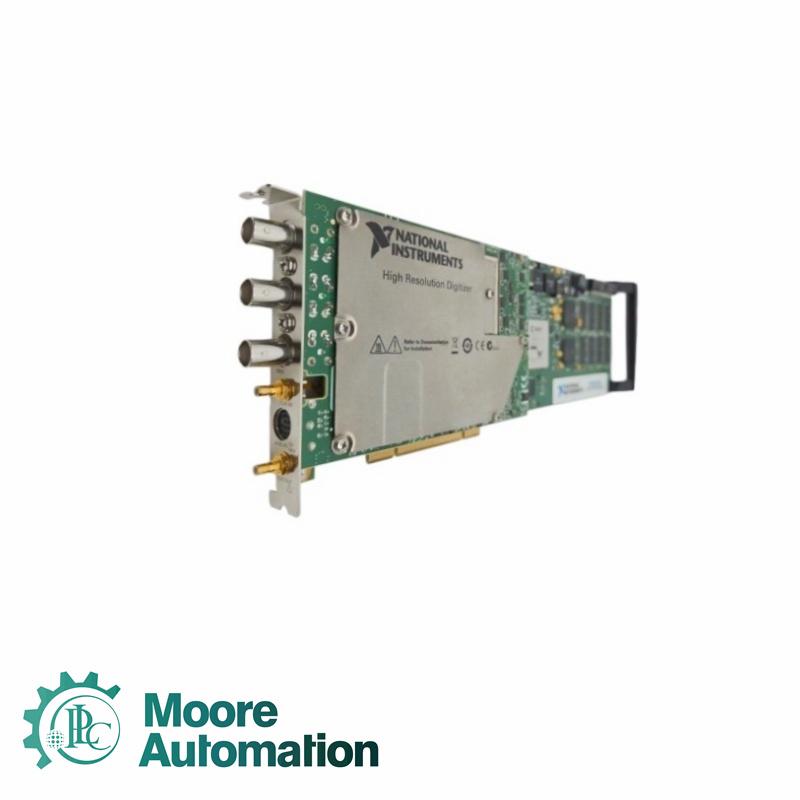

NATIONAL INSTRUMENTS PCI-5122 Oscilloscope Device

NATIONAL INSTRUMENTS PCI-5122 Oscilloscope Device

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Contact me for a discount：John Yang	Email: sales3@askplc.com
	Mobile(WhatsApp): 86-18150117685

Major Business--contact John Yang --Mobile(WhatsApp): 86-18150117685

ABB: Industrial robot parts of DSQC series,Bailey INFI90, DCS...

Honeywell: 51/MU/MC/TC/CC ...

Triconex: 3008/3511/3625/3664/3721/3700A...

Bently Nevada: 3500/3300/330180-Cable...

Foxboro: FBM203/204/217/231, FCP240/270...

Woodward: SPC valve position controller, PEAK15 digital controller...

Siemens: 6DD/6DP/6ES5/6DR/6GK Series...

Westinghouse: 1C/5X...

General electric: IC693/IC697/IC695/DS200...

Schneider: 140 Series...

Here is the information about NATIONAL INSTRUMENTS PCI-5122

Specifications
Dimensions	21.3 x 2.0 x 13.0 cm
Weight	0.453 kg
Number of channels	2 (simultaneously sampled)
Connectors	BNC
Input impedance (software-selectable)	50 Ω ±2.0%; 1 MΩ ±0.75% parallel with nominal 29 pF capacitance
Input coupling (software-selectable)	AC, DC, GND
Maximum input overload (50 Ω)	7 Vrms with \|Peaks\| ≤10 V
Maximum input overload (1 MΩ)	\|Peaks\| ≤42 V
Resolution	14 bits
AC amplitude accuracy (50 Ω)	±0.06 dB (±0.7%) at 50 kHz
AC amplitude accuracy (1 MΩ)	±0.09 dB (±1.0%) at 50 kHz
Crosstalk	≤-100 dB at 10 MHz
Bandwidth (0.2 V input range)	80 MHz up to 40°C
Bandwidth (all other input ranges)	100 MHz
Rise/fall time (0.2 V input range)	4.2 ns
Rise/fall time (all other input ranges)	3.5 ns
Noise filter	20 MHz (2-pole Bessel)
Anti-alias filter	40 MHz (-6 dB), 35 MHz (±3 dB)
AC coupling cutoff (-3 dB)	12 Hz
Clock sources	Internal VCXO, External CLK IN, PXI Star Trigger
Real-time sampling rate	1.526 kS/s to 100 MS/s
RIS sampling rate	200 MS/s to 2 GS/s
Phase noise density	<-100 dBc/Hz @100 Hz; <-120 dBc/Hz @1 kHz; <-130 dBc/Hz @10 kHz
Sample clock jitter	≤1 psrms (100 Hz–100 kHz); ≤2 psrms (100 Hz–1 MHz)
External clock sources	CLK IN, PXI Star Trigger
Clock frequency range	30 MHz to 105 MHz (CLK IN); 30 MHz to 80 MHz (PXI Star Trigger)
Duty cycle tolerance	45% to 55%
Operating temperature range	0°C to 45°C
Storage temperature range	-40°C to 71°C

Product Description

The PCI-5122 high-resolution oscilloscope device has two channels with greater than 75 dBc spurious-free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. Oscilloscope devices also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 100 MS/s and 100 MHz of analog bandwidth.

Application

Precision electronics manufacturing plants: Used for high-speed pulse analysis in semiconductor testing, leveraging its high bit depth to capture minute ripples on power rails.

Ultrasonic imaging equipment plants: Integrated into medical or industrial flaw detection systems, processing echo signal acquisition from high-frequency ultrasonic transducers.

Communication equipment testing plants: Performing digital processing of RF and IF signals, utilizing its excellent phase noise performance for spectral purity analysis.

Features
100 MS/s Real-Time, Up to 2.0 GS/s Equivalent-Time Sampling
14-Bit Resolution on 2 Simultaneously Sampled channels
100 MHz Bandwidth With Noise and Antialias Filters
±2 mV to ±100 V Input Range With TEGAM Signal Conditioning Amplifier
-75 dBc Spurious-Free Dynamic Range (SFDR); Edge, Window, Hysteresis, Video, and Digital Triggering
Deep Onboard Memory - 8 MB/ch Standard, Up To 512 MB/ch

Frequently Asked Questions

Q: How well does the PCI-5122 resolve weak signals?
A: It provides 14-bit resolution with crosstalk below -100 dB at 10 MHz for high signal purity.

Q: What sampling rate does the PCI-5122 support?
A: It supports 100 MS/s real-time sampling and up to 2 GS/s equivalent sampling in RIS mode.

Q: Does the PCI-5122 support flexible input impedance selection?
A: Yes. It offers software-selectable 50 Ω or 1 MΩ input impedance.

Q: What are the bandwidth and rise time of the PCI-5122?
A: It delivers 100 MHz bandwidth with a fast 3.5 ns rise/fall time.

Q: Is the clock stability of the PCI-5122 reliable for synchronization?
A: Yes. It features ≤1 psrms clock jitter and supports external synchronization sources.
