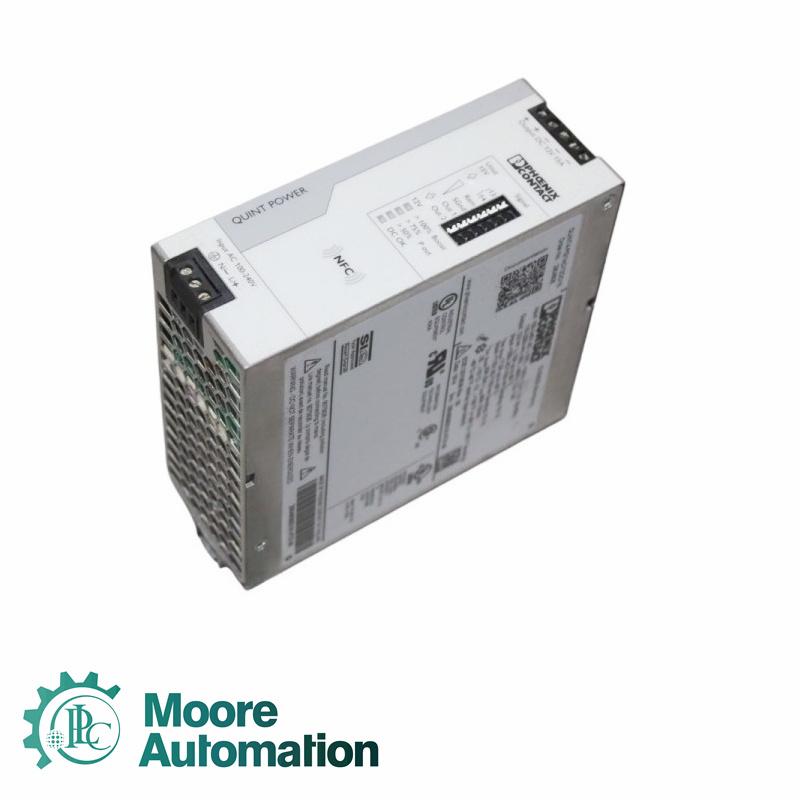

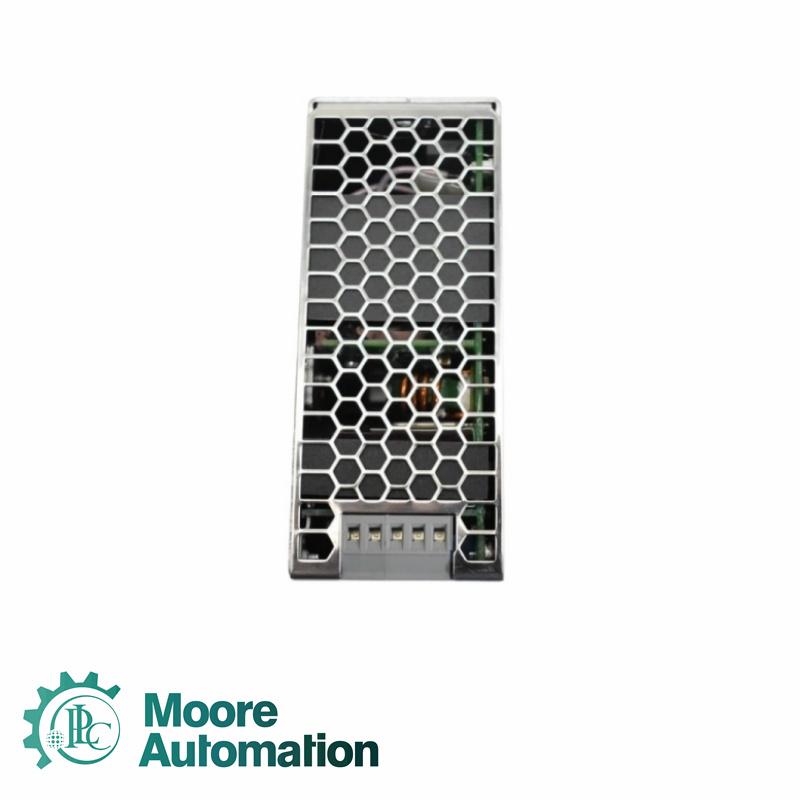

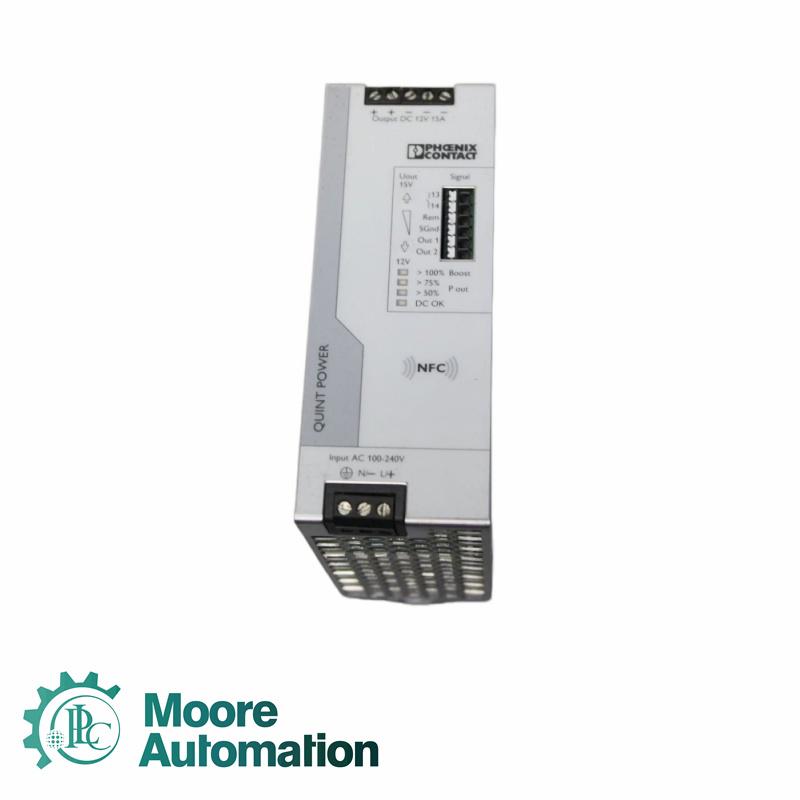

Here is the information about Phoenix Contact QUINT4-PS/1AC/12DC/15
Specifications
Dimensions
5x13x12.5 cm
Control input (configurable)
Rem
Output power ON/OFF
SLEEP MODE
Default output state
ON (>40 kΩ / 24 V DC / open bridge between Rem and SGnd)
Nominal input voltage range (AC)
100–240 V AC
Input voltage range (AC)
100–240 V AC (-15% to +10%)
Electric strength (max.)
300 V AC / 60 s
Typical national grid voltage
120 V AC / 230 V AC
Supply voltage type
AC
Inrush current
15 A (typical at 25°C)
Inrush current integral (I²t)
< 0.6 A²s
Inrush current limitation
15 A (after 1 ms)
AC frequency range
50–60 Hz (-10% to +10%), 16.7 Hz (EN 50163)
Mains buffering time
55 ms (120 V AC), 56 ms (230 V AC)
AC current consumption
2.4 A (100 V AC), 1.9 A (120 V AC), 1.1 A (230/240 V AC)
Nominal power consumption
221 VA
Protective circuit
Transient surge protection; varistor, gas-filled surge arrester
Switch-on time
< 1 s
Typical response time
300 ms (from SLEEP MODE)
Input fuse
8 A (slow-blow, internal)
Recommended input breaker
10–16 A (Characteristic B, C, D, K or equivalent)
Discharge current to PE
< 3.5 mA; 0.7 mA (264 V AC, 60 Hz)
Nominal input voltage range (DC)
110–250 V DC
Input voltage range (DC)
110–250 V DC (-18% to +40%)
Supply voltage type (DC)
DC
DC current consumption
2.2 A (110 V DC), 1 A (250 V DC)
Product Description
The QUINT4-PS/1AC/12DC/15 Industrial Power Supply is rugged AC to DC and DC to DC Converter built to meet the high stability and efficiency expectations of industrial, machine automation and process control environments. It also feature the unique combination of preventive function monitoring and power reserve in an incredibly compact size.
Features
High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
Power reserve for easy system extension thanks to static boost with sustained power of up to 125% and ability to start difficult loads thanks to dynamic boost with up to 200% for 5 seconds
Preventive function monitoring indicates critical operating states before errors occur
Robust design thanks to metal housing and wide temperature range from -25°C ... +70°C
Worldwide use thanks to the wide range input and international approval package
Application
Semiconductor Wafer Plants: Provide clean and continuous low-voltage DC power for ultra-precision equipment, preventing production interruptions caused by grid fluctuations.
Smart Logistics Warehouses: Serve as a core power source for automated shuttle vehicles and sorting systems, handling frequent motor start-stop cycles through strong dynamic load capability.
Wind Power Plants: Installed in control cabinets at the base of turbine towers, with wide-temperature operation down to -40°C ensuring safe operation under extreme climates.
Rail Transit Manufacturing Plants: Used for power distribution in onboard communication and signaling systems, compatible with special-frequency grids such as 16.7 Hz to meet strict infrastructure requirements.
Offshore Oil Drilling Platforms: Applied in high-altitude and remote marine environments, providing excellent surge suppression and altitude compensation to ensure long-term stable system operation.
Frequently Asked Questions
Q: How does the “SLEEP MODE” of the QUINT4-PS/1AC/12DC/15 help reduce energy consumption?
A: Via Rem interface control, it enters ultra-low standby during idle periods, reducing reactive power loss.
Q: In unstable remote grids, does the QUINT4-PS/1AC/12DC/15 need an external voltage regulator?
A: No. Built-in EMC filtering and grid buffering smooth voltage fluctuations automatically.
Q: Can the QUINT4-PS/1AC/12DC/15 support parallel operation of multiple units?
A: Yes. It supports parallel configuration for redundancy or increased output current.
Q: How does high altitude affect the QUINT4-PS/1AC/12DC/15 operation?
A: Above 2000 m, reduced cooling efficiency requires power derating per specification.
Q: What is the startup performance of the QUINT4-PS/1AC/12DC/15?
A: It wakes from sleep in milliseconds and quickly stabilizes output voltage.
|
