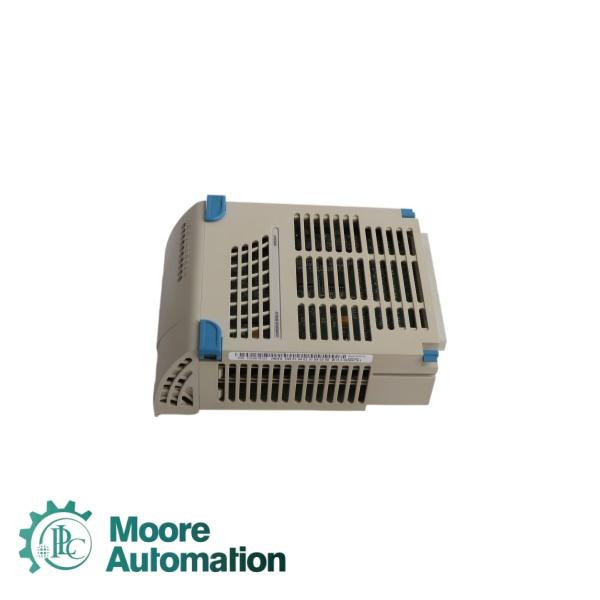

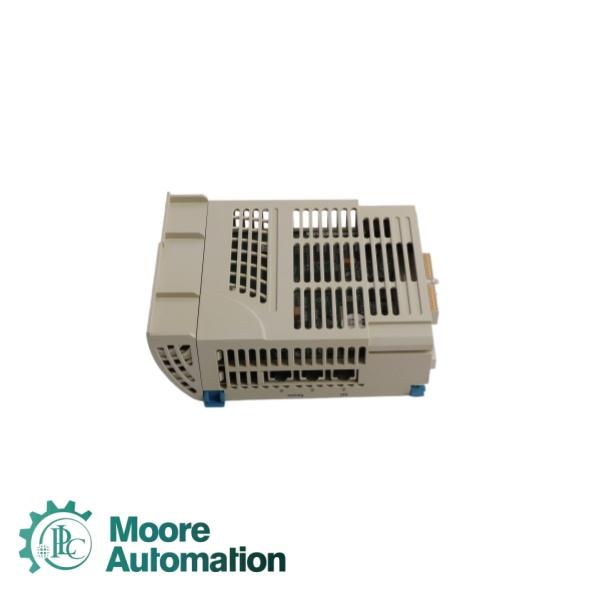

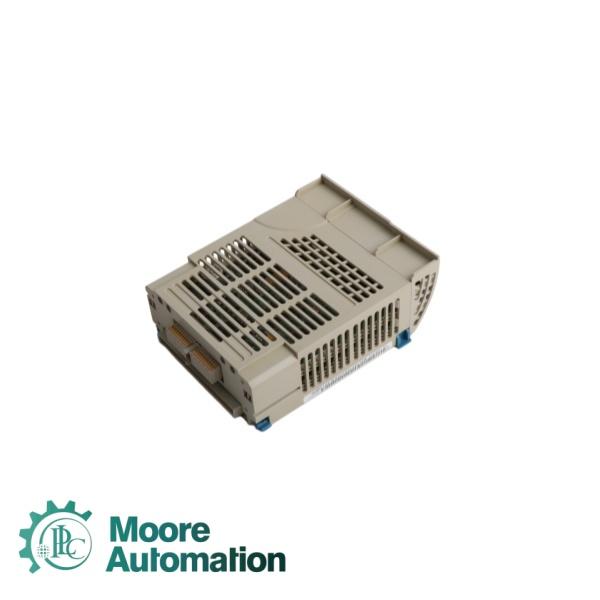

WESTINGHOUSE 5X00226G04 Contro1ler IOIC Card

Sales Manger

Yuki Huang

            E-mail

Sales6@askplc.com

       WhatsAPP

+86-17359287459

Bus structure

CompactPCI standard

Originated points

Up to 32,000 points

Process control tasks

Up to 5 each with a different loop execution rate

Control task loop execution time

Two of the 5 tasks are predefined @ 1 s and @ 100 ms.

The other three tasks are user definable, with each task individually defined to execute at a rate between 10 ms. and 30 seconds in increments of 10 ms.

Processor base frequency

1.1 GHz

Memory

1Gb Flash & 256 Mb RAM

NIC ports

4 x 10/100 Mb Ethernet Two options: (i) 4 x RJ45 or (ii) 1 x RJ45 + 3 SFP Fiber

Temperature

Ambient: 0-60 oC or 32-140 o F (i)4 x RJ45

Ambient: 0-50 oC or 32-122 o F (ii)1 x RJ45 + 3SP Fiber

Power

24 VDC 40W

Humidity

0 - 95% RH

Size

20” w x 8” h x 7” d

Advanced Control

The controller supports advanced control strategies beyond traditional PID, including: Cascade control, Feedforward control, Ratio control, Adaptive tuning, Model Predictive Control (MPC).

Special Logic and Timing Functions

The controller includes special logic and timing functions such as: On-delay and off-delay timers, Pulse timers, Counter functions (up/down), Latching relays.

Continuous (PID) Control

The controller provides continuous PID control for regulating process variables such as temperature, pressure, flow, and level in real-time. This ensures stable and precise control in applications like boiler steam temperature regulation and turbine speed control.

Boolean Logic

The controller executes Boolean logic operations (AND, OR, NOT, XOR, etc.) for discrete control applications. This enables interlocking and sequencing of equipment such as pump start/stop logic, valve open/close commands, and motor control center (MCC) interlock management.

Q1:What is the 5X00226G04 module used for?

A1:It is an I/O Interface Controller (part of the OCR1100 series) that connects the Ovation DCS central controller to field devices, managing data flow between them for process control .

Q2:Does the 5X00226G04 support controller redundancy?

A2:Yes. It supports redundant configuration with automatic "bumpless" failover—if the primary controller fails, the backup takes over seamlessly to ensure continuous operation .

Q3:How many I/O points can the 5X00226G04 handle?

A3:It can support up to 32,000 points when used as part of the OCR1100 controller architecture .

Q4:What communication protocols does the 5X00226G04 support?

A4:It supports Modbus TCP/RTU, EtherNet/IP, and OPC UA, with integrated virtual I/O capability for third-party OEM system integration over Ethernet .
