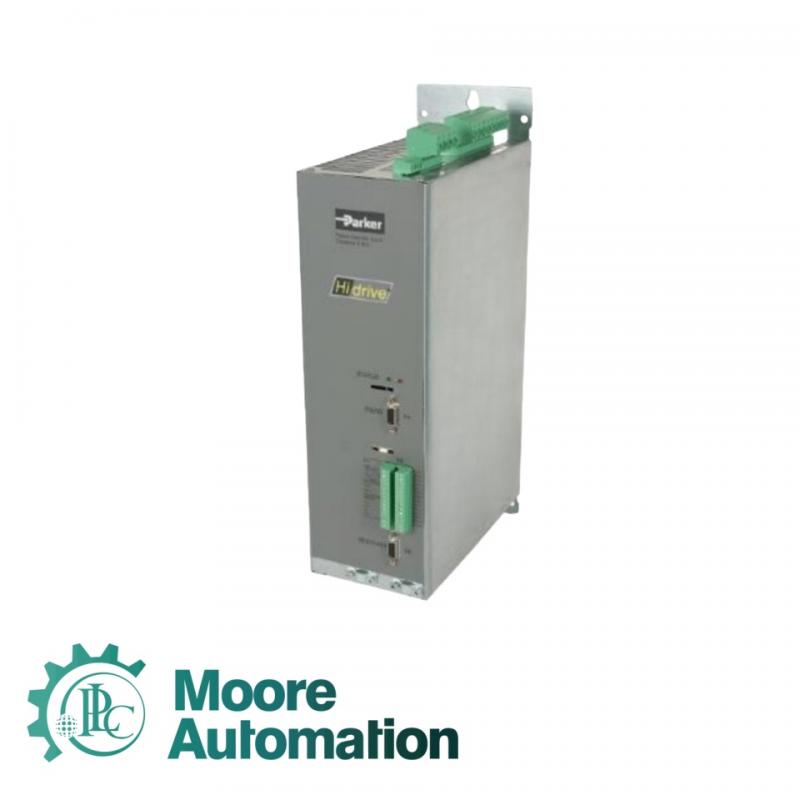

Parker HID5SS Hidrive Servo Amplifier

Product Specifications

Product Name:HID5SS

Brand Name:Parker

Product Origin:USA

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

Contact John Yang: Sales Manager

Product Information

The HID5SS Hidrive Servo Amplifier has a rated power of 3.5kVA and can receive industrial standard command signals. It also provides positioning and PLC functions, optional integrated IEC 61131 programming environment, and expansion board for fieldbus and additional I/O

Parameter Information

Transmission shaft type: single shaft technology
Input voltage: 1/3 × 230 VAC; 3×400/480 VAC
Continuous output current rated value: 5.0 A
Compatible motor types: brushless servo motor, direct drive motor, induction motor
Compatible feedback devices: rotary transformer, incremental encoder, EnDat absolute value encoder, Hiperface absolute value encoder
Communication interfaces: RS232/RS485, CANopen, Profibus, Ethernet TCP/IP, EtherCAT
Fieldbus protocol: SBC CAN
Second encoder input option: SinCos (1Vpp)
Additional safety option: Built in safety relay (compliant with EN 954-1 Cat. 3)
Working temperature: 0~45 ° C (32~113 ° F)
Storage temperature: -25~+85 ° C (to avoid condensation)
UL certification: No
