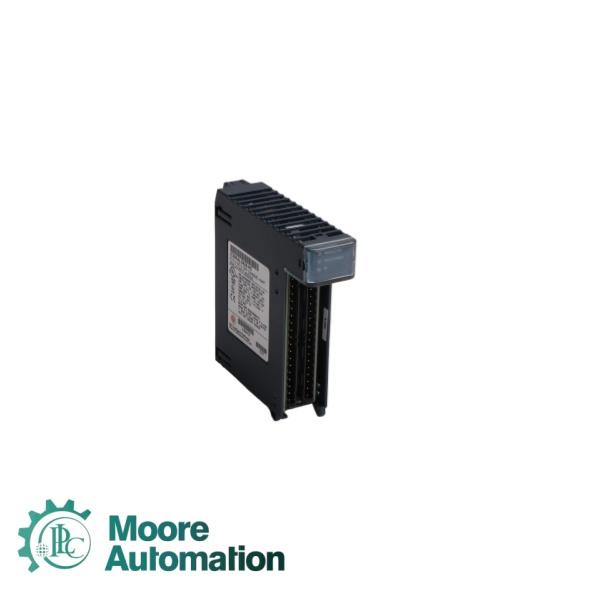

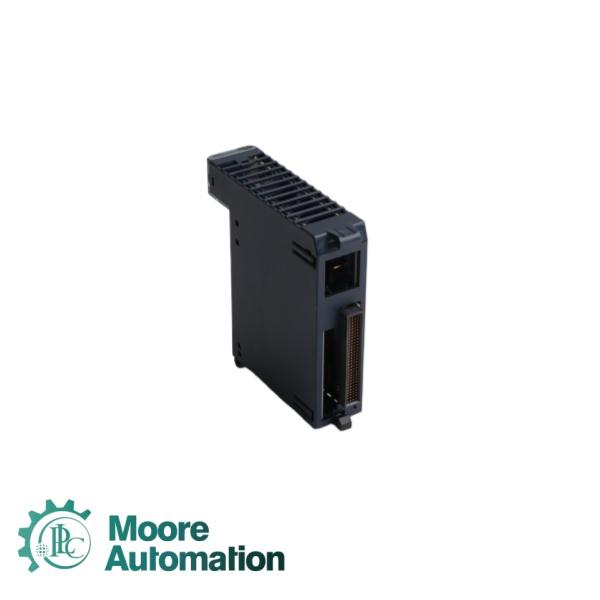

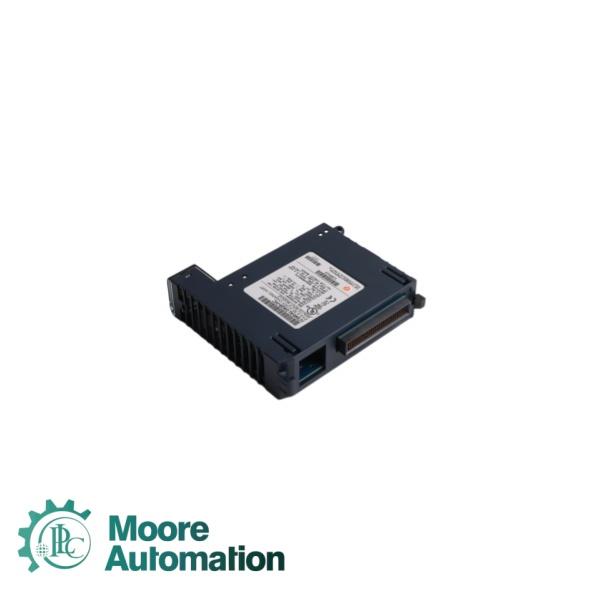

GE IC695ALG312 Isolated Thermocouple Input module 6 Channels

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
GE
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

◆Brand New ◆In Stock ◆Fast Shipping

Sales Manger

Yuki Huang

E-mail

Sales6@askplc.com

+86-17359287459

Model Description

The GE Fanuc IC695ALG312 is an isolated thermocouple input module for the PACSystems™ RX3i platform. This module provides twelve (12) isolated differential input channels, each capable of accepting direct wiring from various thermocouple types as well as millivolt voltage signals . The module features 250 VAC continuous channel-to-channel isolation, sigma-delta A/D conversion, and configurable notch filters ranging from 2.3 Hz to 28 Hz per channel. It supports 32-bit IEEE floating-point or 16-bit integer data formats and includes comprehensive diagnostic alarms for open wire, short circuit, rate-of-change, and high/low limit conditions. The IC695ALG312 occupies a single slot on a Universal Backplane using the PCI bus and requires external terminal blocks sold separately.

Key Technical Specifications

Range	±150mV or±50mV
Channel-to-Channel Isolation	250 VAC Continuous 1500 VAC 1 minute 2550 VDC 1 second
Number of Channels	12
Notch Filter	From 2.3 Hz to 28 Hz per channel
Resolution	32-bit IEEE floating point or 16-bit integer (in 32-bit field) input data format
Accuracy	±0.1% of voltage span at 25ºC ±0.25% of span over temperature range
Input Impedance	Voltage: >=500k ohm
I/O Required	N/A
A/D Conversion Time	15 msec @ 28 Hz to 120 msec @ 2.3 Hz
Internal Power Used	300 mA @ 5 V; 400 mA @ 3.3 V

Typical applications

Furnace & Kiln Control	Multi-zone temperature monitoring in cement, metal heat treatment, and ceramics plants using Type K, R, or S thermocouples
Reactor Vessel Monitoring	Batch chemical and pharmaceutical processes requiring high-accuracy temperature measurement with cold junction compensation
Turbine & Compressor Monitoring	Bearing temperature measurement in gas/steam turbines, centrifugal compressors, and generators
Power Generation	Boiler flue gas temperature monitoring, exhaust temperature measurement in gas turbines
Industrial Ovens & Dryers	Zoned temperature monitoring in food processing, textile, and paper industries
Heat Treating & Annealing	Precision temperature profiling in metalworking and automotive component manufacturing
Marine & Offshore	Engine exhaust monitoring, auxiliary system temperature measurement (requires terminal block selection for harsh environments)

FAQ

Q1: What is GE's legacy in the industrial automation industry?	A1: GE founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .
Q2: What is the most common failure mode in GE PLC modules?	A2: Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).
Q3: What is GE's proprietary communication protocol for PLCs?	A3: GE developed SRTP (Service Request Transport Protocol) for Ethernet communication with PLCs, succeeding the serial SNP/SNPX protocols. It uses default port 18245 .
