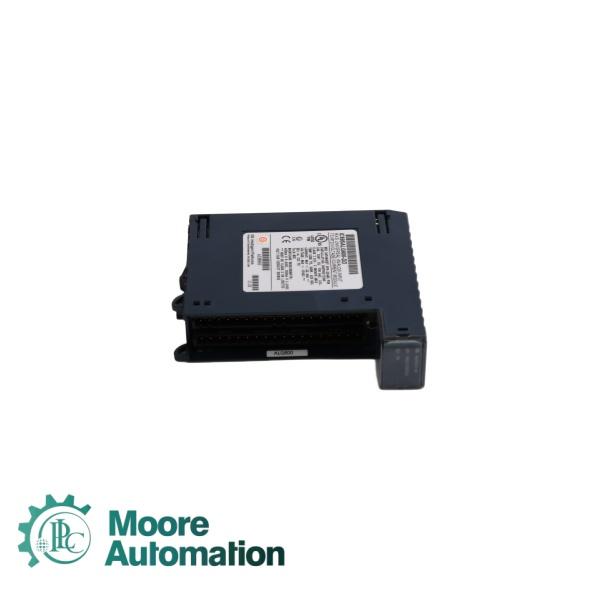

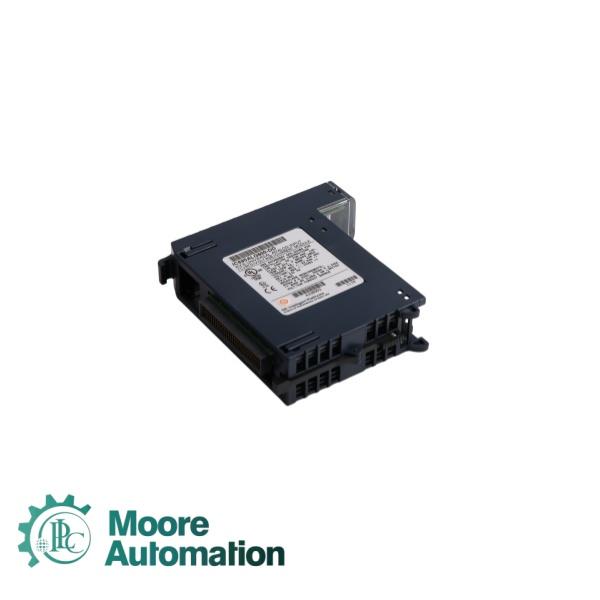

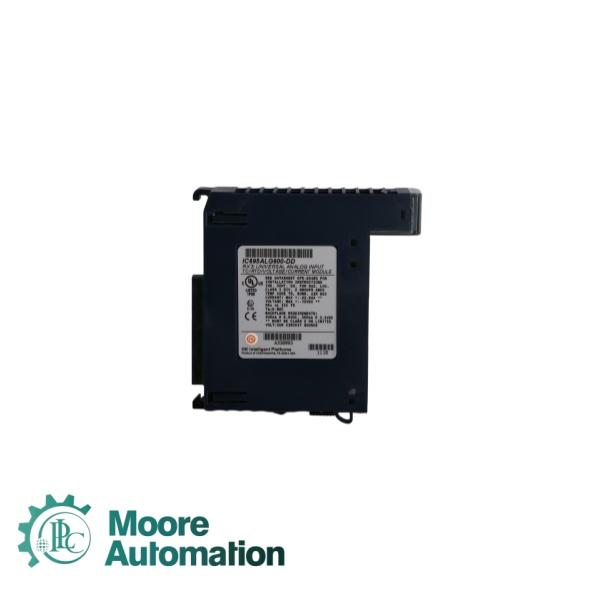

GE IC695ALG600-DD Analog Input module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
GE
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

◆Brand New ◆In Stock ◆Fast Shipping

Sales Manger

Yuki Huang

E-mail

Sales6@askplc.com

+86-17359287459

Model Description

The IC695ALG600-DD is a Universal Analog Input Module manufactured as part of the PACSystems™ RX3i series. This module is designed to provide eight general-purpose analog input channels and two dedicated Cold Junction Compensation (CJC) channels in a single slot, offering exceptional flexibility for mixed-signal industrial applications.

The eight input channels are divided into two equal groups of four channels, with electrical isolation between the groups. Each channel can be independently configured using Proficy™ Machine Edition software, allowing the module to accept a wide variety of signal types without requiring additional or specialized modules.

The module must be installed in an RX3i Universal Backplane and requires an RX3i CPU with firmware version 2.80 (Build ID 43A1) or later. Configuration is performed using Proficy Machine Edition 5.0 SP1A (LD-PLC Hotfix 1) or later. Terminal blocks are ordered separately and are available in box-style (IC694TBB032), extended box-style (IC694TBB132), spring-style (IC694TBS032), or extended spring-style (IC694TBS132) versions. Extended terminal blocks provide additional shroud depth for shielded wiring applications.

Key Technical Specifications

Supported input types include:	Thermocouples: Types B, C, E, J, K, N, R, S, T
	RTDs: PT 385 / 3916, N 618 / 672, NiFe 518, CU 426
	Resistance: 0 to 250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms
	Current: 0–20 mA, 4–20 mA, ±20 mA
	Voltage: ±50 mV, ±150 mV, 0–5 V, 1–5 V, 0–10 V, ±10 V
Backplane Power Requirements	300 mA maximum @ 5.0V 320 mA maximum @ 3.3V
Power Dissipation within Module Thermal Dissipation	5.4 watts maximum
Configurable Input Filter	8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 1000 Hz
Max RTD Cable Impedance	25 ohm
RTD Wire Length	1000 ft max w/settling time of 1mSec
Input Impedance	>1M ohm for TC/V/RTD
Current Input Resistance	249 ohm +/- 1%

Typical applications

Process Control	Monitoring temperature in chemical reactors, measuring pressure in pipelines, controlling boiler steam pressure in power generation, and managing flow and level variables in refining and chemical manufacturing processes .
Industrial Automation	Machine monitoring (e.g., spindle temperature on machine tools), motor control based on current feedback, hydraulic system pressure monitoring, and predictive maintenance data collection in manufacturing and production lines .
Energy and Power Generation	Monitoring power generation equipment parameters such as boiler steam pressure and generator speed. It is also used in oil and gas refining for temperature and level sensing .
Building Automation (HVAC)	Monitoring and controlling environmental parameters including temperature, humidity, and air quality. This data can be used by a PLC to precisely control equipment such as air handling units and compressor inverters .
Water and Wastewater Treatment	Monitoring flow meters and pressure transmitters in treatment facilities .

FAQ

Q1:What is GE's legacy in the industrial automation industry?	A1:GE (General Electric), founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .
Q2:Does GE support hot-swapping of I/O modules?	A2:Yes, most GE PACSystems and VersaMax I/O modules support hot insertion (hot-swapping) when used with compatible Network Interface Units. This allows module replacement without powering down the entire system. However, always verify your specific NIU configuration before performing hot-swap .
Q3:What is the most common failure mode in GE PLC modules?	A3:Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).
Q4:What is GE's proprietary communication protocol for PLCs?	A4:GE developed SRTP (Service Request Transport Protocol) for Ethernet communication with PLCs, succeeding the serial SNP/SNPX protocols. It uses default port 18245 .
