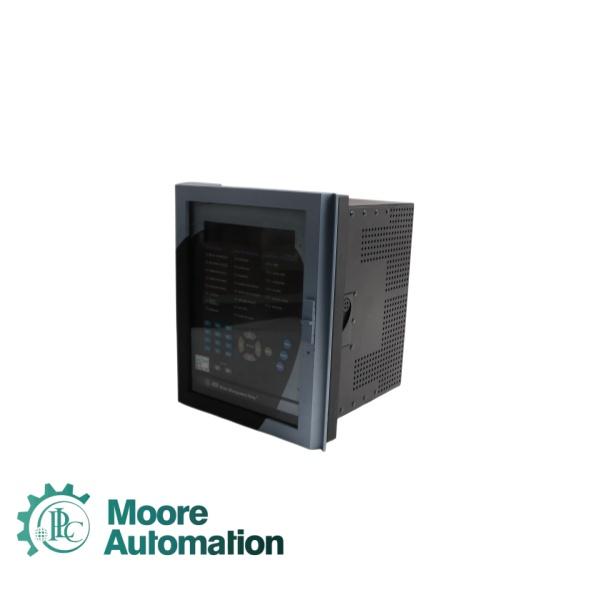

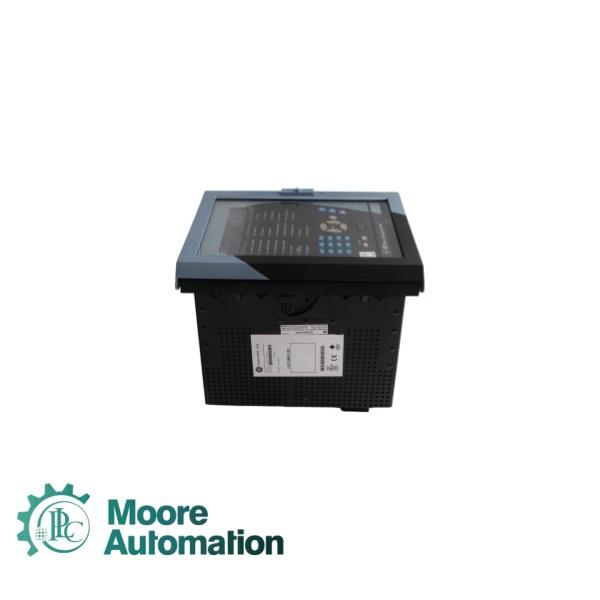

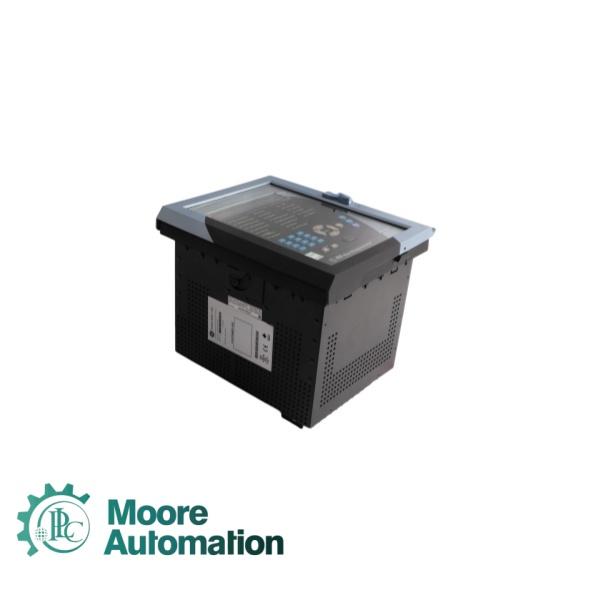

GE 489-P5-HI-A20-E 489 Generator Management Relay System

Contact Yuki

Email:Sales6@askplc.com   |    Whatsapp: +86-17359287459

The GE 489-P5-HI-A20-E is a generator management relay from the Multilin 489 series, designed for the protection, control, monitoring, and metering of small to medium-sized generators . It is a microprocessor-based relay widely installed in power generation applications, providing comprehensive generator management in a single device .

Product Details

Technical Data

➤ Control Power (HI option): 90–300 V DC / 70–265 V AC, 48–62 Hz

➤ Power Consumption: 50 VA or 30 W (typical)

➤ AC Frequency Tolerance: ±5% of nominal

➤ DC Voltage Tolerance: ±20% of nominal

➤ AC Voltage Tolerance: ±10% of nominal

➤ Inrush Current: <25 A peak

➤ Ride-Through Time: 100 ms @ full load

➤ Burden: 0.04 A @ 115 V AC / 0.02 A @ 230 V AC

➤ Isolation: 2500 V AC (input to chassis)

Application

Power Plants: Steam turbine generators, hydro turbine generators, and gas turbine generator protection.

Industrial Facilities: Captive power generation systems, pumps, compressors, and critical process backup generators.

Data Centers: Backup/standby generator protection for mission-critical facilities requiring high reliability.

Renewable Energy: Wind turbine generators, solar farm synchronous condensers, and hydroelectric systems.

Cogeneration / CHP: Combined heat and power plants requiring grid synchronization and export metering.

Marine & Offshore: Shipboard generators and offshore platform power systems.

FAQ

Q: What is GE's legacy in the industrial automation industry?

A: GE (General Electric), founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .

Q: Does GE support hot-swapping of I/O modules?

A: Yes, most GE PACSystems and VersaMax I/O modules support hot insertion (hot-swapping) when used with compatible Network Interface Units. This allows module replacement without powering down the entire system. However, always verify your specific NIU configuration before performing hot-swap .

Q: What is the most common failure mode in GE PLC modules?

A: Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).

Q: What is GE's proprietary communication protocol for PLCs?

A:  GE developed SRTP (Service Request Transport Protocol) for Ethernet communication with PLCs, succeeding the serial SNP/SNPX protocols. It uses default port 18245 .
