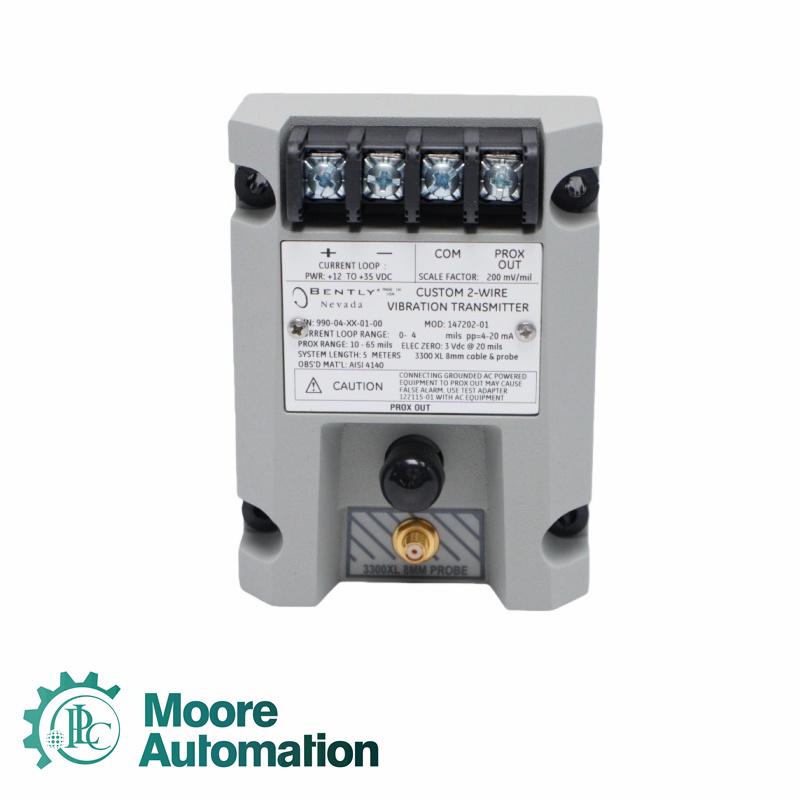

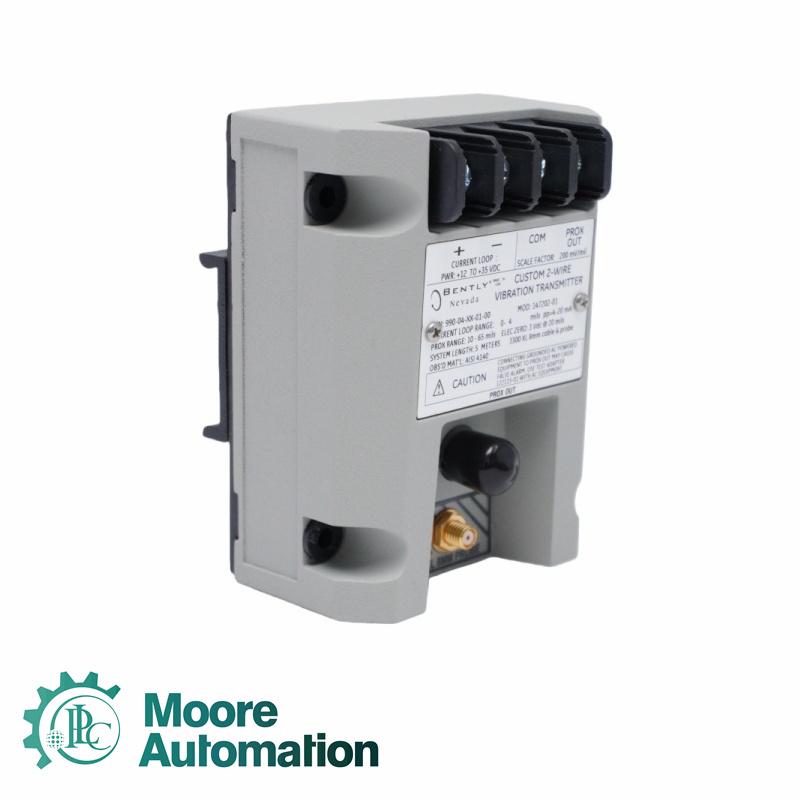

Bently Nevada 990-04-XX-02-05 MOD:167577-05 Vibration Transmitter

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Part Number: 990-04-XX-02-05 MOD:167577-05

Full-Scale Option: 0–4 mils pp (0–100 μm pp)
Mounting Option: Bulkhead screws
Agency Approvals: CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS maritime approval
Dimensions: 62 × 1 × 1 cm
Weight: 0.06 kg
Operating Temperature: −35°C to +85°C (−31°F to +185°F)
Storage Temperature: −52°C to +100°C (−62°F to +212°F)
Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power Requirement: +12 to +35 Vdc at transmitter terminal
Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc
Current Limiting: 23 mA typical
Output Impedance: 10 kΩ (Prox Out, calibrated for 10 MΩ load)
Linear Range: 0.25 to 1.65 mm (10 to 65 mils) for Prox Out
Leadwire Length: BNC output, maximum 3 m (10 ft)

Long Description about 990-04-XX-02-05 MOD:167577-05:

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.

1.Is this product brand new?

Yes, Bently Nevada 990-04-XX-02-05 MOD:167577-05 is brand new, original, unused, and factory sealed

2.Do you have it in stock?

Yes, right now we have Bently Nevada 990-04-XX-02-05 MOD:167577-05 in stock ready for shipment, we can support video inspection.

3.Why can't I see a price for this 990-04-XX-02-05 MOD:167577-05?

In addition to "new original" " units.we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
