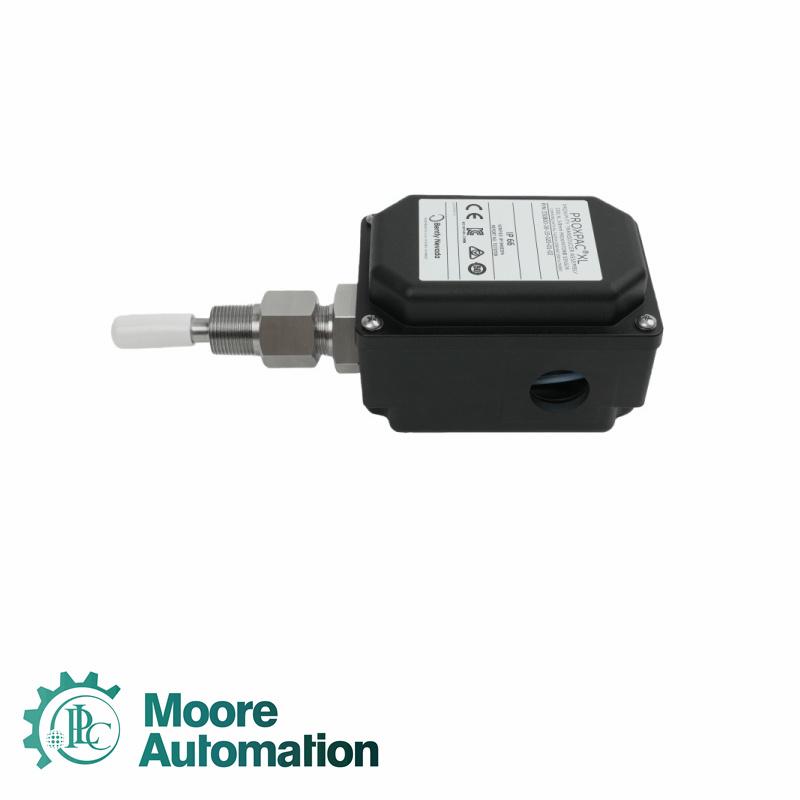

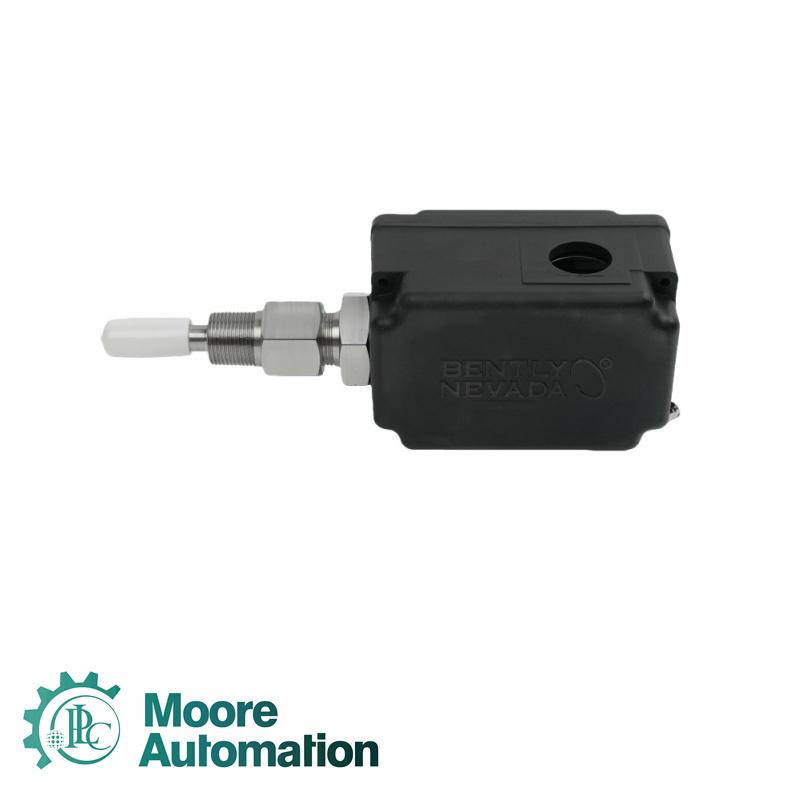

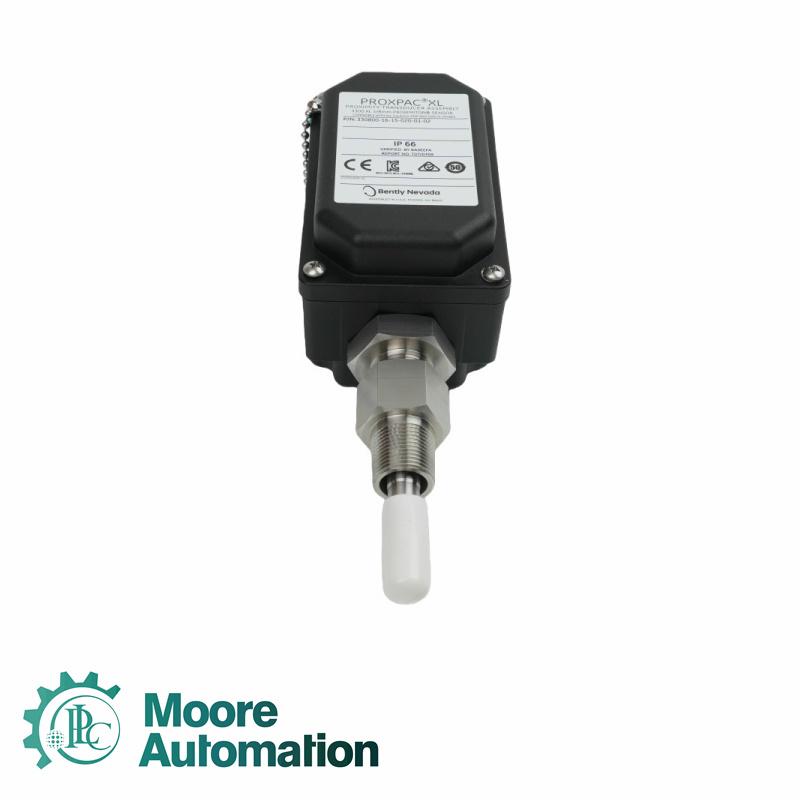

Bently Nevada 330800-28-20-057-03-02 PROXPAC XL Proximity Transducer

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Part Number: 330800-28-20-057-03-02

Probe and Approvals Option: 3300 XL 8 mm probe with Multiple Approvals
Standoff Adapter Option (B Dimension): 2.0 in
Probe Penetration Option (C Dimension): 5.7 in
Fittings Option (Kit): One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, two plugs
Mounting Thread Option: 3/4-14 NPT (Required for Standoff Adapter Option)
Dimensions: 27.8 × 9.5 × 9.2 cm
Weight: 1.5 kg
Supply Sensitivity: <2 mV change in output per volt change in input
Output Resistance: 50 Ω
Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
Linear Range: 2 mm (80 mils)
Recommended Gap: 1.27 mm (50 mils)
Minimum Shaft Diameter: 50.8 mm (2.0 in)
Recommended Shaft Diameter: 76.2 mm (3.0 in)
Housing Rating: IP66 (verified by BASEEFA report T07/0709)
Operating Temperature: −52°C to +100°C (−62°F to +212°F)
Storage Temperature: −52°C to +105°C (−62°F to +221°F

Long Description about 330800-28-20-057-03-02:

The PROXPAC XL Proximity Transducer Assembly adopts a similar mechanical design to the 31000 and 32000 Proximity Probe Housing Assemblies. It provides the same accessibility and external adjustment convenience for proximity probes. The PROXPAC XL Assembly integrates a 3300 XL Proximitor sensor within the housing cover, creating a fully self-contained proximity probe system. This integration eliminates the need for an extension cable between the probe and Proximitor sensor, and removes the requirement for a separate Proximitor housing. Field wiring connects directly between the monitoring equipment and the PROXPAC XL Assemblies, reducing installation complexity and component count.

1.Is this product brand new?

Yes, Bently Nevada 330800-28-20-057-03-02 is brand new, original, unused, and factory sealed

2.Do you have it in stock?

Yes, right now we have Bently Nevada 330800-28-20-057-03-02 in stock ready for shipment, we can support video inspection.

3.Why can't I see a price for this 330800-28-20-057-03-02?

In addition to "new original" " units.we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
