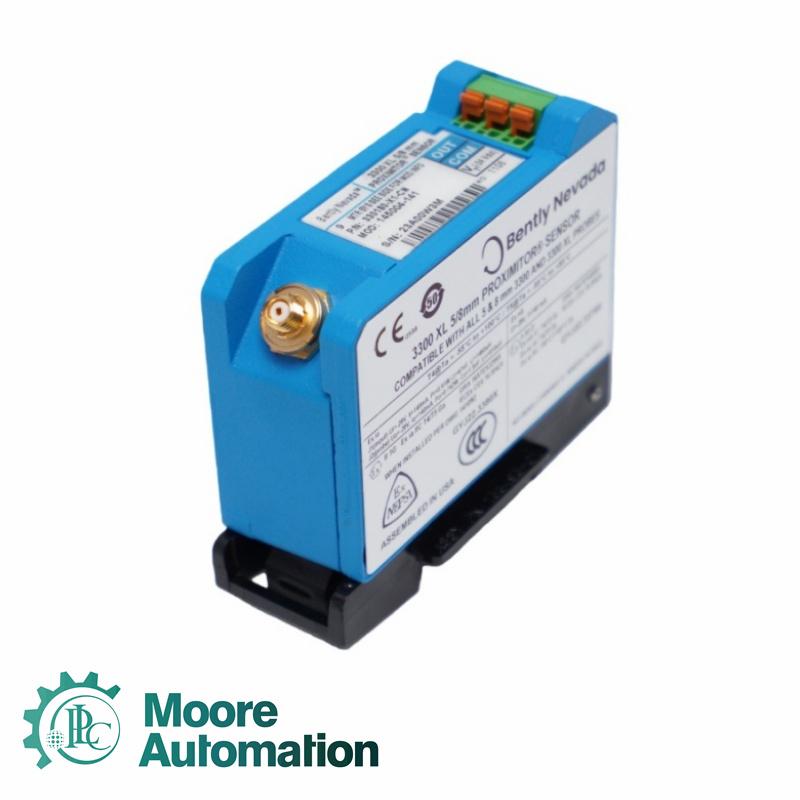

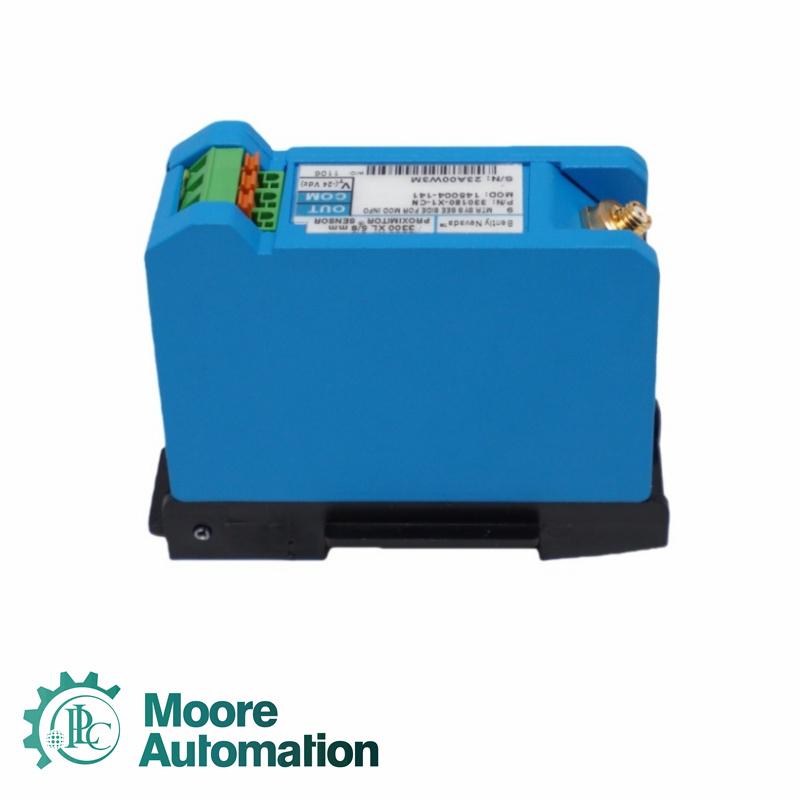

Bently Nevada 330180-X1-CN MOD:145004-13 3300 XL Proximitor Sensor

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Part Number: 330180-X1-CN MOD:145004-13

Total Length and Mounting: 1.0 m (3.3 ft) system length, no mounting hardware
Agency Approvals: CSA, ATEX, IECEx
Proximitor Sensor Input: Accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable
Power Requirement: −17.5 VDC to −26 VDC
Proximitor Sensor Material: A308 aluminum
Supply Sensitivity: <2 mV change in output per volt change in input
Dimensions: 8.6 × 3.5 × 7 cm
Weight: 0.22 kg
Output Resistance: 50 Ω
Operating Temperature: −52°C to +100°C (−62°F to +212°F)
Storage Temperature: −52°C to +105°C (−62°F to +221°F)
Frequency Response: 0 to 10 kHz (+0, −3 dB) with up to 305 m (1000 ft) of field wiring
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
Output Voltage (Mil pp/Gauss, 9 m Proximitor Sensor, Gap 10): 0.0247
Output Voltage (Mil pp/Gauss, 9 m Proximitor Sensor, Gap 50): 0.0323
Output Voltage (Mil pp/Gauss, 9 m Proximitor Sensor, Gap 90): 0.0348

Long Description about 330180-X1-CN MOD:145004-13:

The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity. The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

1.Is this product brand new?

Yes, Bently Nevada 330180-X1-CN MOD:145004-13 is brand new, original, unused, and factory sealed

2.Do you have it in stock?

Yes, right now we have Bently Nevada 330180-X1-CN MOD:145004-135 in stock ready for shipment, we can support video inspection.

3.Why can't I see a price for this 330180-X1-CN MOD:145004-13?

In addition to "new original" " units.we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
