Product Overview

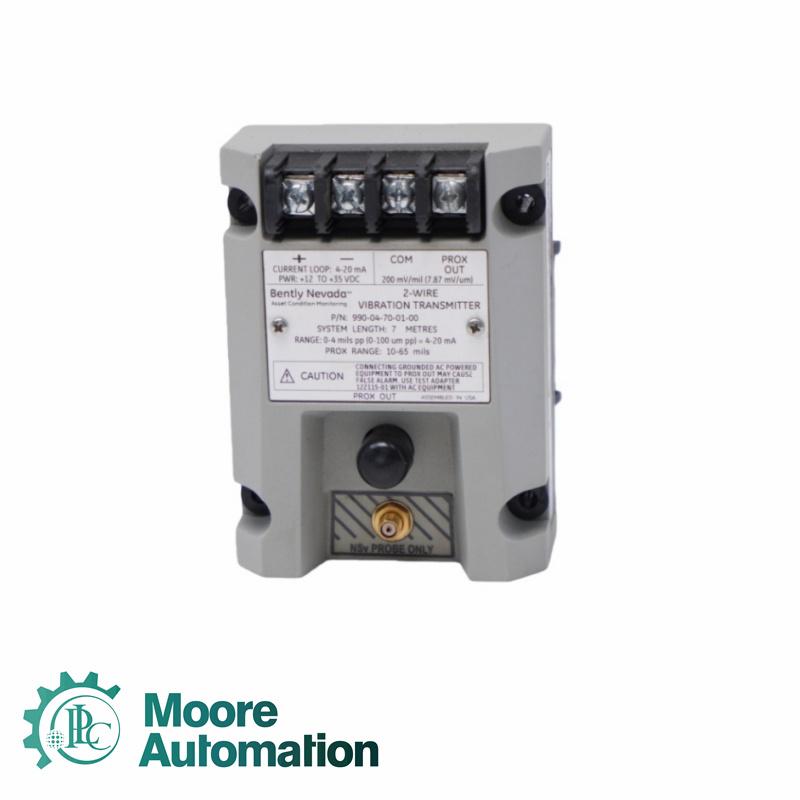

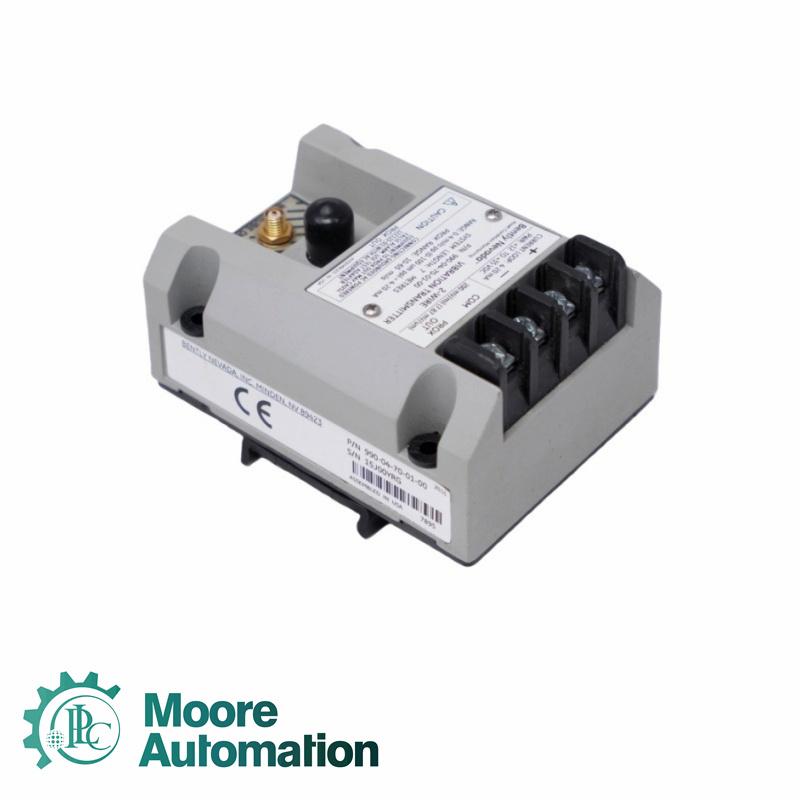

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
Full-scale Option |
0–4 mils pp (0–100 µm pp) |
|
System Length Option |
7.0 m (23.0 ft) |
|

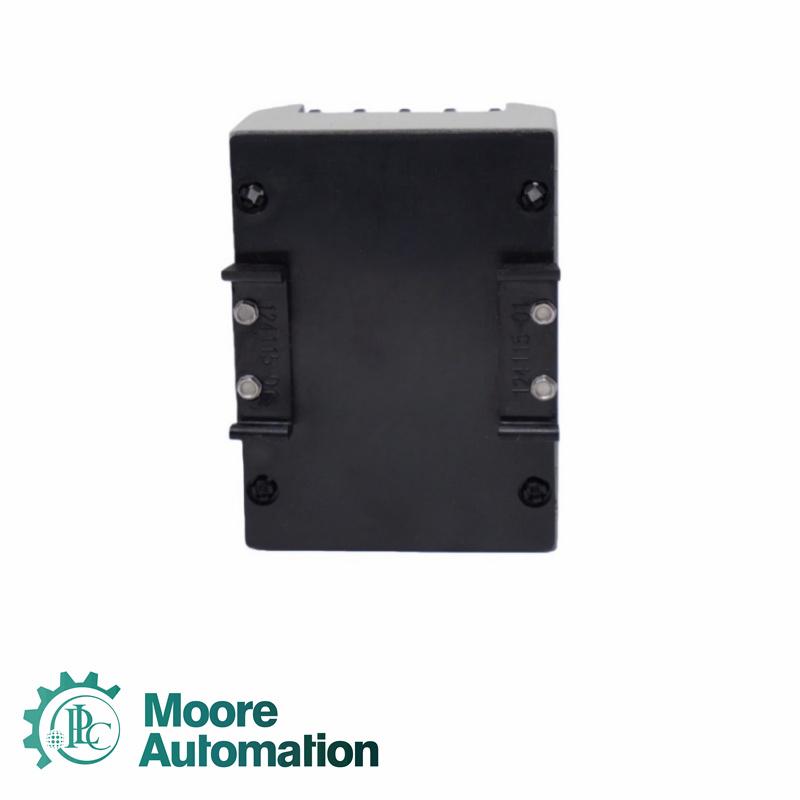

Mounting Option |
DIN clips and screws |
|
Agency Approval Option |
Not required |
|
Dimensions |
10 x 7.3 x 6 cm |
|
Weight |
0.46 kg |
|
Operating Temperature |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Input |
Accepts 1 non-contacting 3300 NSv proximity probe and extension cable |
|
Power Supply |
+12 to +35 V DC (at transmitter terminal) |
|
Maximum Loop Resistance |
1000 Ω (including cable at 35 V DC) |
|
Current Limiting |
23 mA typical |
|
Output Impedance |
10 kΩ (calibrated for 10 MΩ load) |
|
Linear Range (Prox Out) |
0.25–1.65 mm (10–65 mils) |
|
Leadwire Length |
Maximum 3 m (10 ft), BNC connector output |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 990-04-70-03-00
Q: What is the measurement range of the 990-04-70-03-00?
A: Full-scale range is 0–4 mils pp (0–100 μm pp), output as 4–20 mA.
Q: What is the supported sensor system length for the 990-04-70-03-00?
A: Requires a total probe + cable length of 7.0 m (23 ft).
Q: Does the 990-04-70-03-00 require a specific DIN rail?
A: It supports 35 mm DIN rail or direct screw mounting.
Q: What are the power and loop requirements for the 990-04-70-03-00?
A: Requires +12 to +35 Vdc; at 35 Vdc, loop resistance up to 1000 Ω.
Q: Can the 990-04-70-03-00 operate outdoors?
A: It works from -35°C to +85°C and is recommended for IP65+ enclosures outdoors.
Application
Water treatment plants: Used to monitor the radial vibration of large vertical pumps or feed pumps, directly connected to the plant control room.
Industrial fertilizer plants: Deployed on small turbines or auxiliary rotating equipment, monitoring operational health in real time via a 4-20 mA signal.
Cement processing plants: Provides displacement monitoring for bearings of large air classifiers and blowers, mitigating interference from industrial dust.
Pharmaceutical manufacturing plants: Centrifugal separation equipment installed in clean areas, utilizing its compact size for efficient installation.
Paper machinery plants: Monitors vibration of paper machine drive units and dryer cylinder bearings, preventing paper breaks caused by unexpected shutdowns.
