Product Overview

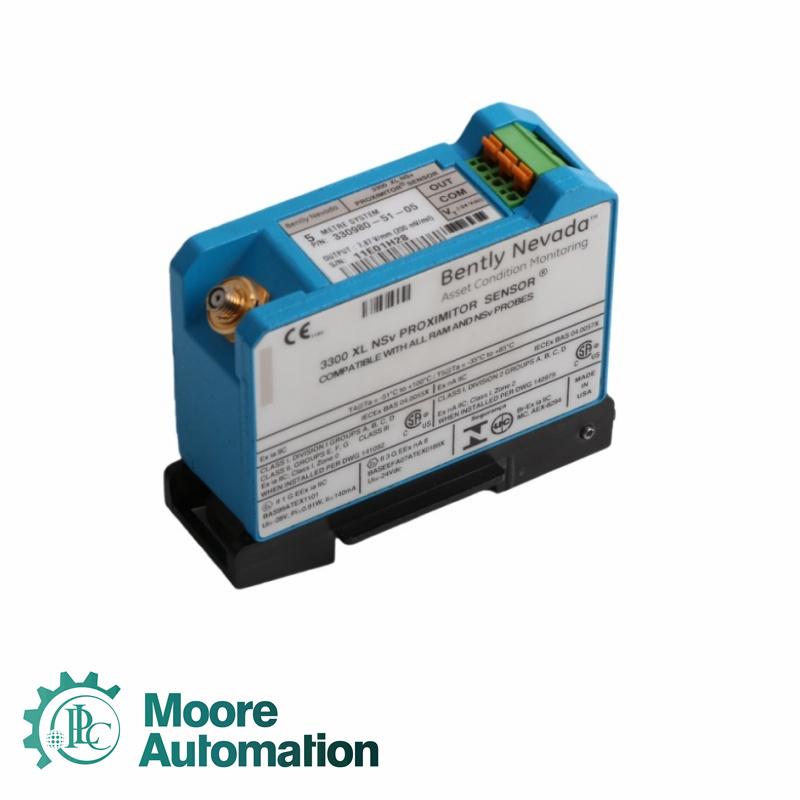

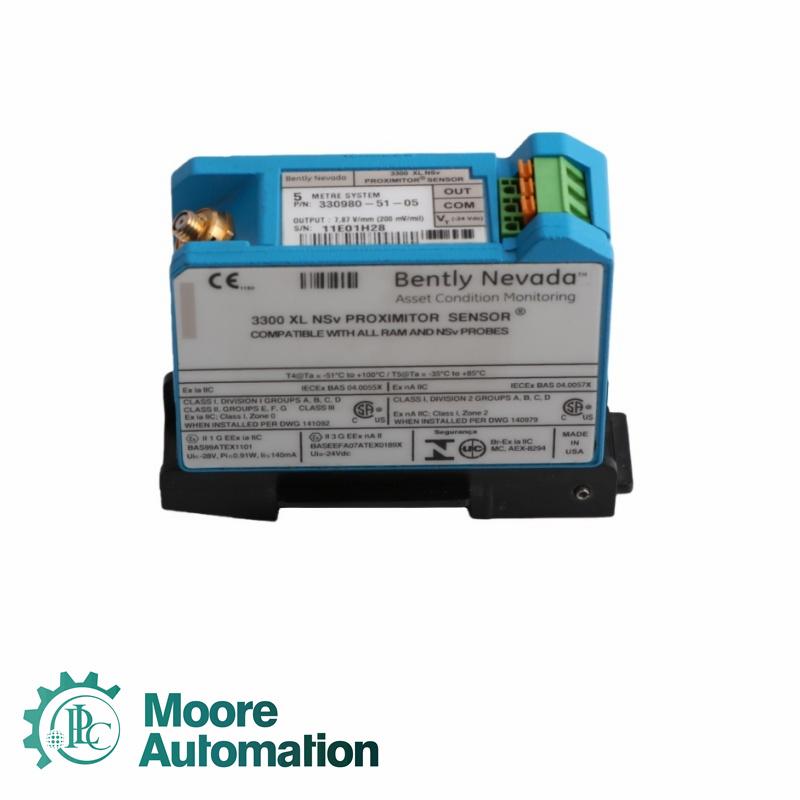

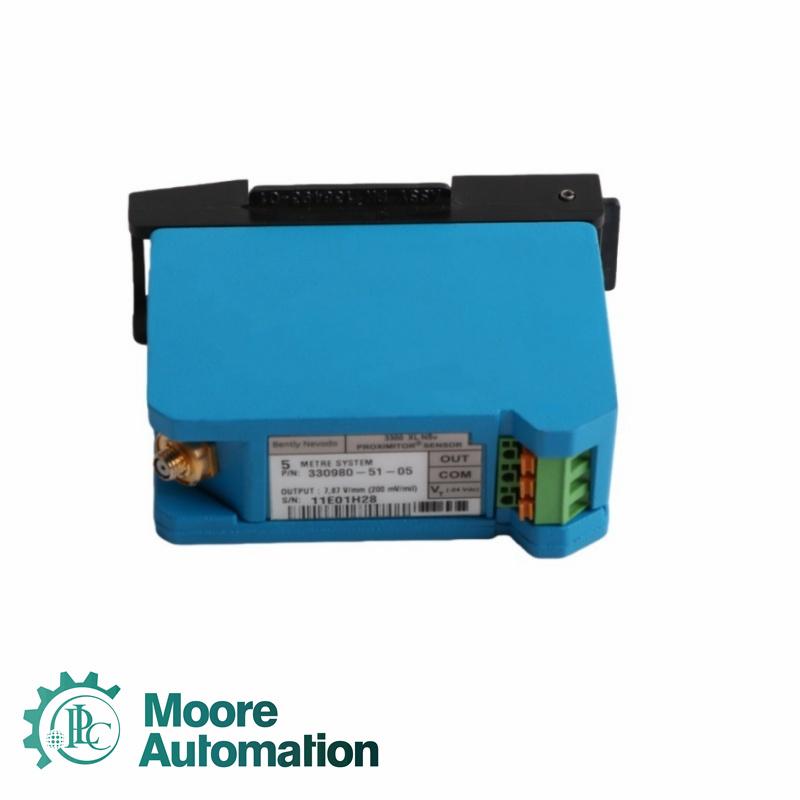

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
System Length and Mounting Option |
5.0 m (16.4 ft) system length, DIN mount |
|
Agency Approval Option |
Not required |
|
Dimensions |
8.7 x 3.5 x 7 cm |
|
Weight |
0.22 kg |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity |
100% condensing, non-submersible when connectors are protected |
|
Proximitor Sensor Material |
A380 aluminum |
|
Proximitor Sensor Input |
Accepts 1 non-contacting 3300 RAM or 3300 NSv proximity probe and extension cable |
|
Field Wiring |
0.2–1.5 mm² (16–24 AWG); 0.25–0.75 mm² (18–23 AWG with ferrules) |
|
Linear Range |
1.5 mm (60 mils) |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
< 2 mV change in output voltage per volt change in input voltage |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 330980-51-00
Q: What is the required total system length for the 330980-51-00?
A: This model is designed for a 5.0 m (16.4 ft) system length to maintain 1.5 mm linear accuracy.
Q: What probe inputs does the 330980-51-00 support?
A: It supports 3300 RAM and 3300 NSv eddy current probes with matching extension cables.
Q: Is the 330980-51-00 mounted with screws or clips?
A: It uses a DIN rail mount for quick installation in standard industrial cabinets.
Q: What are the output characteristics of the 330980-51-00?
A: It has 50 Ω output resistance and very high sensitivity, with <2 mV output change per 1 V input variation.
Q: Does the 330980-51-00 require protection in humidity?
A: It operates in 100% condensation humidity but must be sealed; it is not submersible.
Application
High-precision centrifuge plants: Used for radial displacement monitoring of high-speed spindles, providing high-frequency vibration feedback thanks to the narrow-beam characteristics of the NSv probe.
Fine chemical plants: Deployed in monitoring systems for various canned pumps or agitators, utilizing its excellent moisture-proof sealing to cope with high-humidity production environments.
Small turbine power plants: Installed on the turbine side of feedwater pumps and blowers, tracking dynamic changes within minute bearing clearances in real time.
Marine propulsion system plants: Used to monitor the condition of ship auxiliary machinery and turbocharger bearings, resisting high temperatures and vibration interference within the cabin.
Aero-engine testing plants: Provides high-resolution static position and dynamic vibration data for monitoring small rotors on test benches.
