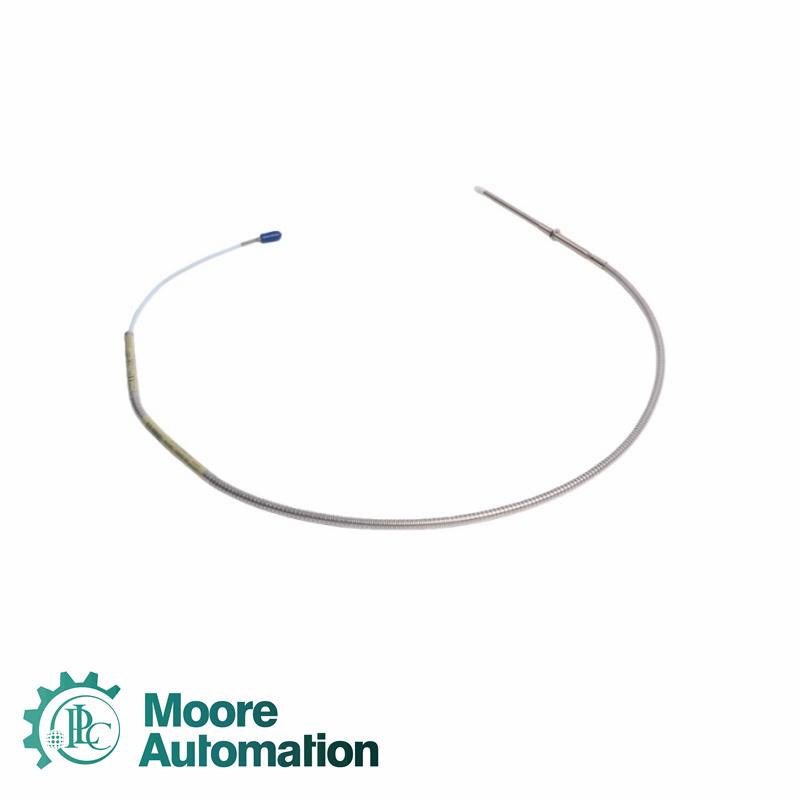

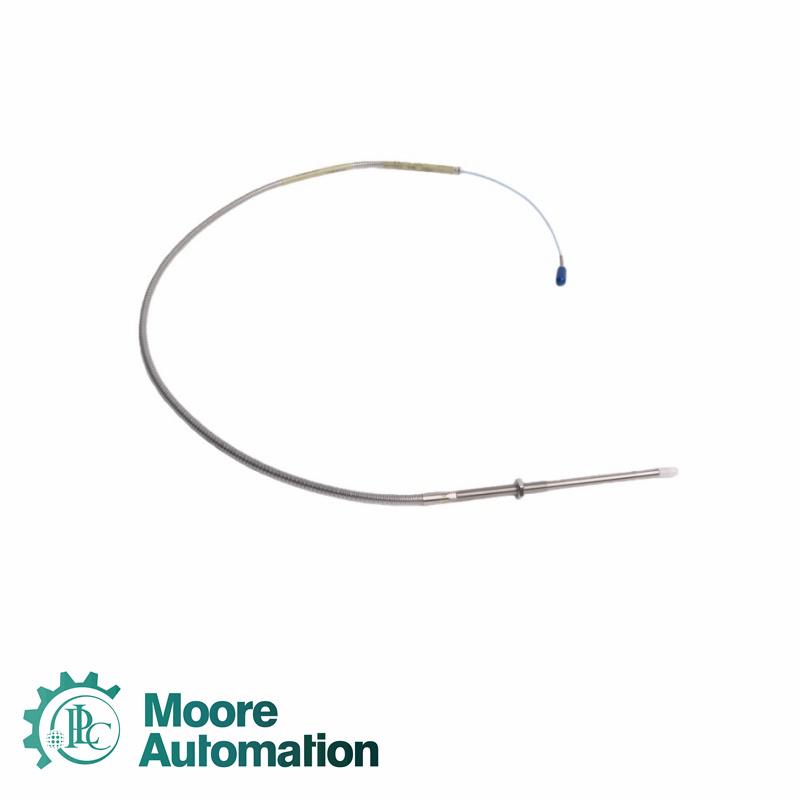

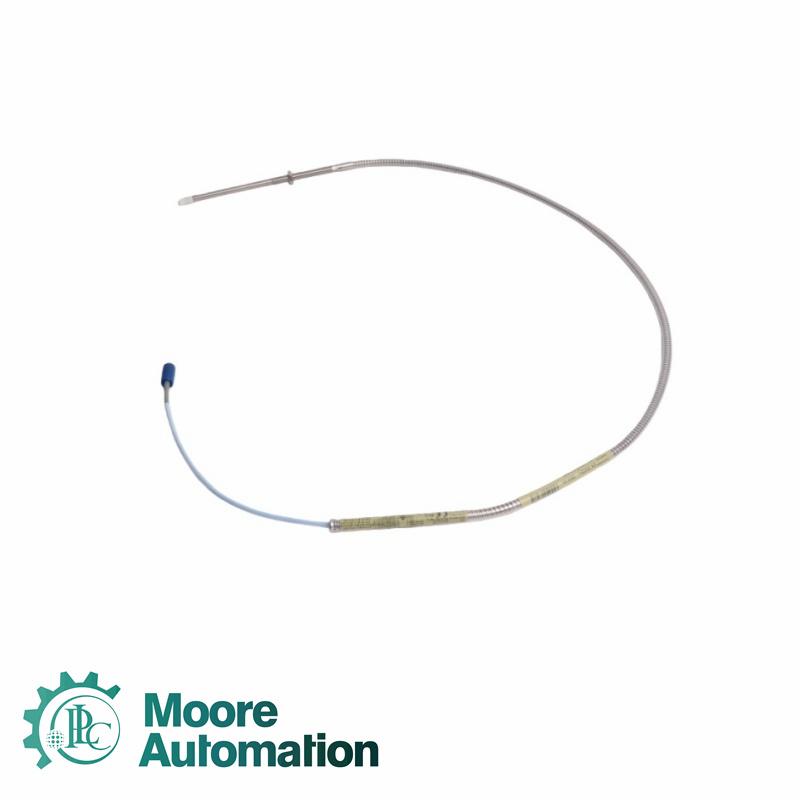

Bently Nevada 330904-08-15-10-02-CN 3300 NSv Proximity Probe

Bently Nevada 330904-08-15-10-02-CN 3300 NSv Proximity Probe

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

⭐⭐⭐⭐⭐Customer support & services
You want	Moore Provide
100% brand new	Original Factory Seal
Warranty	12 months
Package	Original packing with cartons.
Payment Term	100% TT In Advance
Service	Worldwide & 24 hours

Product Overview

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.

Call John Yang For Assistance

✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685

Detailed Specifications

Parameter	Value
Unthreaded Length Option	80 mm
Overall Case Length Option	150 mm
Cable Length Option	1.0 m (39 in)
Connector and Cable Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Multiple approvals
Probe Case Thread	M8 × 1
Maximum Thread Engagement Length	12 mm
Dimensions	1.4 x 1.2 x 116 cm
Weight	0.1 kg
Probe Temperature Range	-52°C to +177°C (-62°F to +351°F)
Storage Temperature	-52°C to +177°C (-62°F to +351°F)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel
Field Wiring	0.2–1.5 mm² (16–24 AWG); 0.25–0.75 mm² (18–23 AWG with ferrules)
Linear Range	1.5 mm (60 mils)
Recommended Gap Setting	1.0 mm (40 mils)
Output Resistance	50 Ω
Supply Sensitivity	< 2 mV change in output per volt change in input

Moore upholds the following values: We help keep global production running smoothly!

<<Global footprint>>

<<Integrity in business>>

<<Rapid response>>

<<High-quality products and highly competitive prices.>>

FAQ of 330904-08-15-10-02-CN

Q: What is the probe length configuration of the 330904-08-15-10-02-CN?
A: This model has 80 mm unthreaded length, 150 mm housing length, and a 1.0 m cable.

Q: What is the linear measurement range of the 330904-08-15-10-02-CN?
A: The probe provides a 1.5 mm (60 mils) linear range, with 1.0 mm recommended clearance.

Q: What is the maximum ambient temperature for the 330904-08-15-10-02-CN?
A: It operates from -52°C to +177°C.

Q: What mounting thread does the 330904-08-15-10-02-CN use?
A: It uses an M8×1 threaded housing with up to 12 mm thread depth.

Q: What are the connection and target requirements for the 330904-08-15-10-02-CN?
A: It uses a 50 Ω output with ClickLoc mini coax connector and is optimized for small shafts (<50 mm).

Application

Centrifuge manufacturers: Used to monitor the radial vibration of high-speed centrifuge spindles, ensuring dynamic balance stability under high-speed operation.

Air separation equipment manufacturers: Used in conjunction with high-speed turbine expanders, leveraging their high sensitivity to accurately capture micron-level axial displacements.

Shipbuilding and repair plants: Used for monitoring small turbochargers in ship propulsion systems, addressing interference from high temperatures and oil mist within the engine room.
