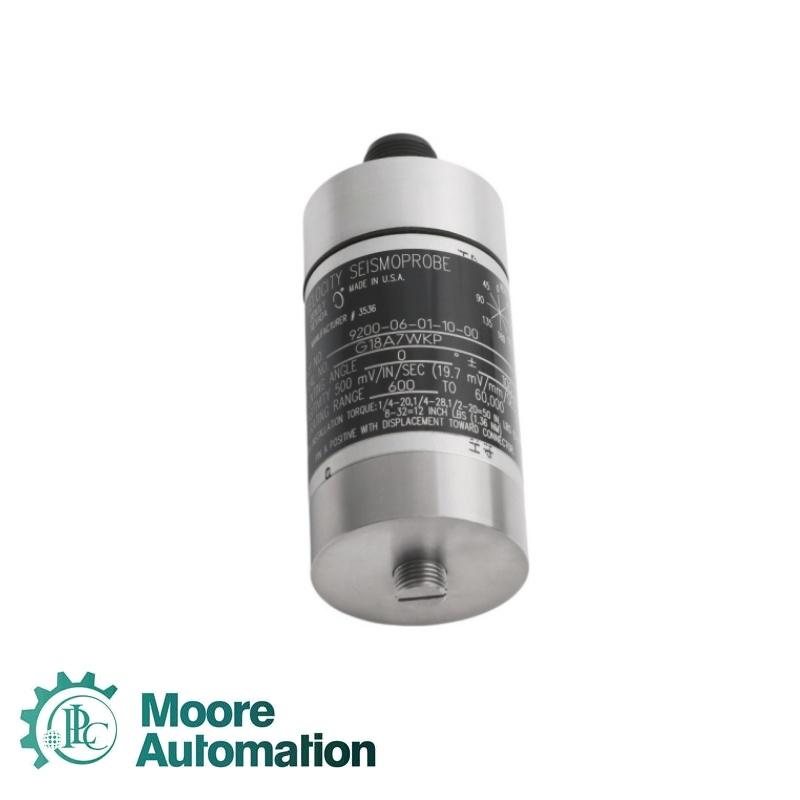

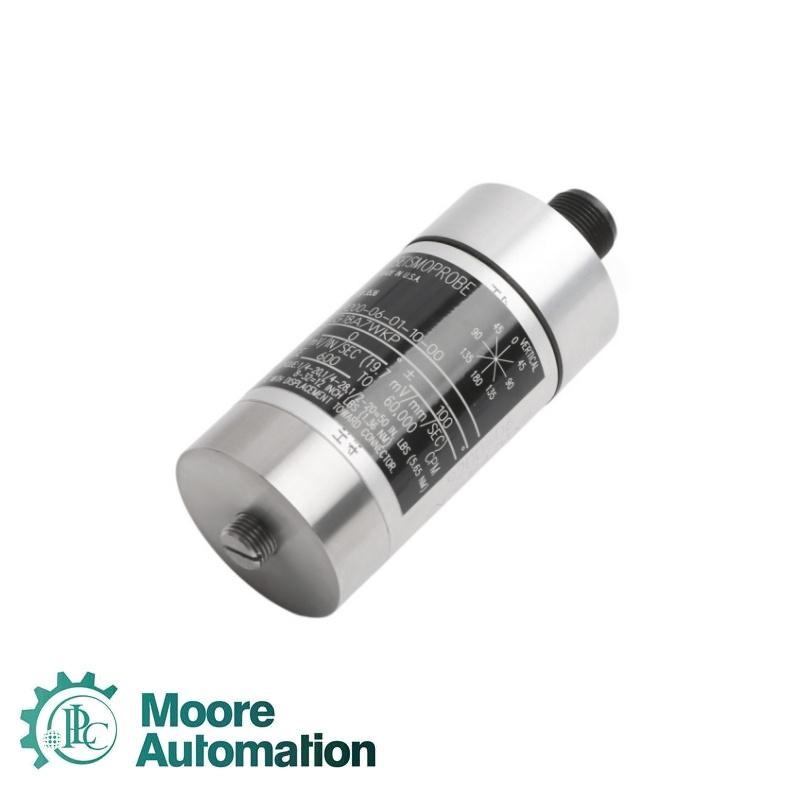

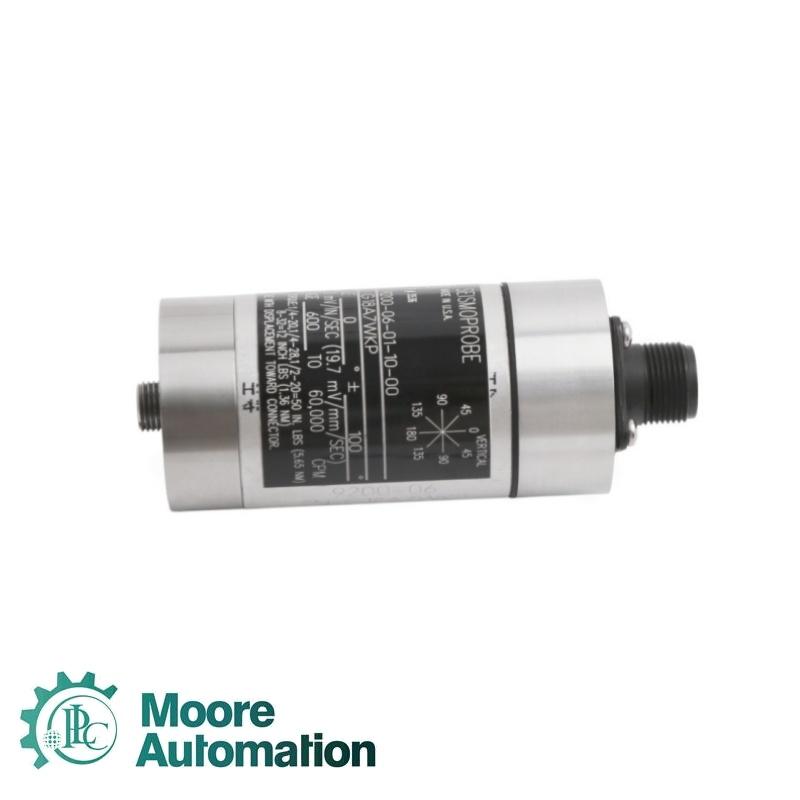

Bently Nevada 9200-06-01-11-04 Seismoprobe Velocity Transducer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Mode of transport:
HS CODE:
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days
Service:

Product Detail

Specifications

The Bently Nevada 9200-06-01-11-04 is a two-wire Seismoprobe velocity transducer configured for 0° orientation with a 10 Hz minimum operating frequency, top-mounted connector without integral cable, isolated circular M10 x 1 mounting base and ATEX/IECEx approval option.

Product typeTwo-wire Seismoprobe velocity transducer

Base model9200

Orientation option06

Mounting orientation0°; 10 Hz minimum operating frequency

Connector/cable option01; top mount, no cable

Mounting base option11; isolated circular M10 x 1

Agency approval option04; ATEX/IECEx

Sensitivity20 mV/mm/s (500 mV/in/s), ±5%

Calibration load10 kΩ, terminal A to B

Frequency response10 to 1000 Hz, +0/-3 dB typical

Dynamic operating range2.54 mm (0.100 in) peak-to-peak displacement

Velocity range25 mm/s (1 in/s) at stated test conditions

Coil resistance1.25 kΩ ±5%

Locked-coil inductance125 mH typical

Amplitude linearity±5% from 0.01 to 5.0 in/s at 100 Hz

Shock resistance50 g peak along non-sensitive axis

Operating/storage temperature-29 to +121 °C (-20 to +250 °F)

Relative humidityUp to 95% noncondensing

Maximum altitude2000 m (6561 ft)

Output polarityPin A positive relative to Pin B when case velocity is toward the connector

Application Industry

Bearing-housing vibration monitoringMeasures casing velocity on bearing housings and machine casings where low-frequency vibration is important.

Turbomachinery condition monitoringFeeds velocity data to a suitable monitoring channel for rotating equipment assessment.

Continuous protection systemsCan be connected through appropriate field cabling to compatible machinery-monitoring instruments.

Periodic diagnostic measurementsSupports route-based or test-instrument measurements when the installation uses the specified connector and base arrangement.

FAQ

What does option 06 set on Bently Nevada 9200-06-01-11-04?

It specifies the 0° mounting orientation and a 10 Hz minimum operating frequency.

Which mounting base is included with Bently Nevada 9200-06-01-11-04?

The configuration uses an isolated circular base with an M10 x 1 stud; follow the mounting drawing for the mating hardware.

How should Bently Nevada 9200-06-01-11-04 be terminated electrically?

Terminate the two-wire output across terminals A and B with the specified 10 kΩ calibration load.

What cable arrangement is required for Bently Nevada 9200-06-01-11-04?

Option 01 is a top-mounted connector without an integral cable, so select a compatible interconnection cable for the installation.

What environmental limits apply to Bently Nevada 9200-06-01-11-04?

Use it from -29 to +121 °C, at up to 95% noncondensing humidity and up to 2000 m altitude.
