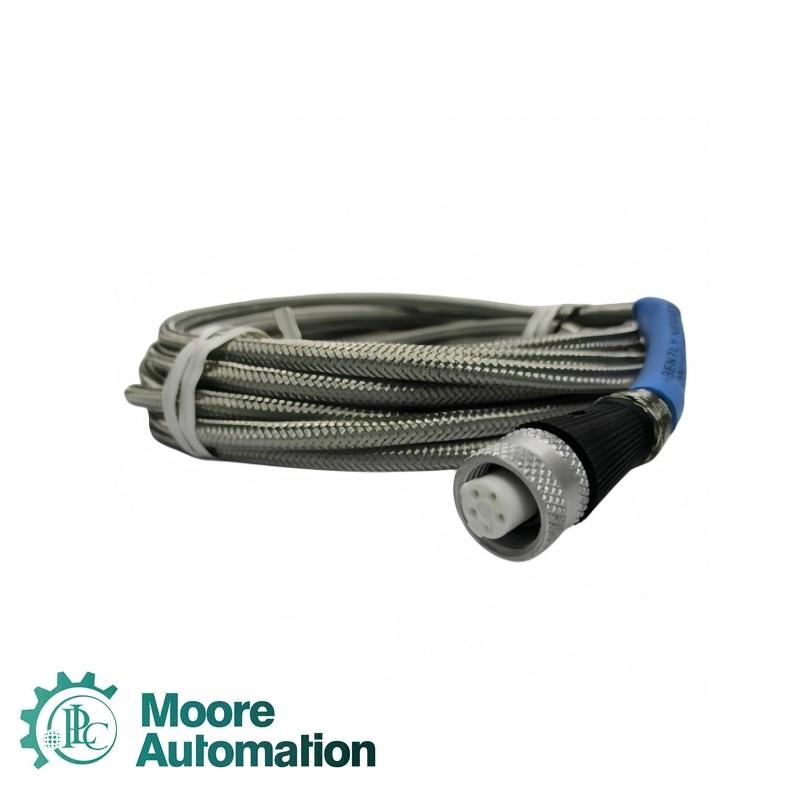

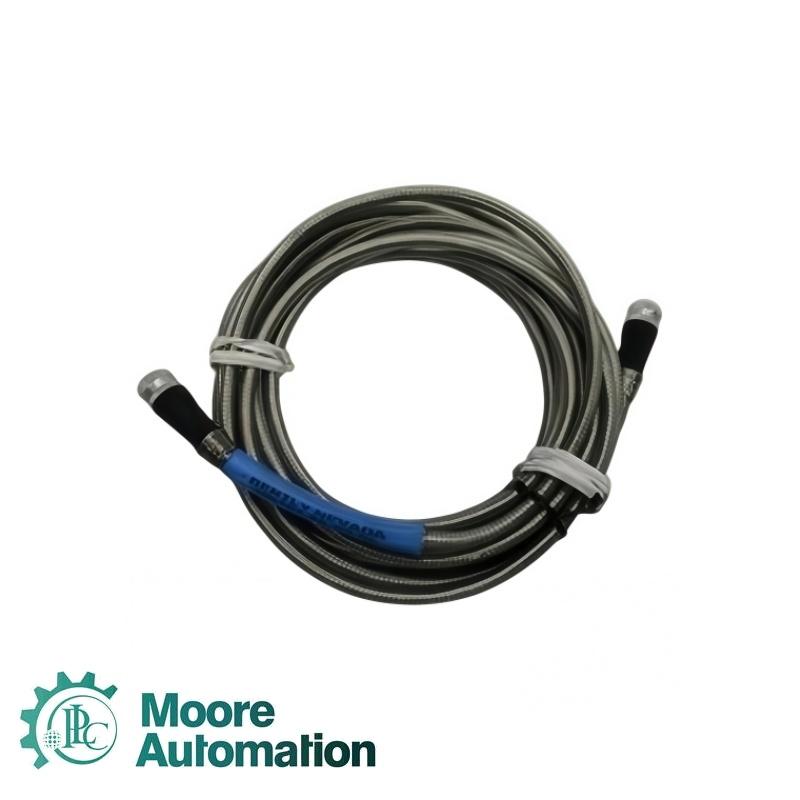

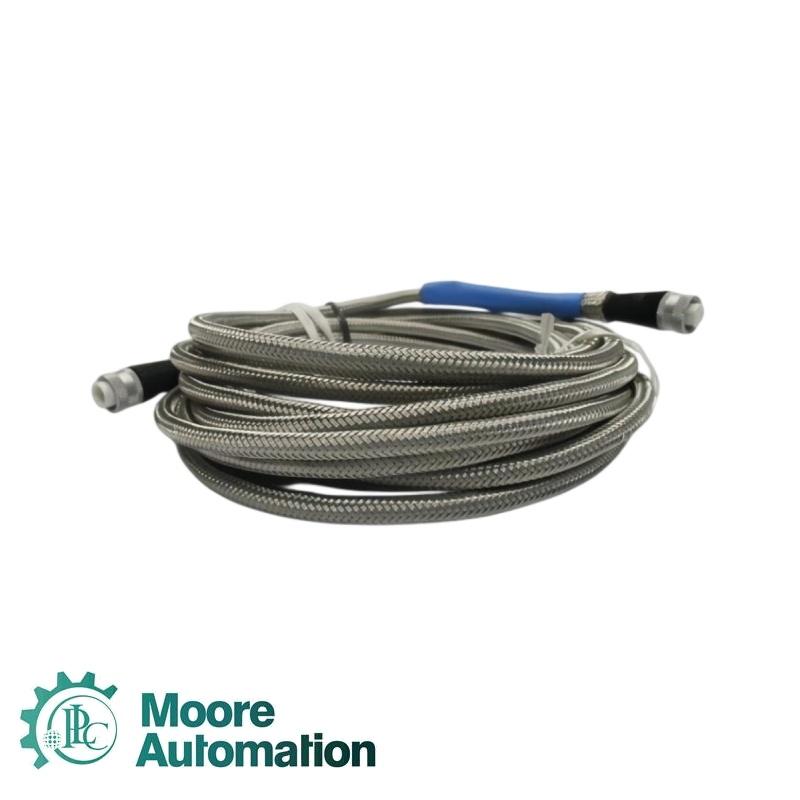

Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00 Transducer Cable

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Mode of transport:
HS CODE:
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days
Service:

Product Detail

Specifications

The Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00 is a configurable transducer cable assembly used to connect acceleration transducers to a receiving monitoring module. The supplied modification code is retained exactly as provided; cable length and option fields remain represented by the XX placeholders.

Product typeTransducer cable assembly

Cable family200151

Order format200151-XX-XX-XX

Modification code323357-15-03-00

Connection purposeAcceleration transducer to receiving monitoring module

Conductor count4

Conductor size22 AWG

ShieldingFoil shield and drain wire, 100% coverage

Outer jacketPVC

Operating temperature-20 to +100 °C (-4 to +212 °F)

Conditional low-temperature useDown to -40 °C when cable is not moved or flexed

Minimum bend radius63.5 mm (2.5 in)

Module-end connectorScrew-on, 5-pin, keyed connector

Transducer-end connectorPT06F8-4S or equivalent

Coupling-nut thread1/2-20 UNF

Coupling-nut material2011 T3 aluminum or UV-stabilized black nylon

Contact materialGold-plated nickel-coated brass

Cable assembly standardUL 2238

Ingress protectionIP67

Maximum cable length25 m (82 ft)

Application Industry

Accelerometer interconnectionCarries the transducer signal between an acceleration sensor and the receiving monitoring module.

Machinery vibration routesProvides a fixed cable path for vibration measurements on rotating equipment.

Condition-monitoring panelsSupports shielded field wiring where connectorized sensor replacement is required.

Industrial sensor maintenanceProvides a defined connector, bend-radius and temperature envelope for service planning.

FAQ

Which connector is used at the receiving-module end of Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00?

The receiving end uses a screw-on, keyed five-pin connector; verify the mating socket before installation.

What bend radius should be maintained for Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00?

Keep every routing bend at or above 63.5 mm (2.5 in) to avoid stressing the cable assembly.

Can Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00 be flexed below -20 °C?

No. Lower-temperature use is permitted only when the cable remains stationary and is not flexed.

How is the cable shield arranged in Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00?

The four conductors use a foil shield with a drain wire and full coverage; terminate the shield according to the installation drawing.

How should the modification suffix for Bently Nevada 200151-XX-XX-XX MOD：323357-15-03-00 be checked?

Compare the supplied modification code with the project bill of materials and verify the connector and length options before fitting.
