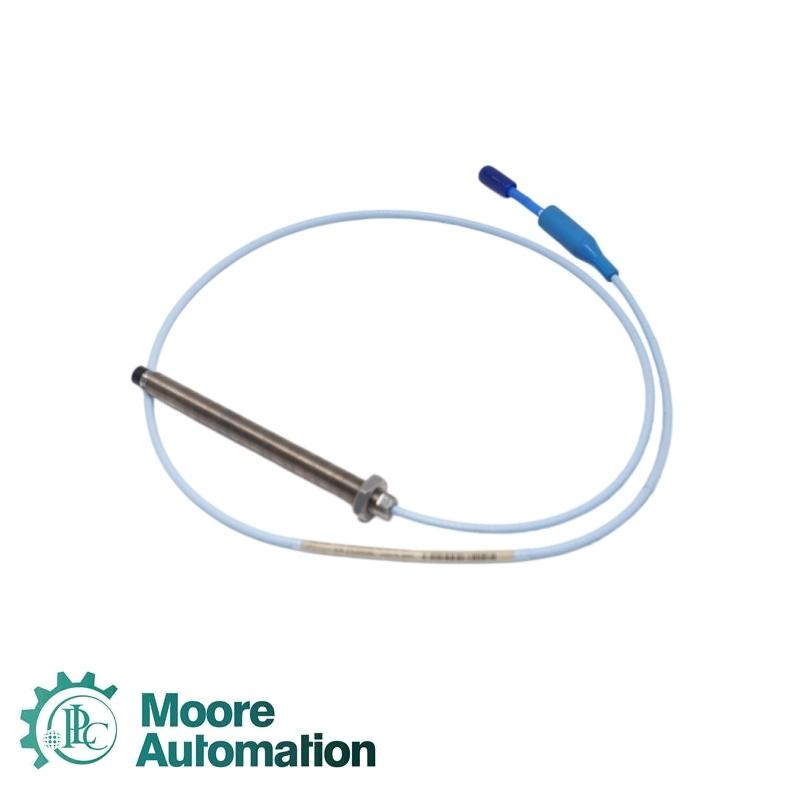

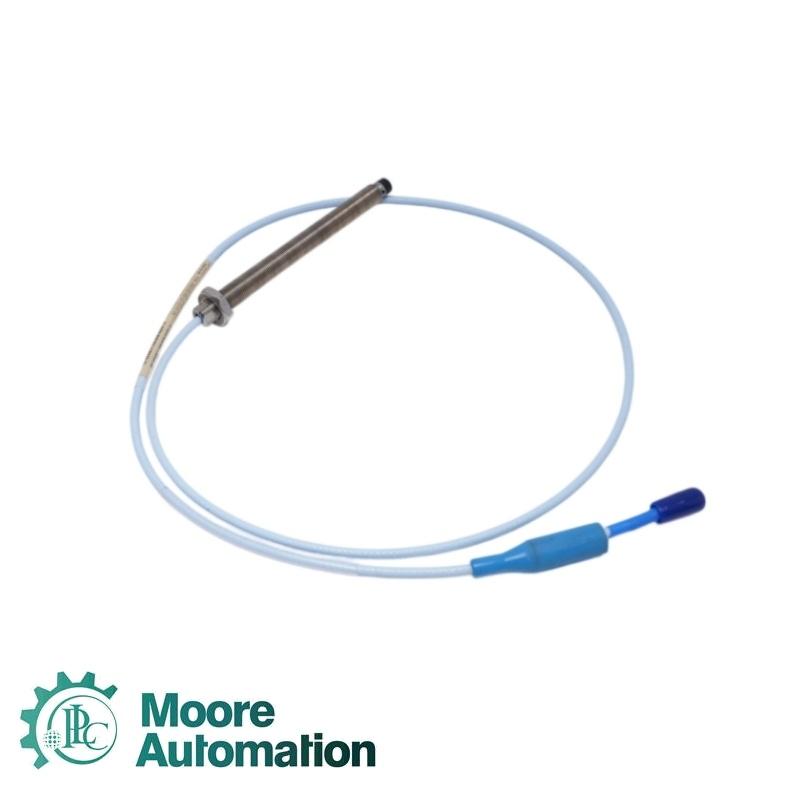

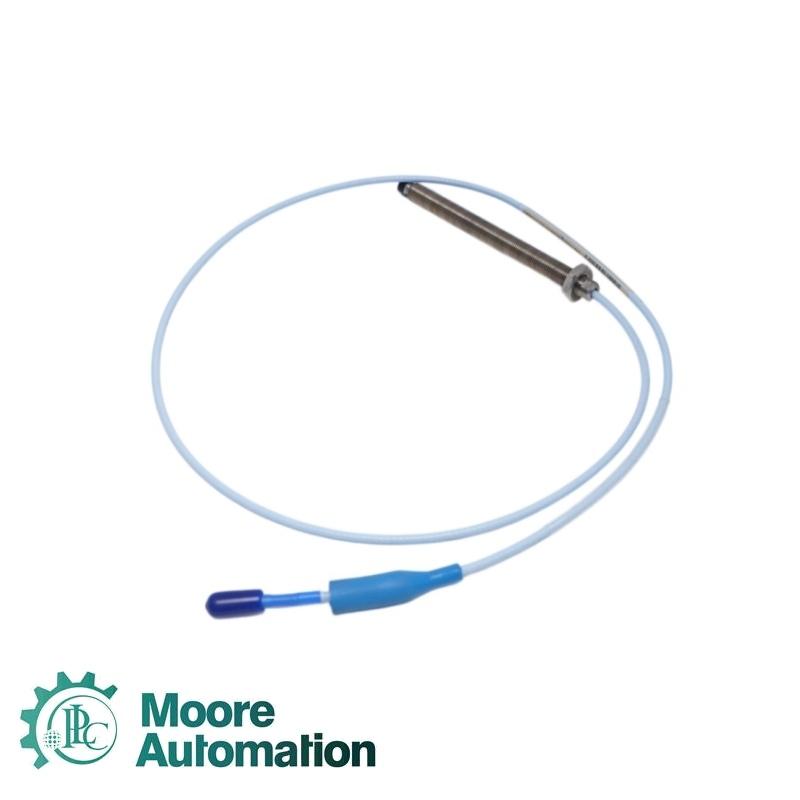

Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Mode of transport:
HS CODE:
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days
Service:

Product Detail

Specifications

The Bently Nevada 330103-00-12-10-12-05 is a metric 3300 XL 8 mm proximity probe configuration with an M10 x 1 thread, 120 mm case length, 1.0 m total length, FluidLoc cable and CSA/ATEX/IECEx approval option. It is used as part of a matched proximity transducer system for shaft vibration and position measurement.

Product type3300 XL 8 mm proximity probe

Base part number330103

Probe threadM10 x 1

ArmorWithout armor

Unthreaded-length code00

Unthreaded length0 mm

Case-length code12

Overall case length120 mm

Total-length code10

Total probe length1.0 m (3.3 ft)

Connector/cable code12

Connector and cableMiniature coaxial ClickLoc connector, FluidLoc cable

Agency approval code05

Agency approvalsCSA, ATEX, IECEx

Linear range2 mm (80 mils)

Frequency response0 to 10 kHz, +0/-3 dB

Minimum target size15.2 mm (0.6 in) diameter, flat target

Recommended radial gap1.27 mm (50 mils), approximately -9 Vdc

Application Industry

Shaft vibration monitoringMeasures dynamic shaft vibration when installed as part of a matched eddy-current transducer system.

Axial position measurementProvides non-contact displacement sensing for thrust and axial-position monitoring.

Rotating equipment protectionSupports condition-monitoring channels on turbines, compressors, pumps and other rotating machines.

Keyphasor and speed channelsCan be selected for speed or phase-reference measurements when the complete system is engineered for that function.

FAQ

How should Bently Nevada 330103-00-12-10-12-05 be paired with a Proximitor sensor?

Use the matching sensor and extension-cable length specified for the complete system, and keep the probe, cable and sensor within the same calibrated configuration.

What gap should be used when installing Bently Nevada 330103-00-12-10-12-05 for radial vibration?

Set the probe near the centre of its linear range, approximately 1.27 mm (50 mils), which corresponds to about -9 Vdc under the stated conditions.

What target size is required for Bently Nevada 330103-00-12-10-12-05?

Use a flat conductive target at least 15.2 mm (0.6 in) in diameter and observe the specified shaft-clearance guidance.

What thread engagement limit applies to Bently Nevada 330103-00-12-10-12-05?

Keep M10 x 1 thread engagement within 15 mm unless the installation is specifically reviewed for a different engagement.

What temperature range is specified for Bently Nevada 330103-00-12-10-12-05?

The standard probe operating and storage range is -52 to +177 °C; confirm the cable and sensor limits separately for the completed system.
