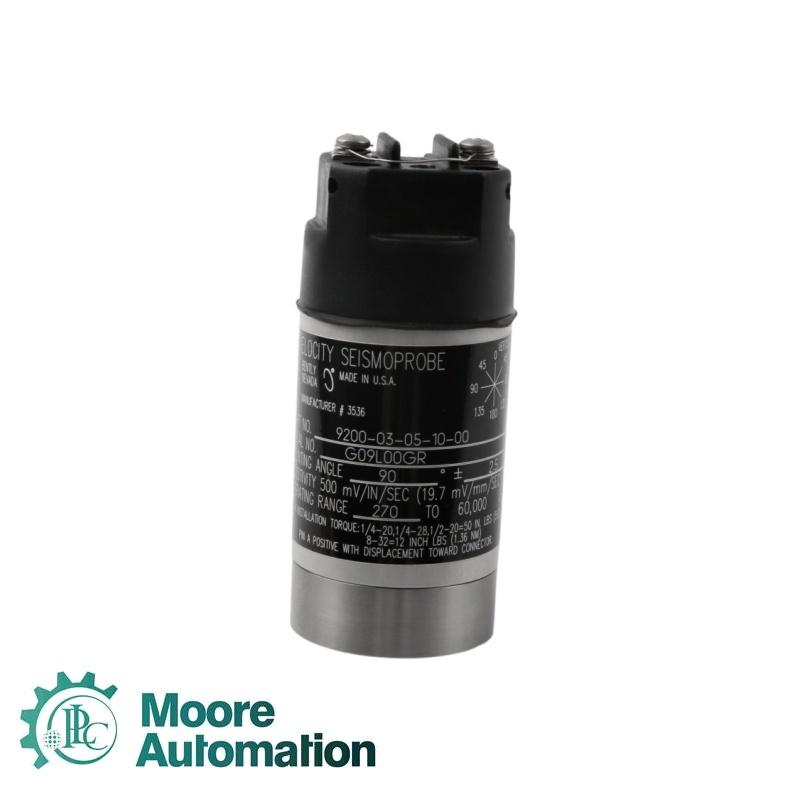

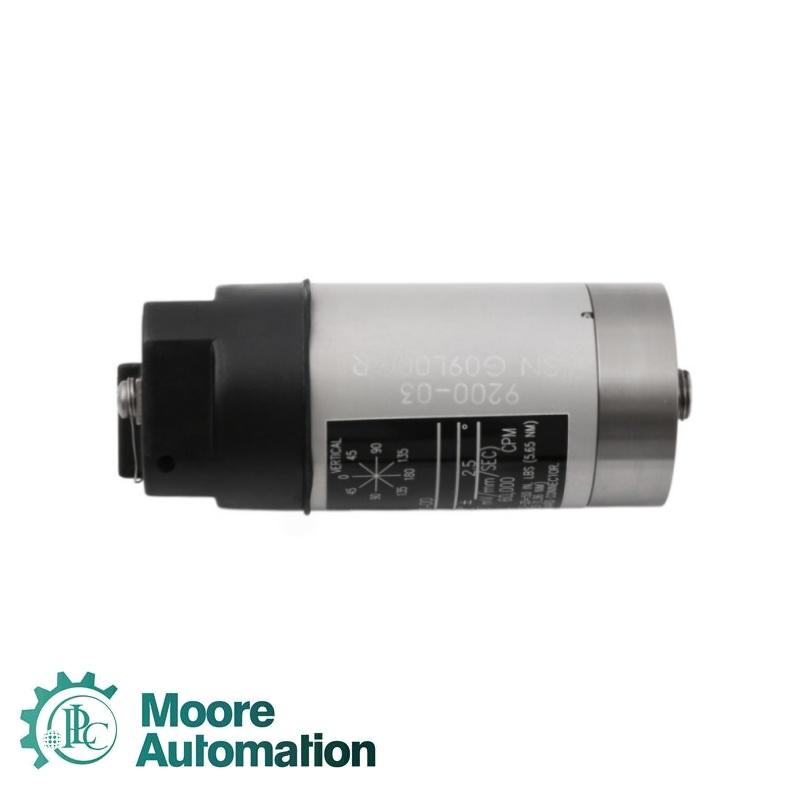

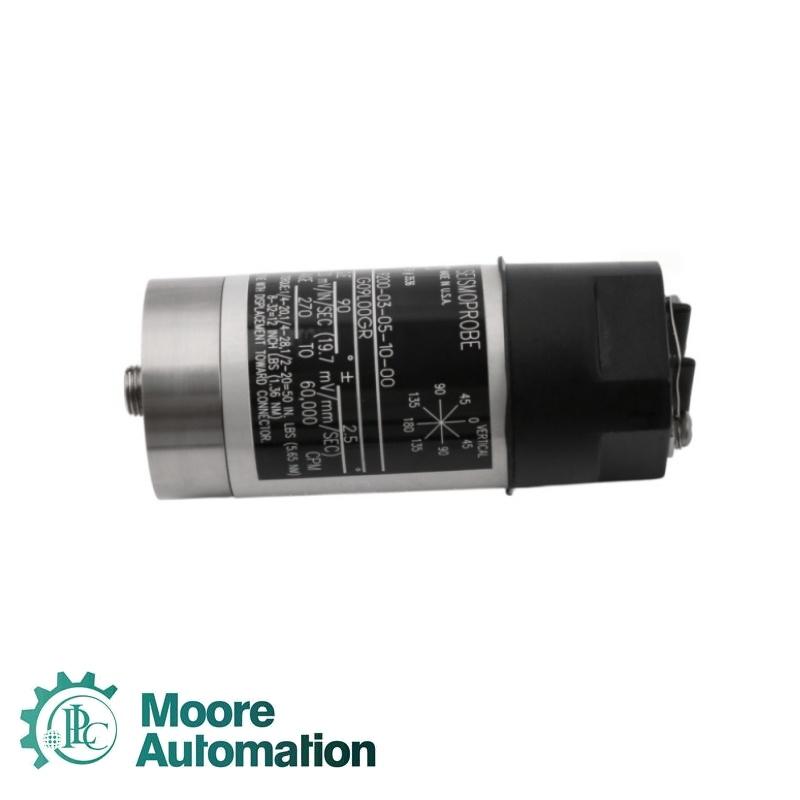

Bently Nevada 9200-03-02-02-00 Seismoprobe Velocity Transducer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 days

Product Detail

Specifications

The Bently Nevada 9200-03-02-02-00 is a two-wire, self-powered moving-coil velocity transducer intended for continuous monitoring and periodic measurements of bearing-housing, casing and structural vibration. This ordering configuration specifies a 90° ±2.5° mounting angle, a side-mount connector without an integral cable, a circular base with a 1/4-28 UNF stud, and no approval option. The official 9200 datasheet specifies 20 mV/mm/s (500 mV/in/s) sensitivity and a 4.5 to 1000 Hz typical response for this orientation code.

Mounting angle90° ±2.5°

Product typeSeismoprobe velocity transducer

TechnologyMoving-coil, two-wire, self-powered

Minimum operating frequency4.5 Hz (270 cpm)

Frequency response4.5 to 1000 Hz (+0/-3 dB typical)

Sensitivity20 mV/mm/s (500 mV/in/s), ±5%

Calibration load10 kΩ across terminals A and B

Sensitivity temperature coefficient0.2%/°C

Dynamic displacement2.54 mm (0.100 in) peak-to-peak maximum

Transverse sensitivity10% or less of sensitive-axis sensitivity

ConnectorSide mount, no integral cable

Mounting baseCircular base with 1/4-28 UNF stud

Mounting torque5.6 N·m (50 in·lb)

Operating and storage temperature-29 to +121 °C

Relative humidityUp to 95%, noncondensing

Maximum altitude2000 m (6561 ft)

Dimensions102 mm high × 41 mm diameter, typical

Weight300 g (10.5 oz), typical

Maximum lead-wire length305 m (1000 ft) to a 3300 or 3500 monitor

Approval optionNo approvals

Application Industry

Horizontal bearing-housing vibration monitoringSupports velocity measurement where the sensitive axis must be installed in the specified 90° orientation.

Radial machinery vibration measurementProvides casing or bearing-housing vibration data along a selected radial direction.

Structural response monitoringMeasures vibration velocity on rigid machine frames, supports and housings.

Portable and periodic diagnosticsSupports scheduled measurements when connected to compatible analysis equipment.

FAQ

Why is the mounting angle important for Bently Nevada 9200-03-02-02-00?

The ordering code specifies a 90° ±2.5° orientation. The moving-coil element must be installed in that defined position so the sensitivity and frequency response remain within the published limits.

How should the side connector be routed for Bently Nevada 9200-03-02-02-00?

The selected option has a side-mount connector and no integral cable. Route the compatible cable without sharp bends, connector strain or a path that allows moisture to collect.

Which mounting interface is used by Bently Nevada 9200-03-02-02-00?

The selected configuration uses a circular base with a 1/4-28 UNF stud. Prepare a clean, flat mounting surface and apply 5.6 N·m (50 in·lb) mounting torque.

What load and polarity apply to Bently Nevada 9200-03-02-02-00?

Calibration is specified with a 10 kΩ load across terminals A and B. Terminal A is positive relative to terminal B when the case velocity is toward the connector.

What environmental conditions should be checked for Bently Nevada 9200-03-02-02-00?

The published operating and storage range is -29 to +121 °C, with up to 95% noncondensing relative humidity and a maximum altitude of 2000 m. Protect the connector and cabling from moisture ingress.
