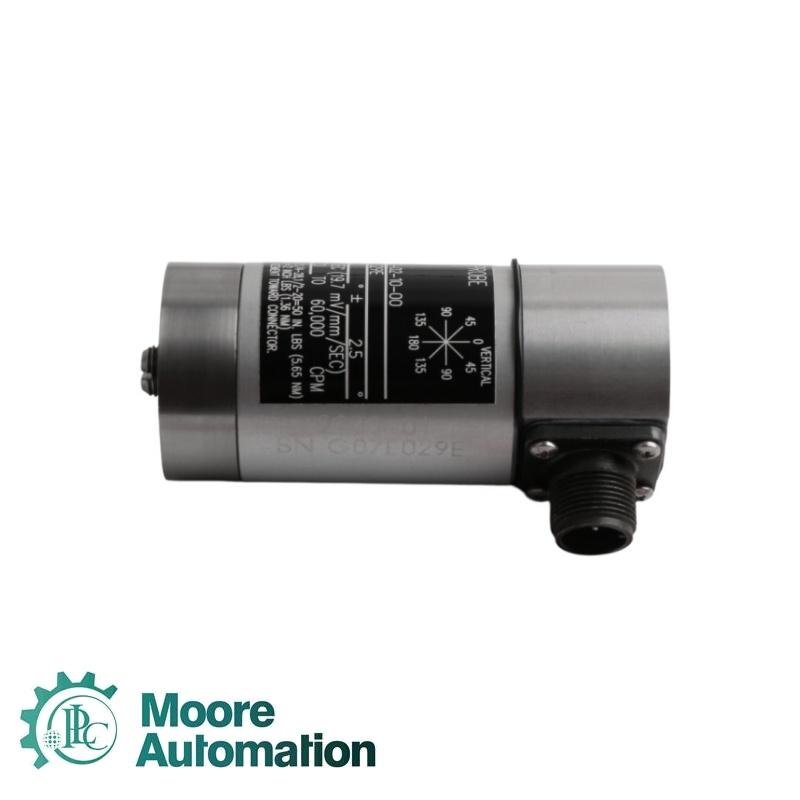

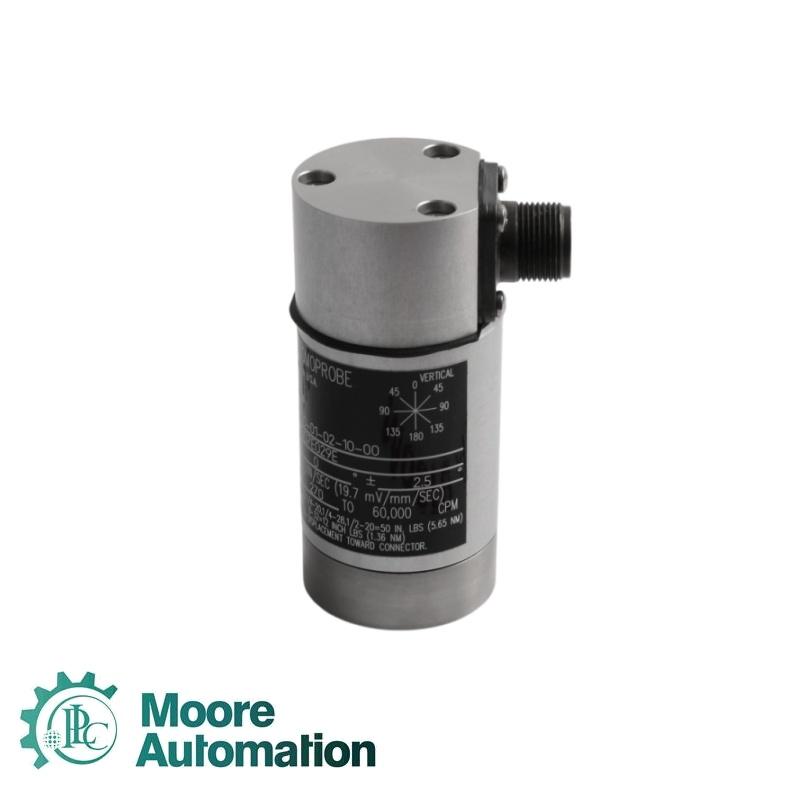

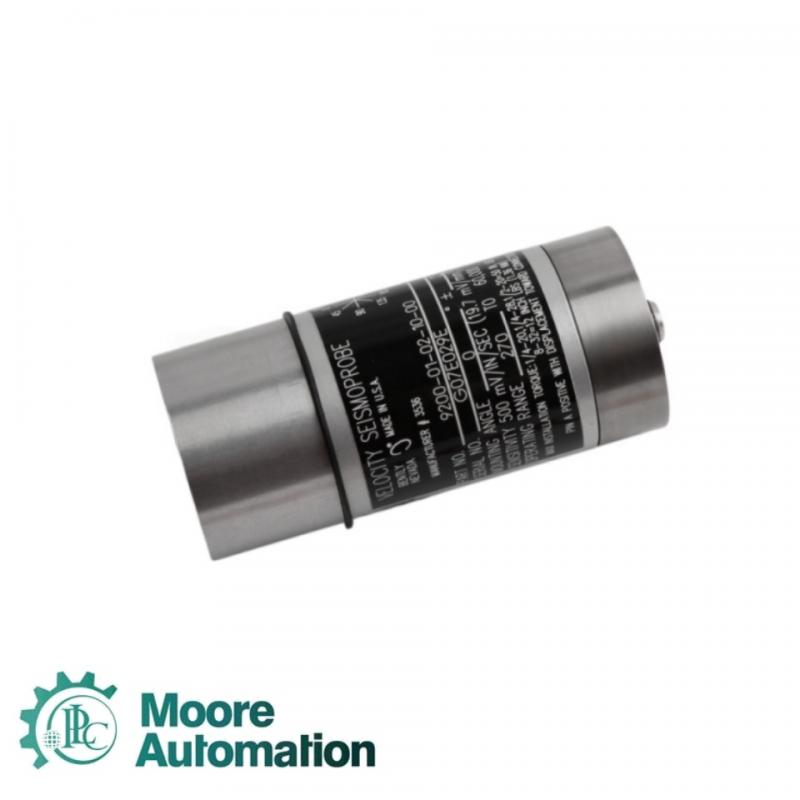

Bently Nevada 9200-01-02-02-00 Seismoprobe Velocity Transducer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 days

Product Detail

Specifications

The Bently Nevada 9200-01-02-02-00 is a two-wire, self-powered moving-coil velocity transducer for continuous monitoring or periodic measurement of bearing-housing, casing and structural vibration. This ordering configuration specifies a 0° ±2.5° mounting angle, a side-mount connector without an integral cable, a circular base with a 1/4-28 UNF stud, and no approval option. The official 9200 datasheet specifies 20 mV/mm/s (500 mV/in/s) sensitivity and a 4.5 to 1000 Hz typical response for this orientation code.

Mounting angle0° ±2.5°

Product typeSeismoprobe velocity transducer

TechnologyMoving-coil, two-wire, self-powered

Minimum operating frequency4.5 Hz (270 cpm)

Frequency response4.5 to 1000 Hz (+0/-3 dB typical)

Sensitivity20 mV/mm/s (500 mV/in/s), ±5%

Calibration load10 kΩ across terminals A and B

Sensitivity temperature coefficient0.2%/°C

Dynamic displacement2.54 mm (0.100 in) peak-to-peak maximum

Transverse sensitivity10% or less of sensitive-axis sensitivity

ConnectorSide mount, no integral cable

Mounting baseCircular base with 1/4-28 UNF stud

Mounting torque5.6 N·m (50 in·lb)

Operating and storage temperature-29 to +121 °C

Relative humidityUp to 95%, noncondensing

Maximum altitude2000 m (6561 ft)

Dimensions102 mm high × 41 mm diameter, typical

Weight300 g (10.5 oz), typical

Maximum lead-wire length305 m (1000 ft) to a 3300 or 3500 monitor

Approval optionNo approvals

Application Industry

Vertical bearing-housing vibration monitoringProvides direct velocity measurement where the sensitive axis is installed in the specified 0° orientation.

Machine casing condition monitoringSupports continuous observation of casing vibration on rotating machinery.

Structural vibration measurementMeasures vibration velocity on suitable rigid machine structures and supports.

Periodic diagnostic measurementsConnects to compatible test instruments for scheduled condition-assessment routes.

FAQ

What mounting orientation is specified for Bently Nevada 9200-01-02-02-00?

The ordering code specifies a 0° ±2.5° mounting angle. Install the sensitive axis in the documented orientation and verify the machine measurement direction before tightening.

Which cable arrangement is supplied with Bently Nevada 9200-01-02-02-00?

The connection option is a side-mount connector without an integral cable. Select the compatible interconnect cable separately and protect the connector from strain and moisture.

What base and mounting torque apply to Bently Nevada 9200-01-02-02-00?

The selected base is circular with a 1/4-28 UNF stud. Tighten the mounting stud to 5.6 N·m (50 in·lb) on a clean, flat mounting surface.

How far can Bently Nevada 9200-01-02-02-00 be wired to a monitoring system?

The official datasheet permits up to 305 m (1000 ft) of lead wire to a compatible 3300 or 3500 monitor; the installation must account for high-frequency roll-off and cable routing.

Which approval option is included with Bently Nevada 9200-01-02-02-00?

The selected approval code is 00, meaning no agency approval option is included. Confirm site certification requirements before installation.
