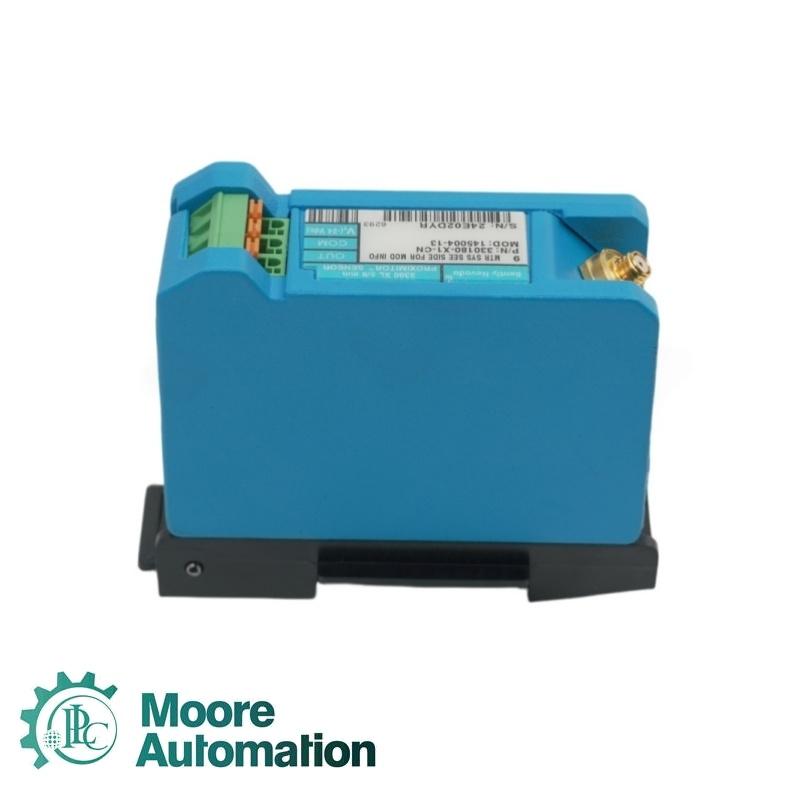

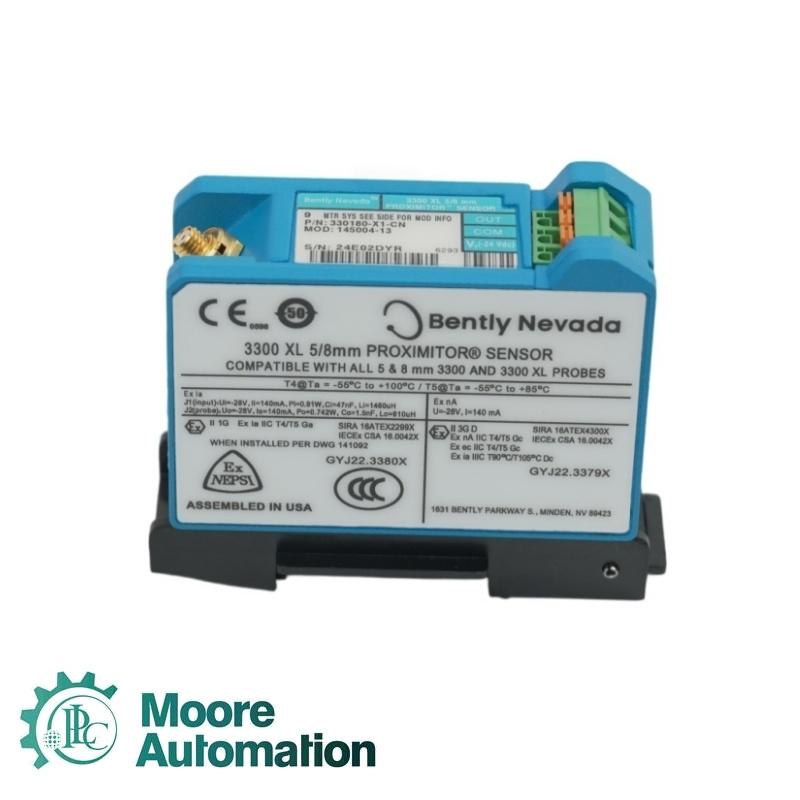

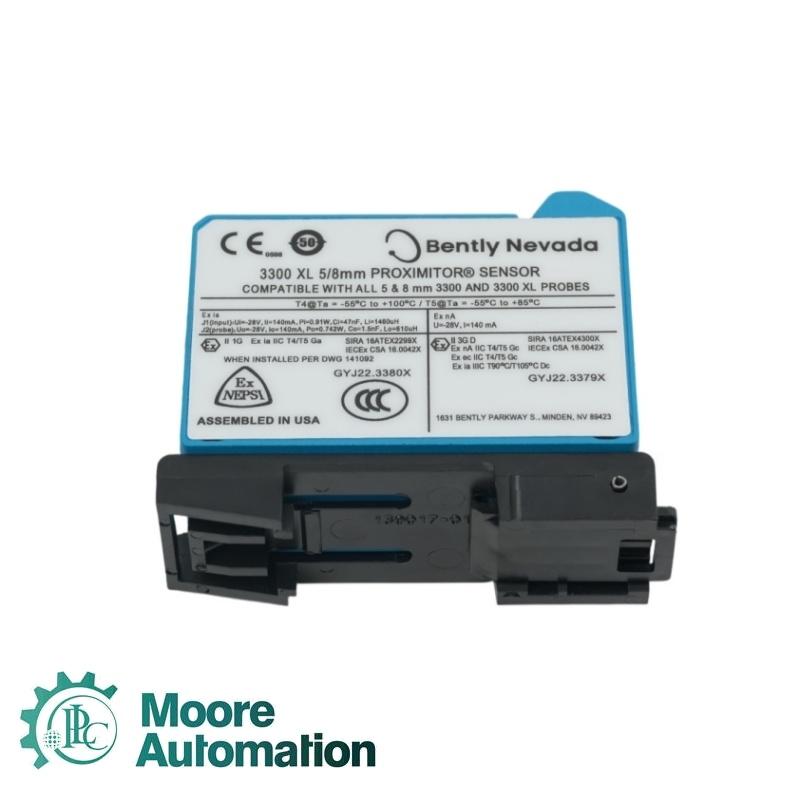

 Bently Nevada 330180-X1-05 MOD: 145004-132 3300 XL 8 mm Proximitor Sensor
330180-X1-05 MOD: 145004-132 330180-X1-05 MOD: 145004-132 330180-X1-05 MOD: 145004-132

Bently Nevada 330180-X1-05 MOD: 145004-132 3300 XL 8 mm Proximitor Sensor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330180-X1-05 MOD: 145004-132 is identified as a custom-configured 3300 XL 8 mm Proximitor Sensor. Official 3300 XL 8 mm system data defines the sensor electrical interface and performance; the X1 configuration and modification identifier must be matched to the supplied nameplate and approved project documentation before replacement.
Product type3300 XL 8 mm Proximitor Sensor
Configured suffixX1-05
Modification identifier145004-132
Compatible system3300 XL 8 mm proximity transducer system
Sensor inputOne 5 mm or 8 mm proximity probe and extension cable
Supply voltage-17.5 to -26 V DC
Maximum current12 mA
Output resistance50 Ω
Linear range2 mm (80 mil)
Recommended radial gap-9 V DC, approximately 1.27 mm
Nominal scale factor7.87 V/mm (200 mV/mil)
Frequency response0 to 10 kHz, +0 / -3 dB
Operating temperature-52 to +100 °C
Approval suffix 05CSA, ATEX and IECEx
Application Industry
01
Radial shaft-vibration monitoringConditions the proximity signal for continuous machinery protection channels.
02
Axial-position measurementSupports noncontacting position measurements when paired with the matched probe system.
03
Keyphasor and speed channelsProvides the conditioned transducer signal used for phase-reference and speed measurement.
04
Retrofit maintenanceFits documented 3300 XL system replacements after the custom configuration is verified.
FAQ
How should Bently Nevada 330180-X1-05 MOD: 145004-132 be verified before replacement?
Match the full suffix, modification identifier, nameplate, connector arrangement and approved project record.
Which probes can connect to Bently Nevada 330180-X1-05 MOD: 145004-132?
Use a compatible 5 mm or 8 mm proximity probe and extension cable as a matched transducer system.
What supply range applies to Bently Nevada 330180-X1-05 MOD: 145004-132?
Provide -17.5 to -26 V DC without barriers, observing the published barrier requirements where applicable.
What gap should be targeted with Bently Nevada 330180-X1-05 MOD: 145004-132?
For radial vibration, the recommended center gap corresponds to approximately -9 V DC or 1.27 mm.
What commissioning check is required for Bently Nevada 330180-X1-05 MOD: 145004-132?
Confirm gap voltage, signal scale, system length, alarm configuration and stable operation against the approved baseline.
