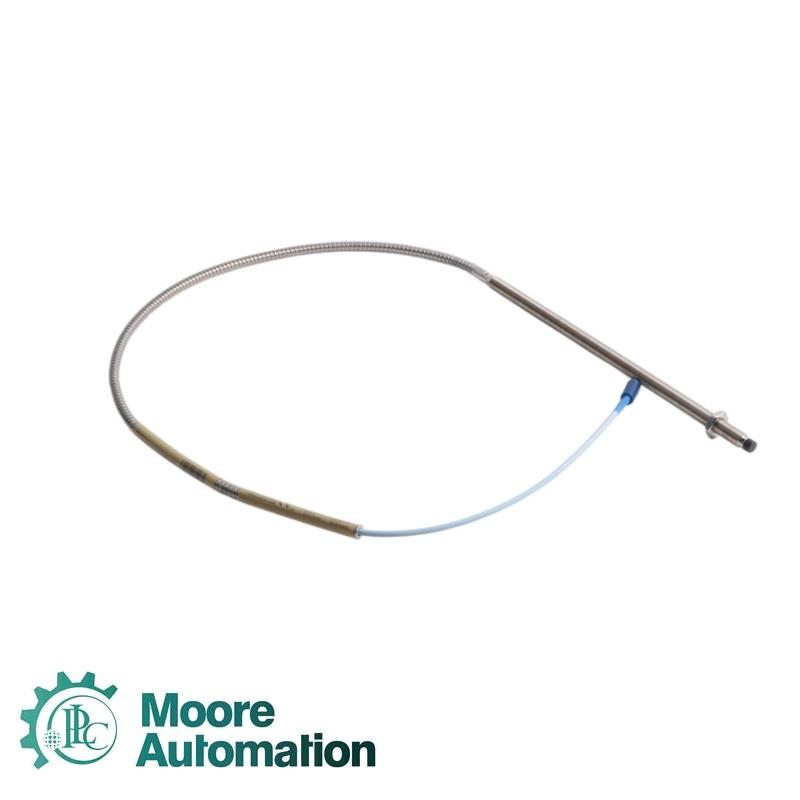

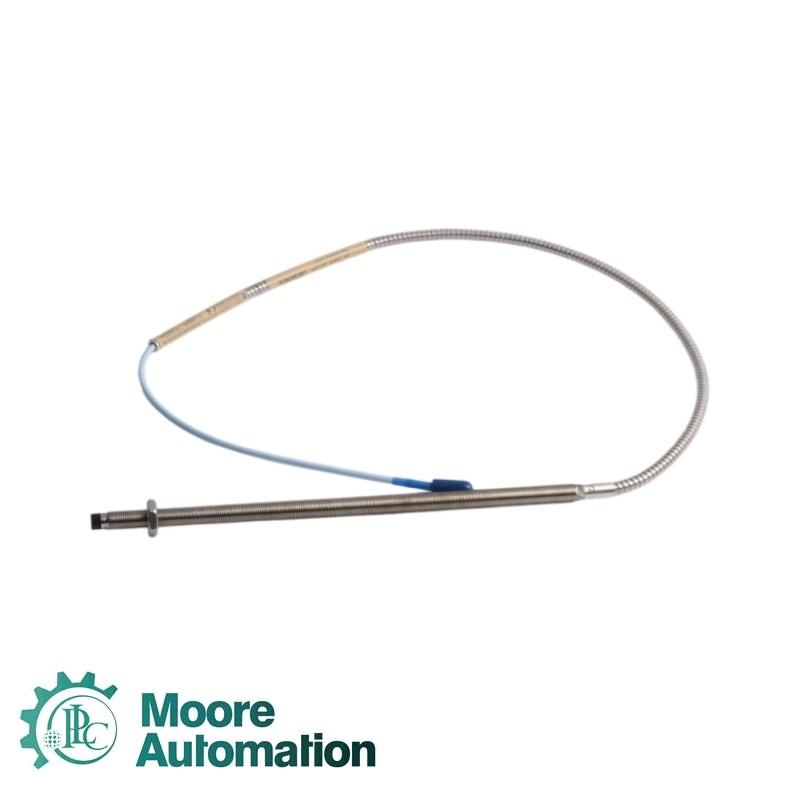

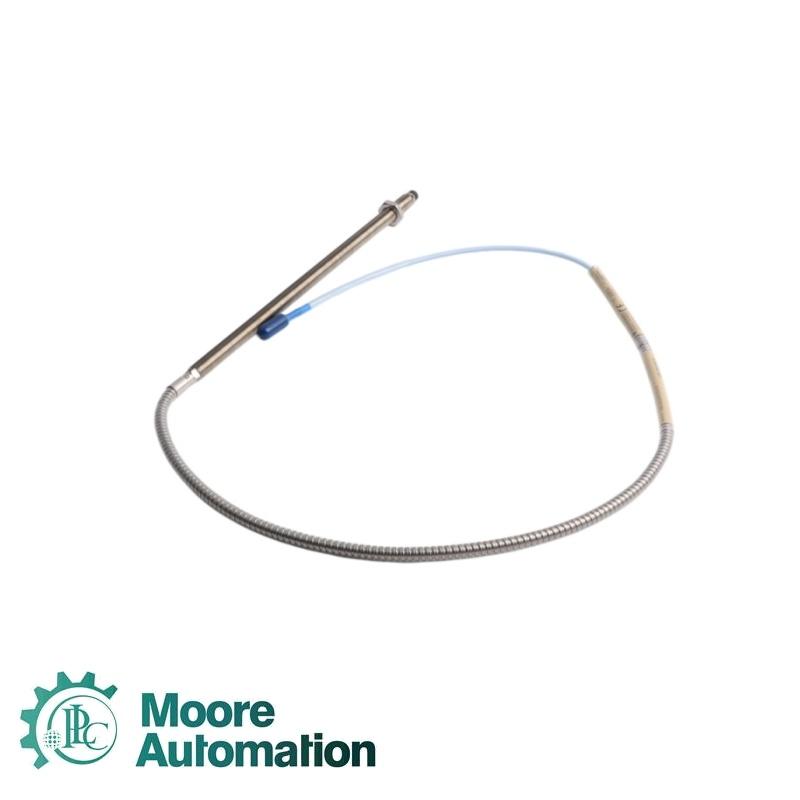

Bently Nevada 330104-00-25-50-02-CN 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

Bently Nevada 330104-00-25-50-02-CN 3300 XL 8 mm Proximity Probe is Bently Nevada 330104-00-25-50-02-CN is a 3300 XL 8 mm proximity probe with an M10 × 1 threaded case and protective armor. The configured probe has 0 mm unthreaded length, a 250 mm case, a 5.0 m total length, standard cable, a ClickLoc connector without a protector, and the CN country-specific ordering option.

Product type

3300 XL 8 mm proximity probe

Probe thread

M10 × 1

Cable armor

Included

Probe tip diameter

8.0 mm (0.31 in)

Unthreaded length

0 mm

Overall case length

250 mm

Total length

5.0 m (16.4 ft)

Connector

Miniature coaxial ClickLoc

Connector protector

Not included

Cable type

Standard 75 Ω triaxial FEP-insulated cable

Ordering option

Probe tip material

Polyphenylene sulfide (PPS)

Probe case material

AISI 303 or 304 stainless steel

Minimum cable bend radius

25.4 mm (1.0 in)

Linear range

2 mm (80 mils)

Recommended radial gap

1.27 mm (50 mils), approximately -9 V DC

Scale factor

7.87 V/mm (200 mV/mil) ±5%

Frequency response

0 to 10 kHz, +0/-3 dB

Application Industry

Radial vibration monitoring

Measures shaft vibration on fluid-film bearing machinery without mechanical contact.

Axial position measurement

Tracks static shaft position where the probe can view a conductive target.

Keyphasor reference

Provides a phase-reference signal when installed with the required target geometry.

Speed measurement

Supports non-contacting rotational speed sensing in documented installations.

FAQ

What thread and armor configuration is supplied with Bently Nevada 330104-00-25-50-02-CN?

The probe uses an M10 × 1 case thread and includes flexible stainless-steel armor over the lead.

What mechanical lengths are encoded in Bently Nevada 330104-00-25-50-02-CN?

The configured unthreaded length is 0 mm, the case length is 250 mm, and the overall lead length is 5.0 m.

Which cable connection is provided on Bently Nevada 330104-00-25-50-02-CN?

The assembly uses standard triaxial cable and a miniature coaxial ClickLoc connector without a separate protector.

What gap should be checked when installing Bently Nevada 330104-00-25-50-02-CN?

For radial vibration service, set the probe near the center of the linear range at about 1.27 mm or approximately -9 V DC.

What should be verified for the CN suffix on Bently Nevada 330104-00-25-50-02-CN?

Confirm the country-specific approval documentation and installation drawing required for the destination and site classification.
