 Bently Nevada 84510-30 Armored Interconnection Cable
84510-30 84510-30 84510-30

Bently Nevada 84510-30 Armored Interconnection Cable

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications

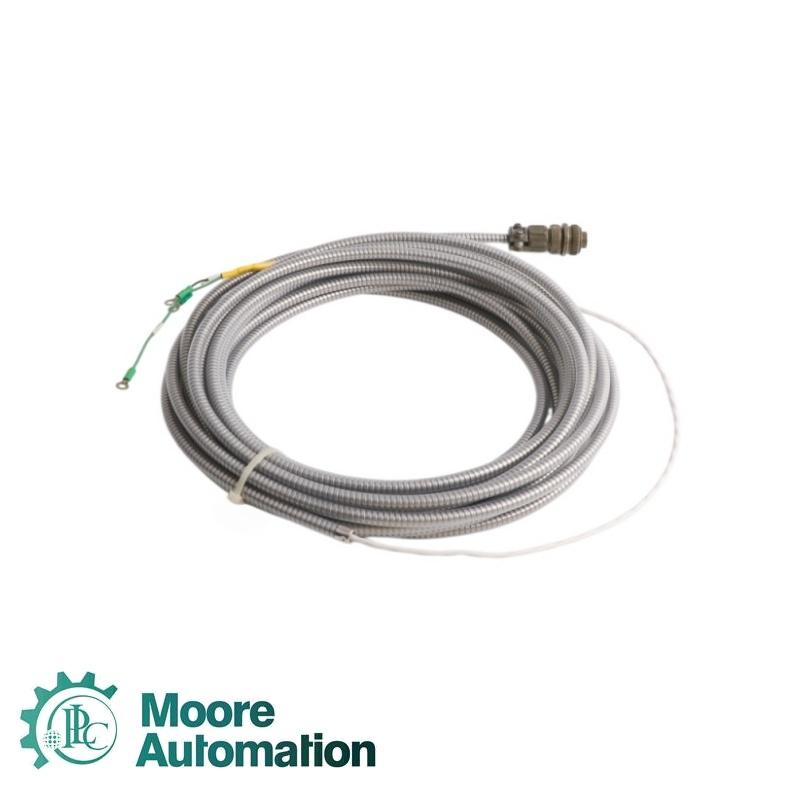

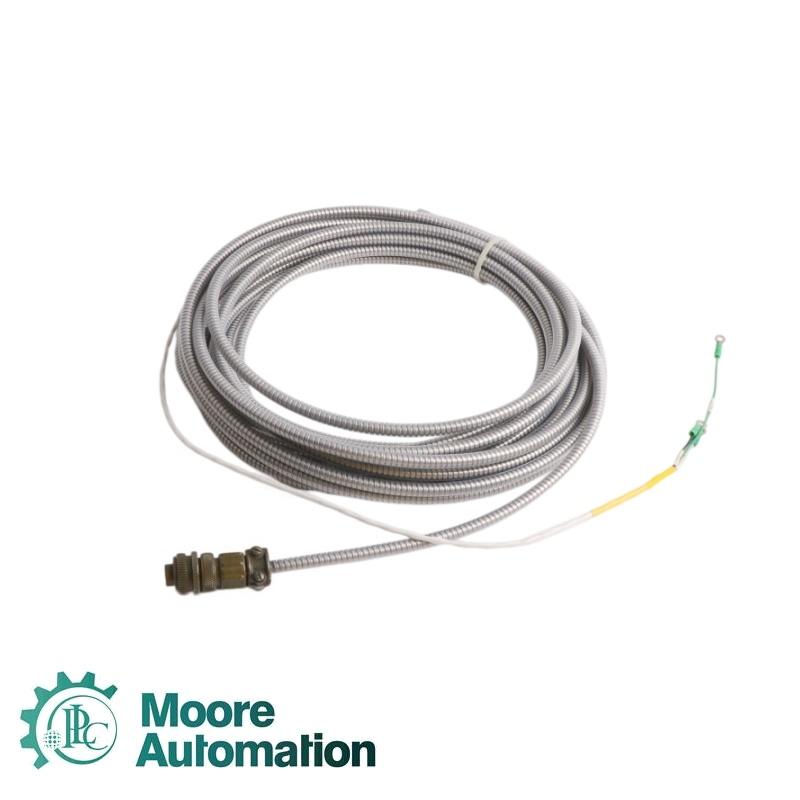

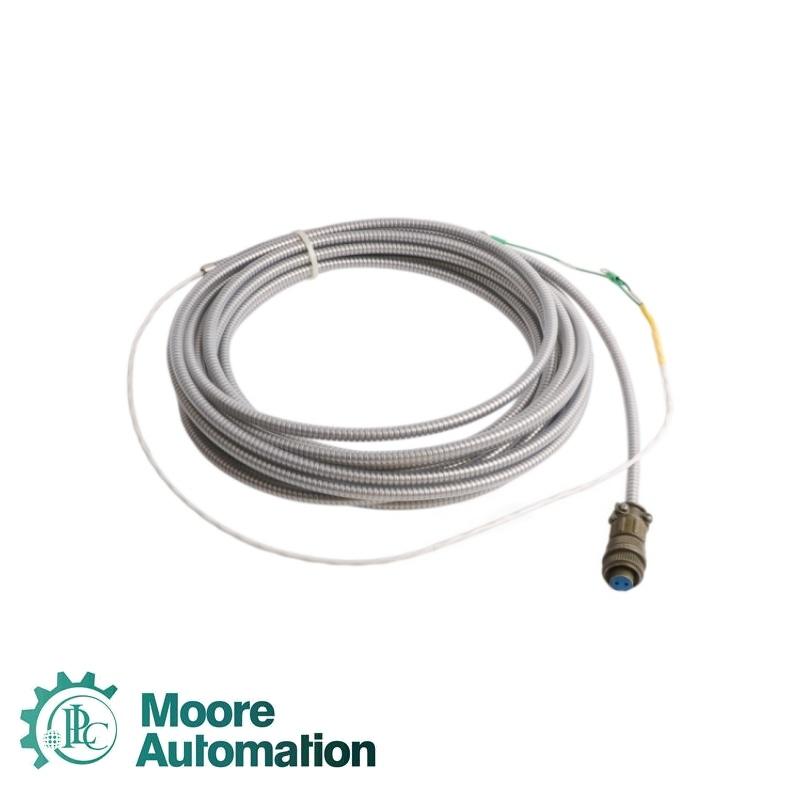

The 84510-30 is a 30 ft (9.0 m) armored interconnection cable from the high-temperature cable group documented for Seismoprobe velocity transducer systems. It uses two shielded 22 AWG conductors, a two-socket female connector at one end and terminal lugs at the other.
Part number84510-30
Ordering pattern84510-NN
Length-code basisNN specifies cable length in feet
Product groupHigh-temperature interconnection cable
Ordered length30 ft (9.0 m)
Number of conductors2
ShieldingShielded
ArmorArmored
Wire gauge22 AWG
Conductor cross-section0.5 mm²
Connector end2-socket female connector
Lug endTerminal lugs
Minimum cable length3.0 ft (0.9 m)
Maximum cable length70 ft (21 m)
Custom length increment1 ft
Documented system family9200 and 74712 Seismoprobe
Application Industry
01
Bearing-housing vibration loopsRoutes the two-wire velocity signal in installations measuring absolute bearing-housing vibration.
02
Machine-casing monitoringProvides an armored connection between the documented velocity transducer and monitoring equipment.
03
Structural vibration measurementsSupports the signal path for absolute structural-vibration measurements.
04
Continuous and periodic measurementsConnects the documented transducer family to monitors or vibration data collectors.
FAQ
What is the configured length of 84510-30?
The length suffix specifies 30 ft, approximately 9.0 m. Confirm that this covers the complete installed route before ordering.
What conductor construction is used in 84510-30?
The cable has two shielded 22 AWG (0.5 mm²) conductors inside an armored construction.
How are the two ends of 84510-30 terminated?
One end has a two-socket female connector and the other end has terminal lugs.
What ordering-length limits apply to the 84510-30 cable family?
The documented range is 3.0 to 70 ft, with custom lengths ordered in one-foot increments.
What should be verified before installing 84510-30?
Confirm the required route length, mating connector, terminal-lug wiring, armor condition and the applicable transducer-system drawing.
