 Bently Nevada 330104-08-13-10-01-05 3300 XL 8 mm Armored Proximity Probe
330104-08-13-10-01-05 330104-08-13-10-01-05 330104-08-13-10-01-05

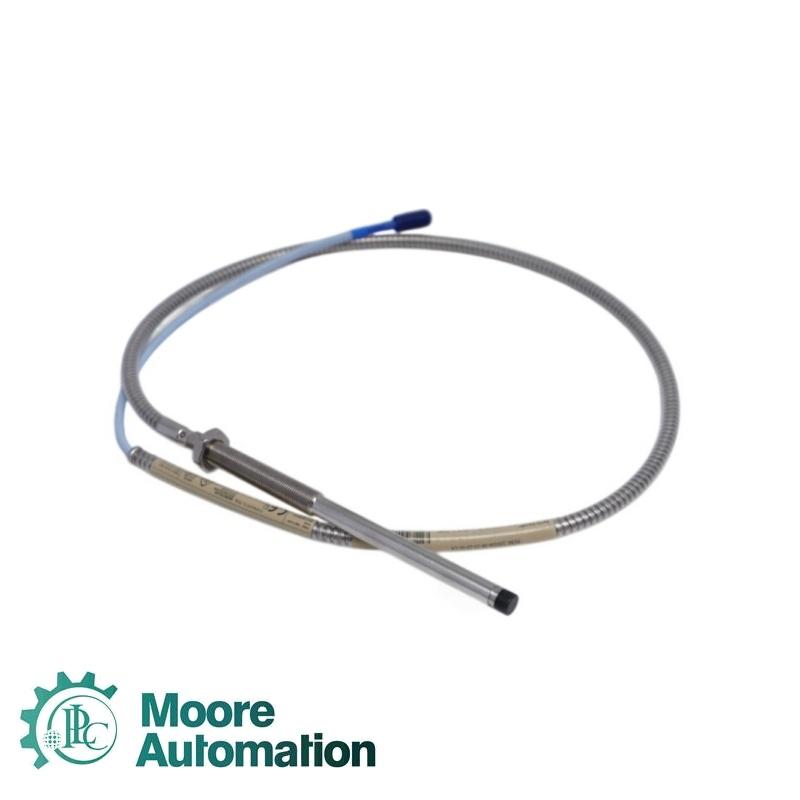

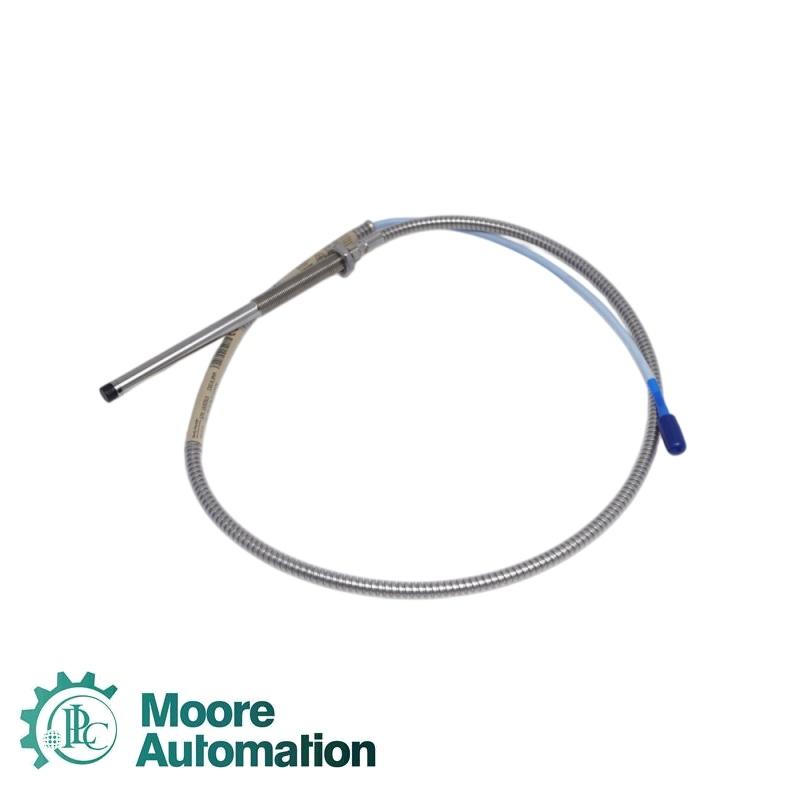

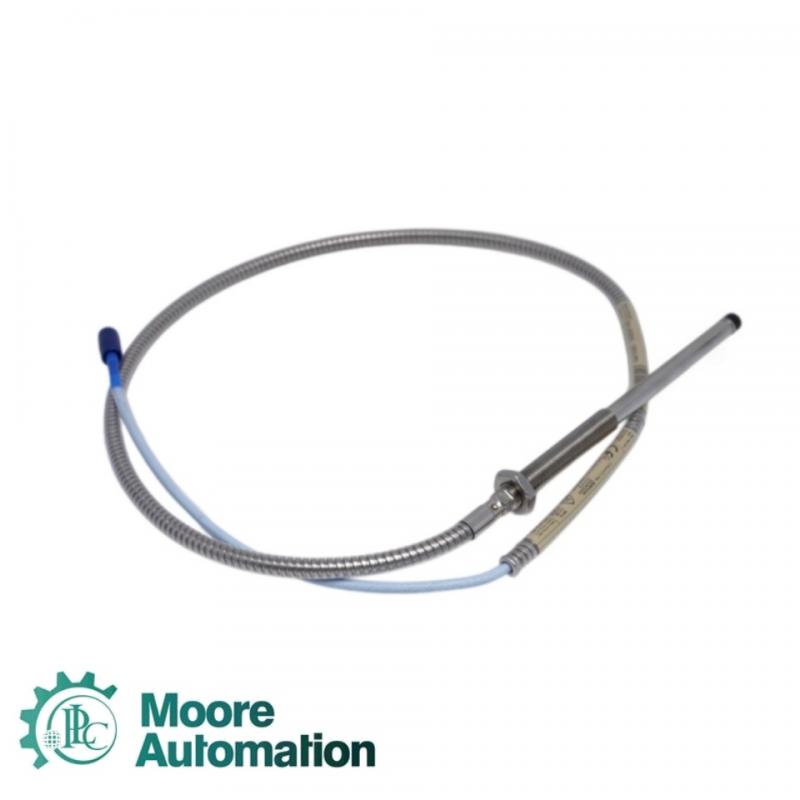

Bently Nevada 330104-08-13-10-01-05 3300 XL 8 mm Armored Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The 330104-08-13-10-01-05 is a metric, armored 8 mm proximity probe for the 3300 XL proximity transducer system. It has an M10 × 1 thread, an 80 mm unthreaded length, 130 mm overall case length, 1.0 m total length, a protected ClickLoc connector with standard cable, and the CSA, ATEX and IECEx approval option.
Probe diameter8.0 mm (0.31 in)
Mounting threadM10 × 1
ArmorIncluded
Unthreaded length80 mm
Overall case length130 mm
Total length1.0 m (3.3 ft)
ConnectorMiniature ClickLoc coaxial
Connector protectorIncluded
Cable typeStandard
Approval optionCSA, ATEX and IECEx
Application Industry
01
Compact turbine locationsProvides an 80 mm unthreaded reach for metric probe installations with limited case depth.
02
Centrifugal compressorsMeasures shaft vibration or position through a matched eddy-current transducer system.
03
Pump bearing assembliesSupports permanent non-contacting shaft monitoring on suitable fluid-film bearing pumps.
04
Phase-reference pointsCan be installed for Keyphasor or speed duties when clearances and system length are correct.
FAQ
How much mounting clearance is required for 330104-08-13-10-01-05?
Allow for an 80 mm unthreaded section, a 130 mm case and the connector bend radius when planning the installation.
What is included in the connector option of 330104-08-13-10-01-05?
The option provides a miniature ClickLoc coaxial connector, connector protector and standard cable.
Is the cable on 330104-08-13-10-01-05 mechanically protected?
Yes. The metric probe base configuration includes armor around the cable.
Which approval selection is used by 330104-08-13-10-01-05?
The final suffix selects the CSA, ATEX and IECEx approval option; follow the relevant hazardous-area installation drawing.
Which components must be matched with 330104-08-13-10-01-05?
Use compatible 8 mm extension-cable and Proximitor components whose combined electrical length equals the specified system length.
