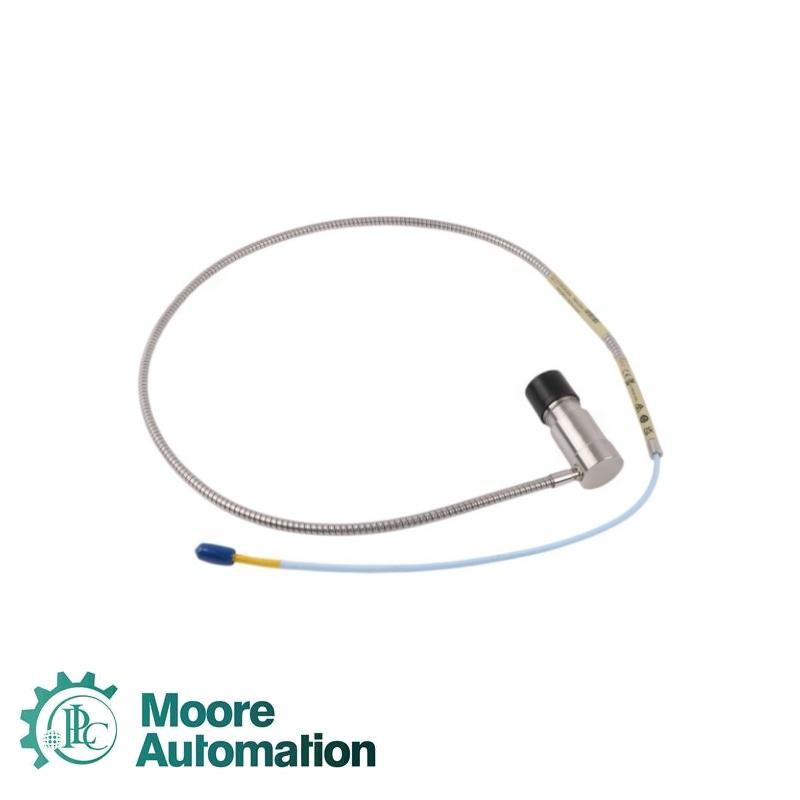

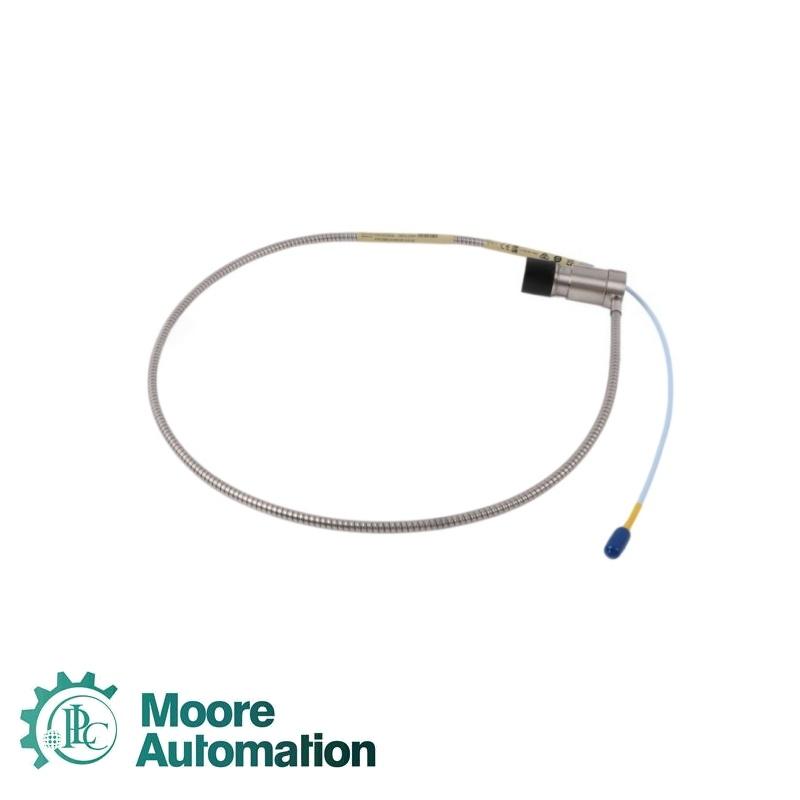

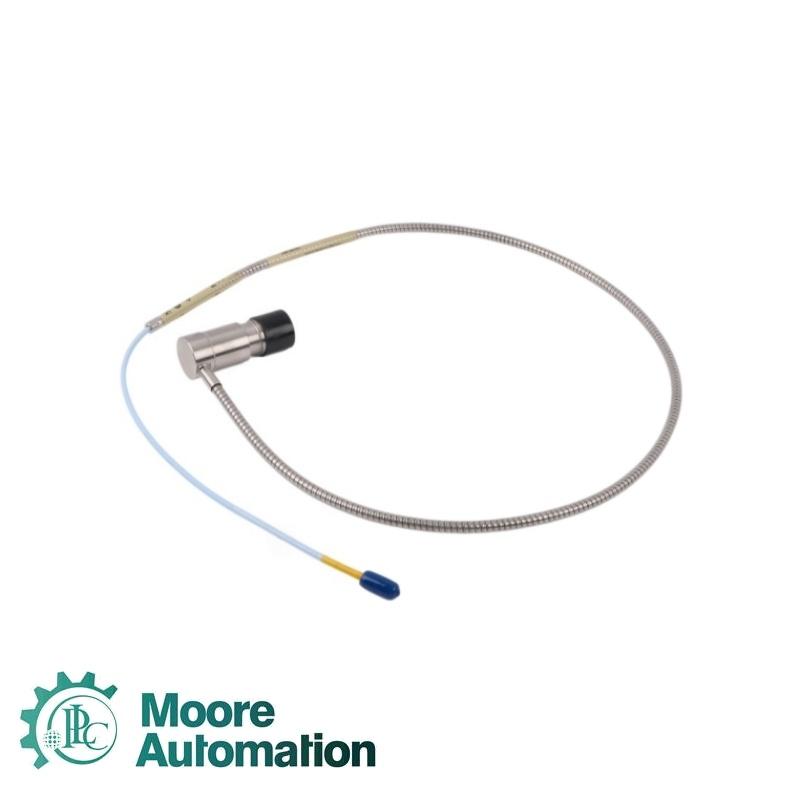

Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Armored Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The 330851-04-000-030-10-01-05 is a 3300 XL 25 mm proximity probe with a smooth 1.06 in diameter side-exit case, 0.0 in unthreaded length, 3.0 in overall case length, 1.0 m total length, stainless-steel armor and the multiple-approvals option.

Product family3300 XL 25 mm proximity probe

Case styleSmooth 1.06 in diameter, side exit

Unthreaded length0.0 in

Overall case length3.0 in

Total probe length1.0 m (3.3 ft)

Armor optionStainless-steel armor

Approval optionMultiple approvals (05)

Probe cable75 Ω triaxial PFA-insulated FluidLoc

Probe tip materialPEEK

Probe case materialAISI 304 stainless steel

Armor materialFlexible AISI 302 SST with PFA outer jacket

Minimum bend radius25.4 mm (1.0 in)

Probe dc resistance6.2 ± 0.5 Ω at 1.0 m

Probe temperature range-35°C to +200°C

Short-term temperature+250°C maximum, less than 24 hours

System linear range12.7 mm (500 mils)

System scale factor0.787 V/mm (20 mV/mil) nominal

Recommended flat target61 mm (2.4 in) diameter minimum

Application Industry

Steam-turbine differential expansionMeasures relative axial growth between the rotor and casing in mid-size to large turbine generators.

Redundant collar measurementSupports two probes observing the same side of a collar for redundant differential-expansion measurements.

Complementary-input measurementSupports opposite-side collar measurements that extend the measurable differential-expansion range.

Ramp-target measurementSupports two-probe arrangements that compensate for radial movement while measuring axial travel.

FAQ

What case geometry does 330851-04-000-030-10-01-05 specify?

It uses a smooth 1.06 in diameter side-exit case, 0.0 in unthreaded length and 3.0 in overall case length.

Which components must be matched with 330851-04-000-030-10-01-05?

The probe, extension cable and signal conditioner must belong to the same 25 mm transducer system and have a matching total system length.

What cable bend radius should be maintained for 330851-04-000-030-10-01-05?

Maintain a minimum bend radius of 25.4 mm (1.0 in), whether or not stainless-steel armor is fitted.

What temperature limits apply to 330851-04-000-030-10-01-05?

The documented operating and storage range is -35°C to +200°C, with +250°C allowed for less than 24 hours.

What target conditions support verification of 330851-04-000-030-10-01-05?

Use the specified AISI 4140 steel target at least 61 mm in diameter and a 7.0 mm gap for datasheet performance verification.
