Bently Nevada 3500/22M 138607-01 Transient Data Interface Module

Bently Nevada 3500/22M 138607-01 Standard Transient Data Interface Module

The 138607-01 TDI connects a Bently Nevada 3500 machinery protection rack with System 1 condition monitoring software and 3500 System Configuration software. It combines rack interface functions with steady-state and transient data collection.

Lifecycle note: 138607-01 is a legacy standard TDI main-module part number. Current 3500/22M documentation lists 288055-01 as the standard spare. Confirm rack hardware, firmware and I/O-module compatibility before replacement.

Item NO.:
3500/22M 138607-01
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
Availability on request

Product Detail

BENTLY NEVADA 3500 MACHINERY MONITORING

3500/22M 138607-01 Transient Data Interface

A standard TDI main module for rack communication, configuration access and collection of steady-state and transient machinery data.

10.5 WPower consumption

Slot 1Rack position

48Maximum waveform channels

95%Non-condensing humidity

Product Overview

The Bently Nevada 3500/22M 138607-01 is a standard Transient Data Interface main module for the 3500 machinery protection and condition monitoring system. It provides the communication path between the rack and compatible software, including System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software.

The TDI combines the rack-level interface functions of the earlier 3500/20 Rack Interface Module with the data-collection capability of a communication processor. It collects steady-state values from the rack and can also capture dynamic and high-resolution transient data when the required Channel Enabling Disk is installed. The module is not part of the critical automatic machinery protection path, so normal monitor protection functions remain independent of the TDI.

Key Functions

Rack communication

Connects the 3500 rack with configuration, display and condition monitoring software through the selected Ethernet I/O module.

Transient data collection

Supports startup, coastdown, alarm and waveform data acquisition for machinery diagnostics when dynamic channels are enabled.

Local configuration access

Provides a front USB-B service port, rack reset control, address setting and a keyed RUN/PROGRAM configuration switch.

Technical Specifications

Manufacturer	Bently Nevada
Part number	138607-01
Product family	3500/22M Transient Data Interface
Module type	Standard TDI main module
Rack position	Slot 1, adjacent to the power supplies
Power consumption	10.5 W
Front service interface	USB-B, BN Host Protocol, up to 115.2 kbaud
Ethernet communication	10Base-T/100Base-TX or 100Base-FX, determined by the separate rear I/O module
Supported host protocols	BN Host Protocol and BN TDI Protocol over Ethernet TCP/IP
Static data capture	Standard
Dynamic data capture	Requires the appropriate 3500/09 Channel Enabling Disk
Waveform capacity	Up to 48 channels
Keyphasor support	Four 3500 system Keyphasor signals
Operating temperature	−30°C to +65°C (−22°F to +149°F)
Storage temperature	−40°C to +85°C (−40°F to +185°F)
Humidity	95%, non-condensing
Main-module dimensions	241.3 × 24.4 × 241.8 mm
Main-module weight	Approximately 0.91 kg
Front status indicators	OK, TX/RX, TM and CONFIG OK

Technical reference: Baker Hughes Bently Nevada 3500/22M Transient Data Interface Module Datasheet 161581 Rev. AC. Specifications should be confirmed against the installed rack revision before ordering.

Data Collection Capability

Collects steady-state values measured by compatible 3500 monitor modules.
Supports startup and coastdown collection using programmable speed and time increments.
Stores pre-alarm and post-alarm static values and waveform data for event analysis.
Supports synchronous and asynchronous waveform sampling across enabled channels.
Transfers rack information to host software for trend, spectrum, orbit and diagnostic review.

Compatibility and Replacement Guidance

System compatibility: The TDI works with compatible M-series monitors, including 3500/40M and 3500/42M, and communicates with System 1 and 3500 System Configuration software.

Rear I/O module: The 138607-01 is the main TDI module. Copper or fiber communication requires a compatible rear I/O module. Verify whether the I/O module and USB cable are included in the quotation.

Lifecycle status: 138607-01 is a legacy standard TDI part number. Current documentation identifies 288055-01 as the standard 3500/22M spare. Do not substitute it without checking firmware, I/O-module and rack compatibility.

Upgrade caution: When replacing a 3500/20 RIM with a 3500/22M TDI, remove both the old RIM and its rear I/O module before inserting the TDI I/O module and TDI. Leaving the RIM I/O installed can damage the TDI.

Frequently Asked Questions

What is the primary function of the 3500/22M 138607-01?

It connects the 3500 rack with compatible configuration and condition monitoring software while collecting steady-state and transient machinery data.

Where is the 3500/22M 138607-01 installed?

It occupies Slot 1 of a 3500 rack, directly next to the power supplies. Every rack requires either a compatible TDI or RIM in this position.

Does the 138607-01 include a rear Ethernet I/O module?

138607-01 identifies the standard TDI main module. The required copper or fiber rear I/O module should be checked separately in the quotation and against the installed rack.

Can the 138607-01 collect dynamic waveform data?

Yes, but dynamic and high-resolution transient channels require the appropriate 3500/09 Channel Enabling Disk. Static data capture is standard.

Is the 138607-01 part of the critical protection path?

No. The TDI supports rack-wide communication and data collection but does not affect the normal automatic machinery protection functions of the monitor modules.

What is the replacement for the 3500/22M 138607-01?

The current standard spare listed for the 3500/22M is 288055-01. Compatibility should be confirmed before replacement because the rear I/O module, firmware and installed monitor revisions may affect the upgrade.

Request price and availability

Send the exact part number, rack configuration and required quantity for a compatibility-focused quotation.

Email: sales3@askplc.com Tel (WhatsApp): +8618150117685

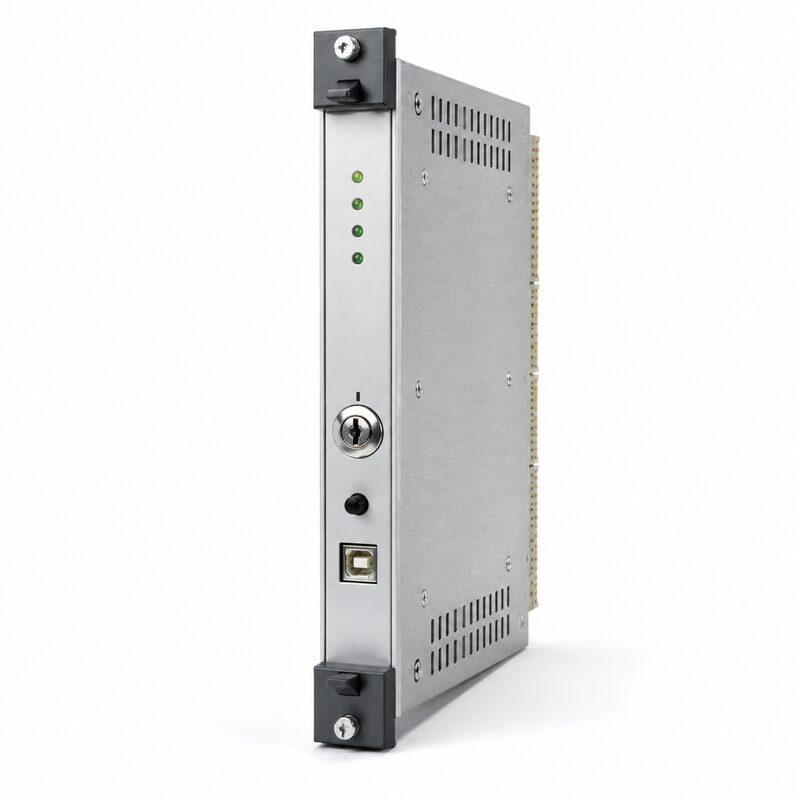

Product image is a product-family reference illustration. Trademarks and product names are used only for identification. Moore is not an authorized distributor or representative of the manufacturer.
