Product Summary

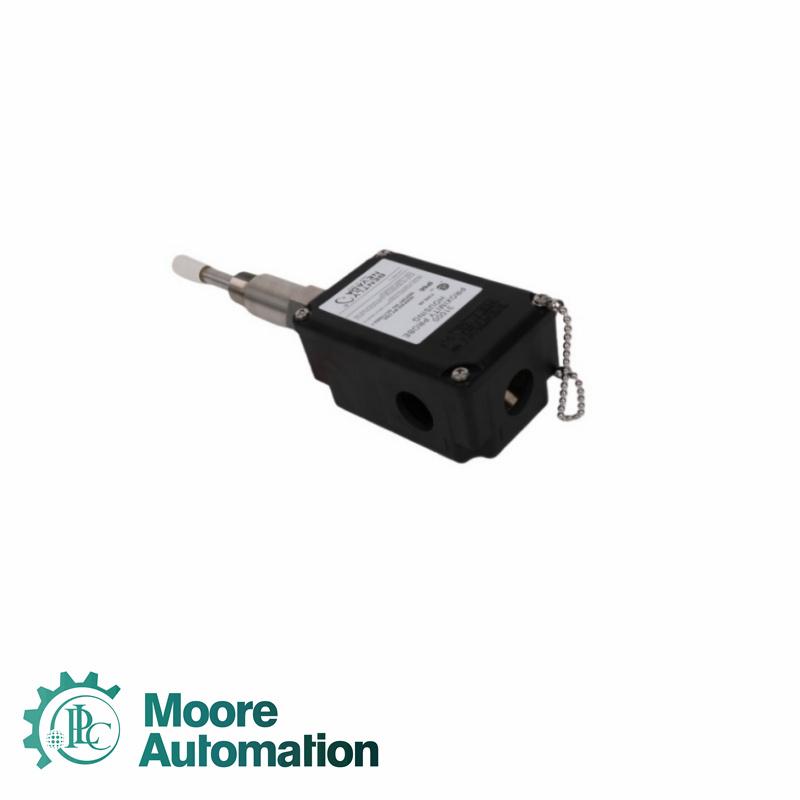

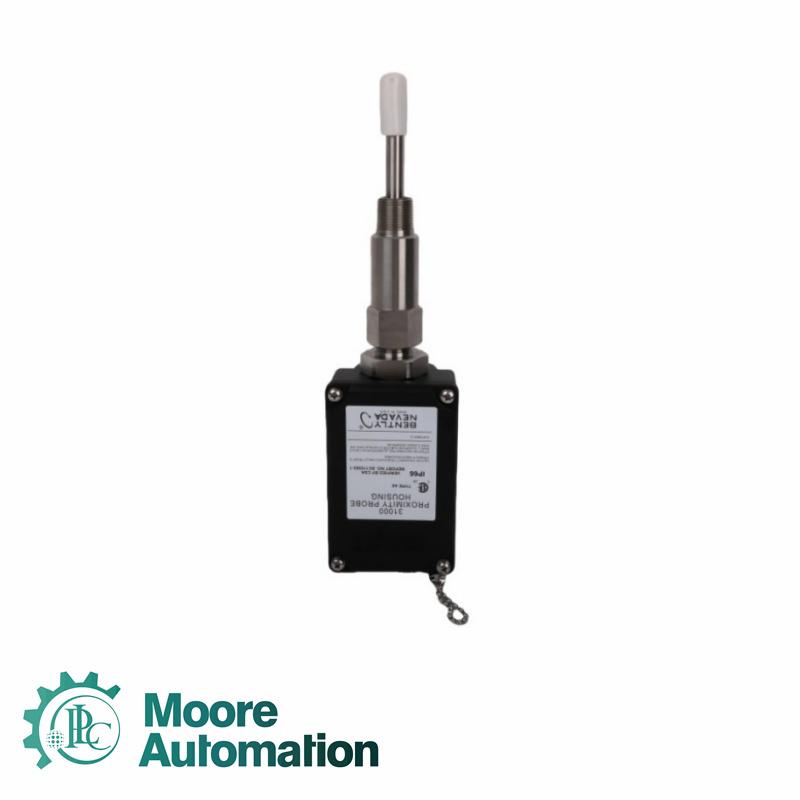

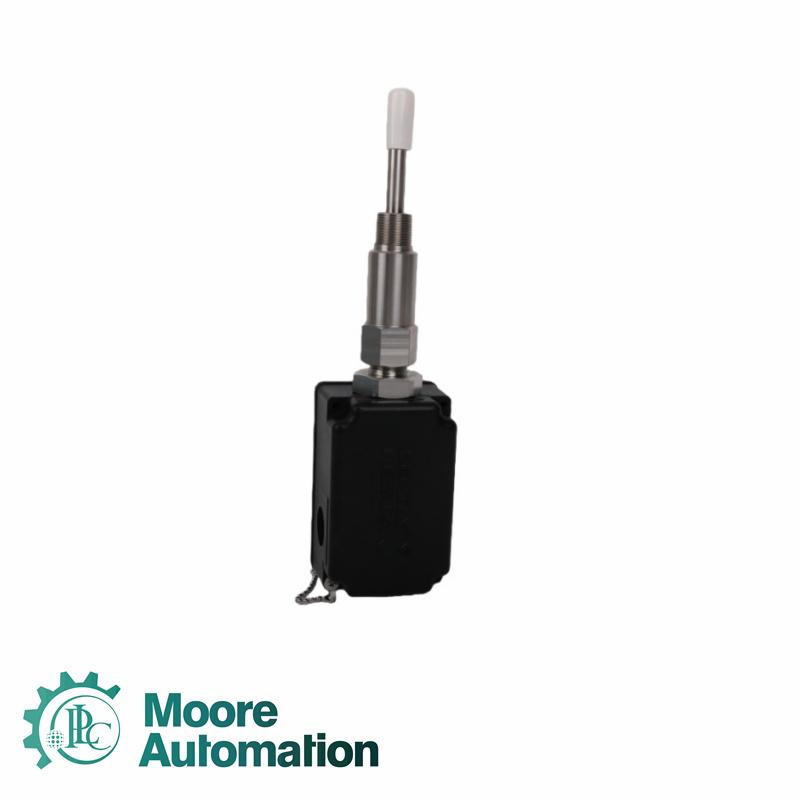

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.
|
Call for Pricing? |
|
|
Sale Manager: John Yang |
Email: sales3@askplc.com |
|
Mobile(WhatsApp): 86-18150117685 |
|
Full Details
|
Probe with Connector |
Probe not required |
|
Probe Cable Length |
Probe cable not required (Option A must also be 00) |
|
Standoff Adapter Length (Option C Dimension) |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension) |
5.0 in |
|
Fittings |
Two 3/4-14 NPT fittings, one plug |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option) |
|
Protection Ratings |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
O-Ring Material |
Neoprene |
|
Recommended Torque (Retaining Nut) |
29.4 N·m (260 in·lb) |
|
Housing Strength (Typical) |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Frequently Asked Questions
111
If You Choose Us！
1. We will provide you the product info and picture
2. Large stock, fast delivery
3. Competitive prices and immediate quotation
4. Professional service, professional technical support
5. Strict test machine before shipment.
6. We could help you to get any components which is difficult to get
Application
Chemical Plants: Externally corrosion-resistant mounted on pumps and machinery in chlor-alkali or ammonia units rich in acidic and alkaline gases, using the excellent chemical resistance of PPS material to protect shaft sensors.
Refineries: Externally installed on high-power pumps and machinery in highly corrosive petrochemical units such as hydrodesulfurization, isolating corrosive gases such as hydrogen sulfide from the internal displacement measurement system.
Coastal Nuclear Power Plants: Applied to circulating water pumps and feedwater pumps in the conventional island under humid, salt-laden coastal conditions, replacing traditional metal housings to prevent salt-spray corrosion and damage.
Desalination Plants: Sealed externally on the bearing housings of large high-pressure reverse-osmosis seawater pumps, providing comprehensive protection against long-term exposure to concentrated seawater spray and humid atmospheres.
Wastewater Treatment Plants: Externally corrosion-resistant mounted on aeration blowers and large sewage pumps operating in environments containing biogas and hydrogen sulfide, preventing external contaminants from penetrating the equipment due to vibration.
