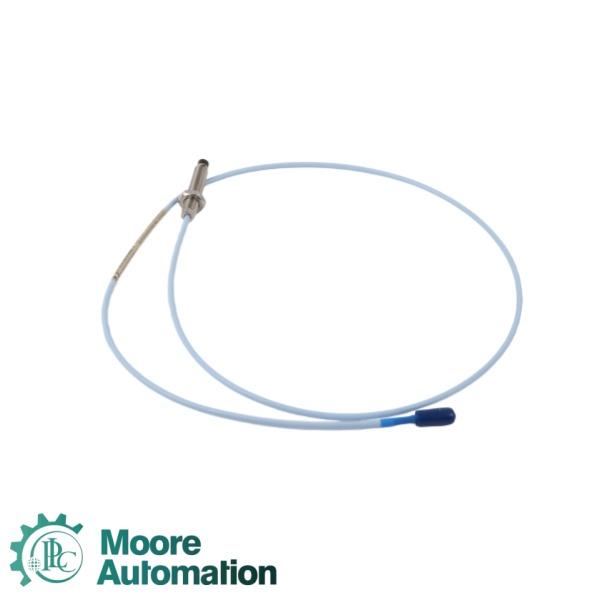

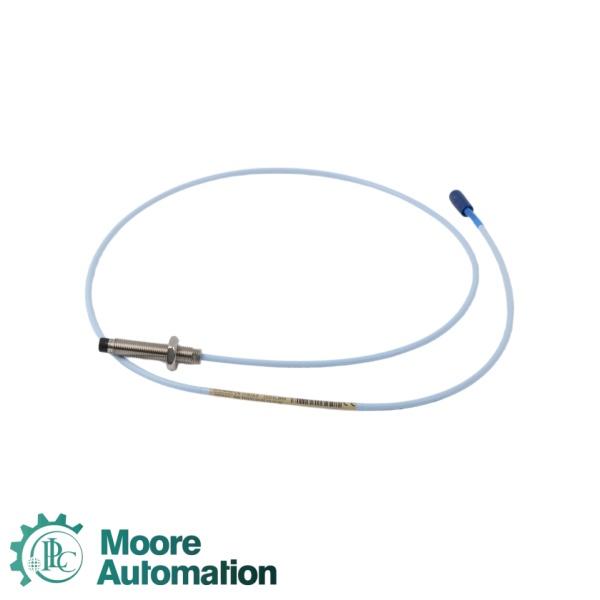

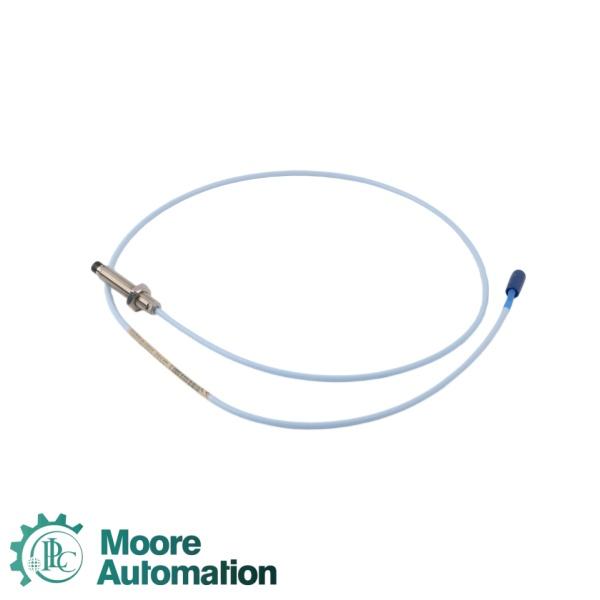

Bently Nevada 330105-XX-XX-10-02-CN MOD 165931-01 Reverse Mount Probes

Specifications

The Bently Nevada 330105-XX-XX-10-02-CN MOD 165931-01 is an industrial-grade, non-contact eddy current proximity probe configured for reverse-mount installations. Unlike standard proximity probes that screw directly into an external bracket, a reverse-mount probe is engineered to thread backwards through the machine casing or a specialized housing sleeve, positioning the probe tip inside the machine for direct access to the target shaft. Utilizing high-frequency eddy current principles, it provides static and dynamic displacement readings by evaluating distance variations between its polyphenylene sulfide (PPS) tip and a conductive steel target. It interfaces natively with a matching 3300 XL Proximitor sensor, outputting a highly linear voltage or current signal directly proportional to the gap distance to safely verify the health of rotating equipment.

Field Applications

· Internal Machine Casing Environments: Installed in locations where external adjustment is impossible or space is restricted, allowing the probe body to be locked externally while threading through the casing wall to monitor hidden bearings.

· Fluid-Film Bearing Vibration Tracking: Deployed inside large-scale industrial pumps, steam turbines, and centrifugal gas compressors to continuously track dynamic radial shaft vibration relative to the journal bearings.

· Axial Thrust Position Monitoring: Configured at the ends of high-speed machine rotors to record micro-inch changes in static shaft position, shielding thrust bearings from catastrophic structural face alignment failures.

· Keyphasor® Reference and Speed Sensing: Mounted adjacent to notched or keyed shafts to generate once-per-turn timing pulses, providing microsecond-accurate data loops for phase-locked vibration vector analysis and overspeed protection routines.

FAQ

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
