Product Overview

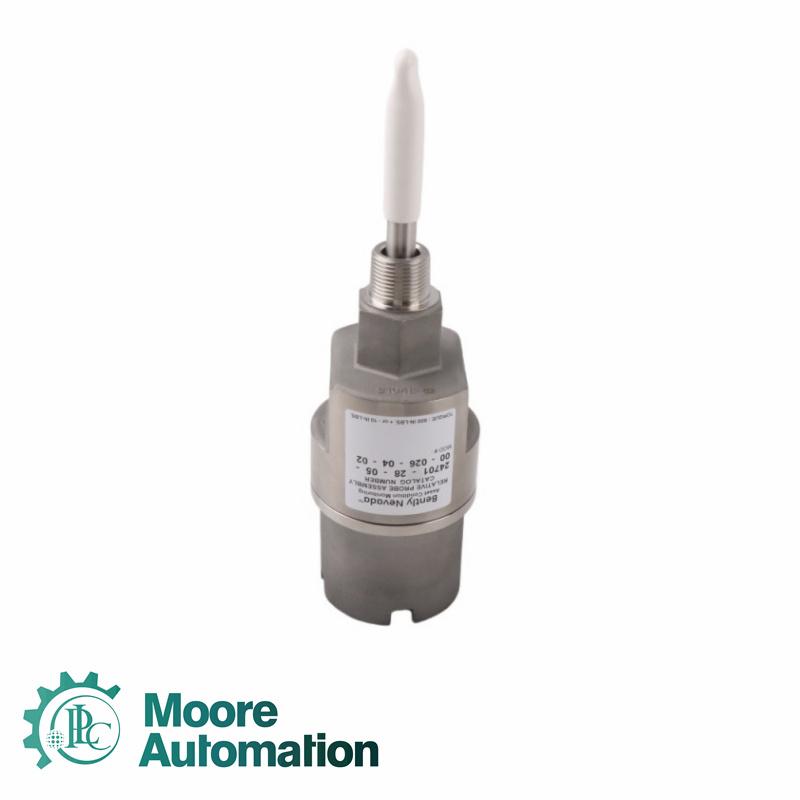

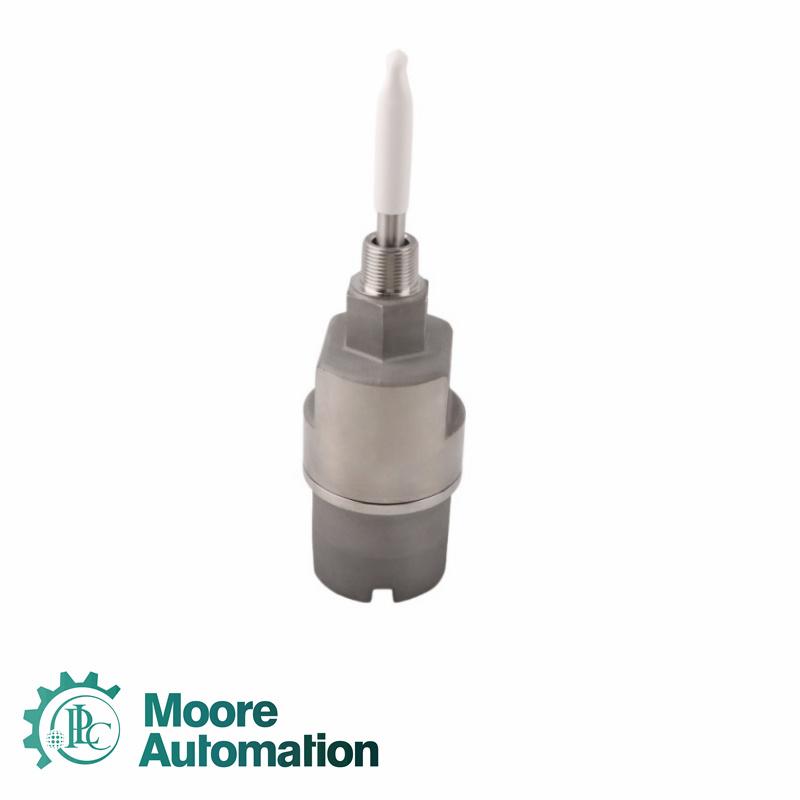

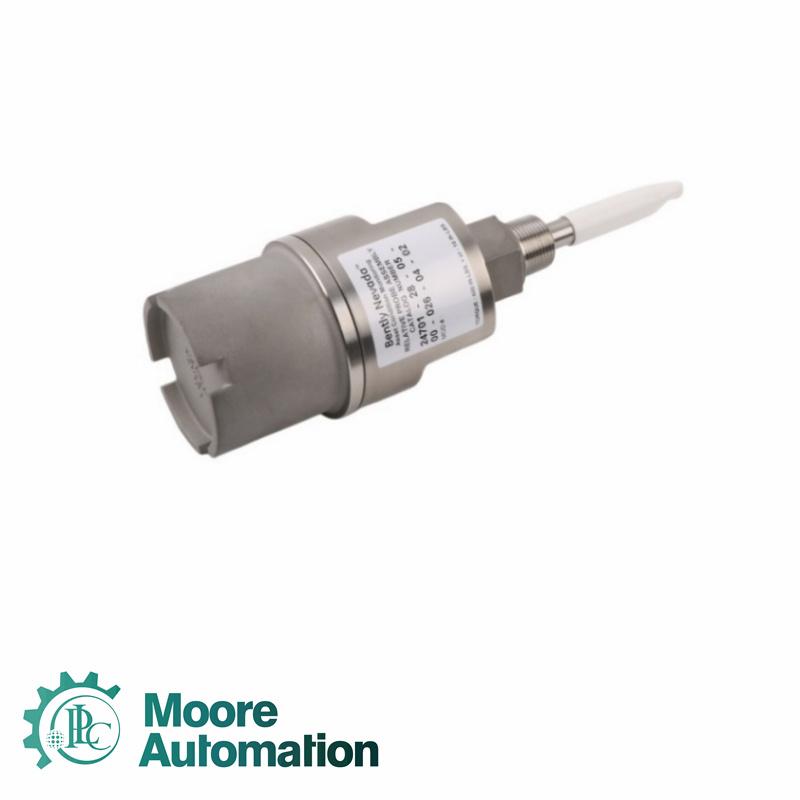

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing； Threaded ports for conduit connections； A probe sleeve of optional length； O-rings ；A reverse mount proximity probe； A thread seal； Optional conduit fittings； An optional standoff adapter.
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
Probe with Connector |
3300 XL series 8 mm probe |
|
Probe Cable Length |
20 in (0.5 m) |
|
Standoff Adapter Option (C Dimension) |
3.3 in |
|
Probe Penetration Option (D Dimension) |
3.0 in |
|
Fittings |
1 × 3/4-14 NPT plug only |
|
Mounting Thread |
3/4-14 NPT |
|
Dimensions |
26 x 7.8 x 7.8 cm |
|
Weight |
2.14 kg |
|
Material |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Typical, without fittings) |
1.1 kg (2.4 lb) |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 24701-16-05-033-04-02
Q: What probe specifications does the 24701-16-05-033-04-02 come with?
A: It includes a 3300 XL 8 mm probe with connector protector and a 0.5 m (20 in) cable.
Q: What are the penetration depth and adapter dimensions for the 24701-16-05-033-04-02?
A: It has a 3.3-inch base adapter and 3.0-inch probe penetration depth.
Q: What materials and weight does the 24701-16-05-033-04-02 have?
A: It uses an aluminum body with a 304 stainless steel sleeve, weighing about 2.14 kg total (1.1 kg without accessories).
Q: How does the 24701-16-05-033-04-02 ensure sealing under vibration?
A: It uses a 3/4-14 NPT thread and metal plug for tight sealing and vibration resistance.
Application
Natural gas processing plants: Used to protect shaft vibration probes installed on large turbine compressors against high-frequency vibration and flammable gas environments.
Oil refineries: Provide robust explosion-proof and chemical corrosion-resistant barriers for eddy current sensors in critical components such as catalytic cracking units.
Combined cycle power plants: Deployed at the bearing housings of gas turbines and steam turbines, supporting non-contact displacement monitoring during operation.
Large paper mills: Used to monitor heavy-duty bearings in drying cylinders or press sections, protecting sensor connectors from corrosion caused by high humidity and high-temperature steam.
Mining and beneficiation plants: Prevents physical damage to precision probes from splashed gravel or slurry at vibration monitoring points in large mills or feeders.
